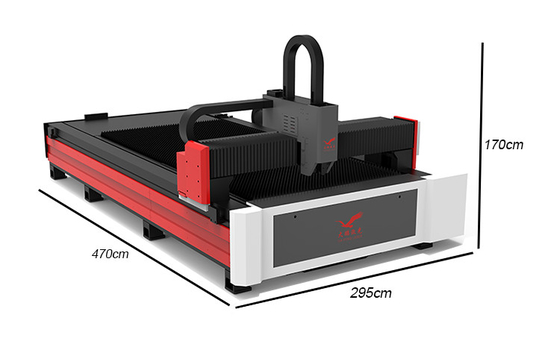

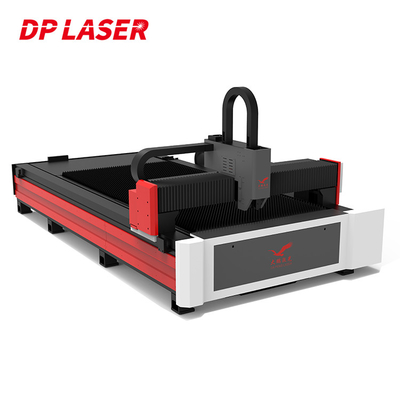

3015 1000W 1500W Mini Fiber Laser Cutting Machine For Iron Stainless Carbon Steel Aluminum Brass Metal Sheet
| Place of Origin | China |
|---|---|
| Brand Name | DP LASER |
| Certification | CE SGS FDA TUV ROHS |
| Model Number | Laser Cutting Machine |
| Minimum Order Quantity | 1 Set |
| Price | Please contact us |
| Packaging Details | Wooden boxes that meet international export standards |
| Delivery Time | 10-30 Work Days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 300 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Laser Source | Raycus Max IPG NLIGHT Optional | Laser Head | Raytools Precitec WSX OSPRI Optional |
|---|---|---|---|
| Control System | Cypcut Hypcut Beckhoff Optional | Laser Power | 1000W-20000W |
| Function | Cutting Metal Materials | Cutting Materials | Stainless Steel Carbon Steel Etc |
| Maximum Acceleration | 5.0G | Maximum Cutting Speed | 300m/min |
| Power Supply | 380V/50HZ | After-sales Service Provided | Overseas Engineers Provide Door-to-door Service |
| High Light | Mini 3015 Fiber Laser Cutting Machine,1500W Fiber Laser Cutting Machine,3015 1500w laser cutting machine |
||
Product Description
Low Price 3015 1000W 1500W Iron Stainless Carbon Steel Aluminum Brass Metal Sheet Mini Fiber Laser Cutting Machine Price
Basic introduction
Gantry rack dual-drive fiber laser cutting machine CMH1530C-G-E is mainly used in sheet metal processing, aviation, aerospace, electronics, electrical appliances, subway accessories, automobiles, machinery, precision accessories, ships, metallurgical equipment, elevators, household appliances, craft gifts, Tool processing, decoration, advertising, metal external processing and other manufacturing and processing industries.
Features
1.Gantry rack and double-drive structure, reinforced welding bed, large gantry precision milling, tempering and vibration aging to eliminate stress to ensure that the deformation tolerance of the machine tool is within ±0.02mm;
2.The beam is made by drawing process and finishing process, with light weight, high rigidity and good dynamic performance;
3.The cutting head adopts the leapfrog function, and the parabolic motion is adopted between the cutting contours, and the contour switching process automatically realizes the "leapfrog", which greatly improves the cutting efficiency;
4.With automatic centralized lubrication function, traditional components are automatically lubricated through system control without manual intervention, thereby ensuring the accuracy and service life of transmission components;
Features:
NO.1 Characteristics of our laser cutting machine
1. Integrated casting machine body with higher stability for higher precision
Application of gantry structure and integrated cast cross-girder to achieve higher rigidity, stability, shock resistance.
2. High-performance laser source and stable operating system which make the best cutting effect.
3. The machine owns perfect cooling system, lubrication system and dust removal system, to ensure that it can operate stably, efficiently and durably.
4. The machine is capable of automatic height adjustment to maintain constant focal length and stable cutting quality.
5. The machine is used for cutting a variety of metals with excellent and stable cutting quality.
6. The specialized CAD / CAM automatic programming software and automatic nesting software aim to maximally save raw materials.
7. Access to the CNC system through Ethernet interface makes communication and remote monitoring possible during the laser cutting process. owns perfect cooling system, lubrication system and dust removal syst
| Working Area | 2500*1300 | 3000*1500 | 4000*1500 | 4000*2000 | 6000*1500 |
| X/Y Axis Positioning Accuracy | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm |
| X/Y Axis Repositioning Accuracy | ±0.02mm | ±0.02mm | ±0.02mm | ±0.02mm | ±0.02mm |
| Max. Moving Speed | 150m/min | 150m/min | 150m/min | 150m/min | 150m/min |
| Max.Acc Speec | 1.5G | 1.5G | 1.5G | 1.5G | 1.5G |
| Laser Power | 1000W-1500W | 1000W-6000W | 1500W-6000W | 1500W-6000W | 1500W-6000W |
| Laser Source | RAYCUS IPG nLIGHT MAX (Optional) | ||||
| Laser Cutting Head | PRECITEC RAYTOOLS WSX OSPRI (Optional) | ||||
| Working Area | 6000*2000 | 6000*2500 | 8000*2500 | 10000*2500 | 12000*2500 |
| X/Y Axis Positioning Accuracy | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm |
| X/Y Axis Repositioning Accuracy | ±0.02mm | ±0.02mm | ±0.02mm | ±0.02mm | ±0.02mm |
| Max. Moving Speed | 300m/min | 300m/min | 300m/min | 300m/min | 300m/min |
| Max.Acc Speec | 5.0G | 5.0G | 5.0G | 5.0G | 5.0G |
| Laser Power | 3000W-12000W | 3000W-20000W | 6000W-20000W | 6000W-20000W | 6000W-20000W |
| Laser Source | RAYCUS IPG nLIGHT MAX (Optional) | ||||
| Laser Cutting Head | PRECITEC RAYTOOLS WSX OSPRI (Optional) | ||||
The metal laser cutting machine adopts a reinforced welding bed, which undergoes tempering treatment and vibration aging treatment to eliminate stress, and then performs fine milling processing on a large-scale gantry milling machine to ensure long-term stability and no deformation of the machine tool. It is equipped with high-performance original packaged fiber lasers with stable performance. , The service life can reach 100,000 hours. It adopts imported guide drive and servo motor, and can use auxiliary gas (oxygen, argon, nitrogen) to cut various metal sheets, easy to operate, high precision, high speed and high efficiency.
Application industry
Widely used in kitchen appliances, sheet metal chassis cabinets, mechanical equipment, electrical equipment, lighting hardware, advertising signs, auto parts, display equipment, various metal products, sheet metal cutting and other industries. It can cut various metal plates and pipes, mainly used for rapid cutting of stainless steel, carbon steel, manganese steel, galvanized sheet, various alloy sheets, rare metals and other materials.
