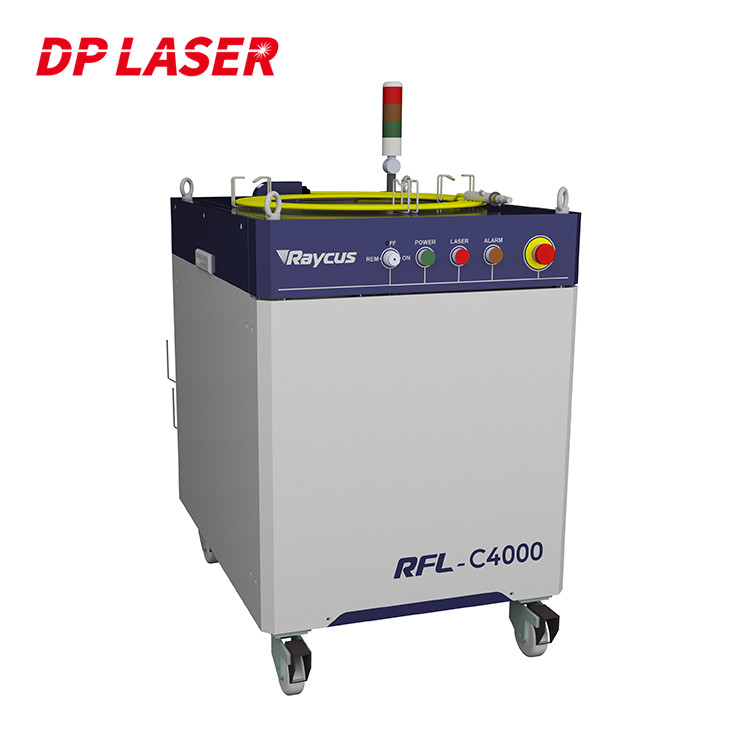

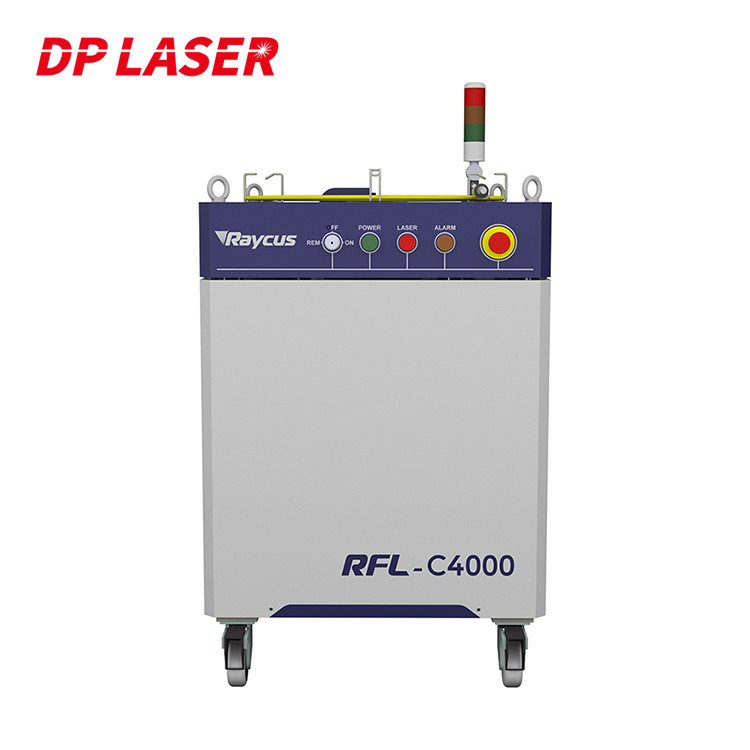

RFL-C4000S Fiber Laser Power Source 4KW Raycus Single Mode

  • RFL-C4000S Fiber Laser Power Source 4KW Raycus Single Mode
  • RFL-C4000S Fiber Laser Power Source 4KW Raycus Single Mode
Place of Origin China
Brand Name Raycus
Certification CE SGS FDA TUV ROHS
Model Number RFL-C4000
Minimum Order Quantity 1 Set
Price Please contact us
Packaging Details Wooden boxes that meet international export standards
Delivery Time 7-15 Work Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 300 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Fiber Laser Source Keywords Laser Cutting Spare Parts
Brand Raycus Application Metal Cutting
Laser Type Fiber Laser Power 4000W
Used For Fiber Laser Cutting Machine Control System Wooden Case
MOQ 1 Set After-sales Service Provided Overseas Engineers Provide Door-to-door Service
High Light

Raycus fiber laser power source

,

fiber laser power source 4KW
Leave a Message
Product Description

Raycus RFL-C4000S 4000W 4KW Single Mode Laser Source For Fiber Laser Cutting Machine



Features

Raycus single-module 4000W laser has higher photoelectric conversion efficiency, better and more stable beam quality, and stronger anti-high-reflection ability. At the same time, the optimized second-generation optical fiber transmission system is introduced to ensure better cutting of thick plates. Stable and precise cutting results.



RFL-C4000S Fiber Laser Power Source 4KW Raycus Single Mode 0RFL-C4000S Fiber Laser Power Source 4KW Raycus Single Mode 1


Model RFL-C4000 RFL-C6000 RFL-C8000 RFL-C10000 RFL-C12000 RFL-C15000
Optical Properties

Output Power

(W)

 4000 6000 8000 10000 12000 15000

Wavelength

(nm)

 1080±5
Operation Mode CW/Modulate

Max.Modulation Frequency

(KHz)

 5 2
Output Power Stability ±1.4%
Red Laser Yes(0.5mW-1mW)
Output Characteristics
Beam Delivery Optics QBH(Customizable)

Output Fiber Diameter

(μm)

 100(Customizable)

BBP

(mm.mrad)

 ≤4.5 ≤5
Polarization State Random

Delivery Cable Length

(m)

 20(Customizable)
Electrical Characteristics
Power Supply 340-420(Three Phase-Five Wire Connect)

Power Range

(%)

 10%-100%
Other Characteristics

Dimensions

(mm)

 670×990×1160 900×960×1160 1200×960×1160 960×1600×1188

Weight

(KG)

 <280 <360 <400 <450 <500 <800
Cooling Water Cooling

Operating Temperature

(℃)

 10-40



RFL-C4000S Fiber Laser Power Source 4KW Raycus Single Mode 2
