3015 1000W Iron Aluminum Brass Metal Plate Mini Fiber Laser Cutting Machine

Place of Origin China
Brand Name DP LASER
Certification CE SGS FDA TUV ROHS
Model Number Laser Cutting Machine
Minimum Order Quantity 1 Set
Price Please contact us
Packaging Details Wooden boxes that meet international export standards
Delivery Time 10-30 Work Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 300 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Laser Source MAX Laser Power 1000W
Laser Type Fiber Laser Power Supply 380V/50HZ
Function Cutting Metal Materials Condition New
Laser Head WSX Control System Cypcut Hypcut Beckhoff
Cutting Area 3015 After-sales Service Provided Overseas Engineers Provide Door-to-door Service
Leave a Message
Product Description

3015 1000W Iron Aluminum Brass Metal Plate Mini Fiber Laser Cutting Machine



Basic introduction
The mini laser cutting machine is the energy released when the laser beam is irradiated on the surface of the workpiece to melt and evaporate the workpiece to achieve the purpose of cutting and engraving, with high precision, fast cutting, not limited to cutting pattern restrictions, automatic typesetting to save materials, The incision is smooth and the processing cost is low.



Features

1.Gantry rack and double-drive structure, reinforced welding bed, large gantry precision milling, tempering and vibration aging to eliminate stress to ensure that the deformation tolerance of the machine tool is within ±0.02mm;

2.The beam is made by drawing process and finishing process, with light weight, high rigidity and good dynamic performance;

3.The cutting head adopts the leapfrog function, and the parabolic motion is adopted between the cutting contours, and the contour switching process automatically realizes the "leapfrog", which greatly improves the cutting efficiency;

4.With automatic centralized lubrication function, traditional components are automatically lubricated through system control without manual intervention, thereby ensuring the accuracy and service life of transmission components.



Application industry

Widely used in kitchen appliances, sheet metal chassis cabinets, mechanical equipment, electrical equipment, lighting hardware, advertising signs, auto parts, display equipment, various metal products, sheet metal cutting and other industries. It can cut various metal plates and pipes, mainly used for rapid cutting of stainless steel, carbon steel, manganese steel, galvanized sheet, various alloy sheets, rare metals and other materials.

3015 1000W  Iron Aluminum Brass Metal Plate Mini Fiber Laser Cutting Machine 0



Features of our Laser Cutting Machines
1. Integrated casting machine body with higher stability for higher precision.
Application of gantry structure and integrated cast cross-girder to achieve higher rigidity, stability, shock resistance.
2. High-performance laser source and stable operating system which make the best cutting effect.
3. The machine owns perfect cooling system, lubrication system and dust removal system, to ensure that it can operate stably, efficiently and durably.
4. The machine is capable of automatic height adjustment to maintain constant focal length and stable cutting quality.
5. The machine is used for cutting a variety of metals with excellent and stable cutting quality.
6. The specialized CAD / CAM automatic programming software and automatic nesting software aim to maximally save raw materials.
7. Access to the CNC system through Ethernet interface makes communication and remote monitoring possible during the laser cutting process. owns perfect cooling system, lubrication system and dust removal syst.

3015 1000W  Iron Aluminum Brass Metal Plate Mini Fiber Laser Cutting Machine 1

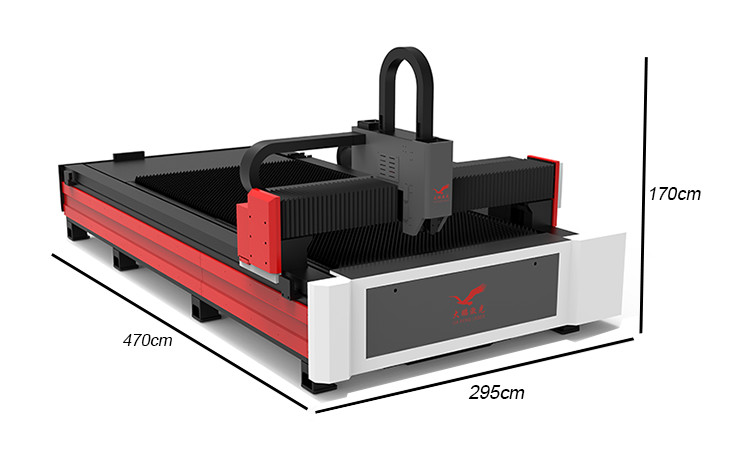

Model DPE-F3015A
Working Area 3000*1500
X/Y Axis Positioning Accuracy ±0.03mm
X/Y Axis Repositioning Accuracy ±0.02mm
Max. Moving Speed 100m/min
Max.Acc Speec 1.2G
Power Porection Grade IP54
Laser Power 1000W/1500W
Power Demand 380V/50Hz
Cooling Method Water Cooling
Continuous Working Time 24 Hours

The metal laser cutting machine adopts a reinforced welding bed, which undergoes tempering treatment and vibration aging treatment to eliminate stress, and then performs fine milling processing on a large-scale gantry milling machine to ensure long-term stability and no deformation of the machine tool. It is equipped with high-performance original packaged fiber lasers with stable performance. , The service life can reach 100,000 hours. It adopts imported guide drive and servo motor, and can use auxiliary gas (oxygen, argon, nitrogen) to cut various metal sheets, easy to operate, high precision, high speed and high efficiency.

3015 1000W  Iron Aluminum Brass Metal Plate Mini Fiber Laser Cutting Machine 23015 1000W  Iron Aluminum Brass Metal Plate Mini Fiber Laser Cutting Machine 3

3015 1000W  Iron Aluminum Brass Metal Plate Mini Fiber Laser Cutting Machine 4
