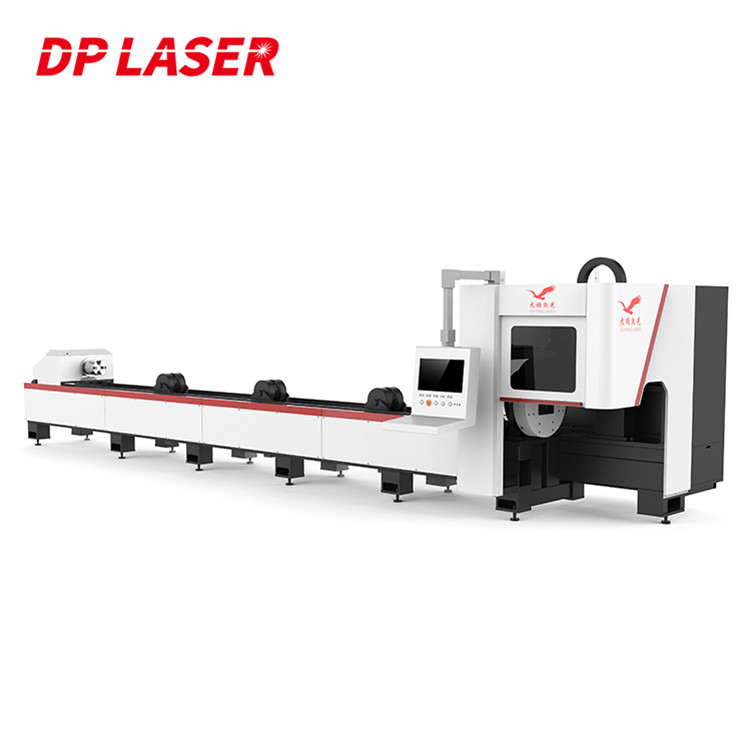

1000W 20000W Fiber Laser Tube Cutter Machine Metal Sheet Tube Integration

  • 1000W 20000W Fiber Laser Tube Cutter Machine Metal Sheet Tube Integration
  • 1000W 20000W Fiber Laser Tube Cutter Machine Metal Sheet Tube Integration
Place of Origin China
Brand Name DP LASER
Certification CE SGS FDA TUV ROHS
Model Number Laser Cutting Machine
Minimum Order Quantity 1 Set
Price Please contact us
Packaging Details Wooden boxes that meet international export standards
Delivery Time 10-30 Work Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 300 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Laser Source Raycus Max IPG NLIGHT Optional Laser Power 1000W-20000W
Power Supply 380V/50HZ Working Area 2500*1300
Feature SERVO-MOTOR Function Cutting Metal Materials
Maximum Acceleration 1.5G Configuration 4-axis
Weight (KG) 7000 KG Name Metal Sheet And Tube Integration Fiber Laser Cutting Machine
High Light

TUV Fiber Laser Tube Cutter Machine

,

SGS Fiber Laser Tube Cutter Machine

,

380V 50HZ Fiber Laser Tube Cutting
Leave a Message
Product Description

1000W 20000W Fiber Laser Tube Cutter Machine Metal Sheet Tube Integration



12025 1000W-20000W Metal Sheet And Tube Integration Fiber Laser Cutting Machine



Cutting Sheet Metal Parameters
Working Area 2500*1300 3000*1500 4000*1500 4000*2000 6000*1500
X/Y Axis Positioning Accuracy ±0.03mm ±0.03mm ±0.03mm ±0.03mm ±0.03mm
X/Y Axis Repositioning Accuracy ±0.02mm ±0.02mm ±0.02mm ±0.02mm ±0.02mm
Max. Moving Speed 150m/min 150m/min 150m/min 150m/min 150m/min
Max.Acc Speec 1.5G 1.5G 1.5G 1.5G 1.5G
Laser Power 1000W-1500W 1000W-6000W 1500W-6000W 1500W-6000W 1500W-6000W
Laser Source RAYCUS IPG nLIGHT MAX (Optional)
Laser Cutting Head PRECITEC RAYTOOL WSX OSPRI (Optional)

Working Area 6000*2000 6000*2500 8000*2500 10000*2500 12000*2500
X/Y Axis Positioning Accuracy ±0.03mm ±0.03mm ±0.03mm ±0.03mm ±0.03mm
X/Y Axis Repositioning Accuracy ±0.02mm ±0.02mm ±0.02mm ±0.02mm ±0.02mm
Max. Moving Speed 300m/min 300m/min 300m/min 300m/min 300m/min
Max.Acc Speec 5.0G 5.0G 5.0G 5.0G 5.0G
Laser Power 3000W-12000W 3000W-20000W 6000W-20000W 6000W-20000W 6000W-20000W
Laser Source RAYCUS IPG nLIGHT MAX (Optional)
Laser Cutting Head PRECITEC RAYTOOL WSX OSPRI (Optional)
Cutting Metal Tube Parameters
Model 6012 6016 6022 6032 6035 6040 6052
Outer Diameter Φ430 Φ590 Φ600 Φ760 Φ844 Φ950 Φ1140
Through Hole Diameter Φ130 Φ170 Φ225 Φ325 Φ365 Φ400 Φ520
Processing Range 10-120 10-160 15-218 15-320 20-350 20-400 20-508
Repositioning Accuracy ≤0.05 ≤0.05 ≤0.05 ≤0.05 ≤0.05 ≤0.10 ≤0.10
Rotation Accuracy ≤0.05 ≤0.05 ≤0.05 ≤0.05 ≤0.05 ≤0.10 ≤0.10
Minimum Clamping Wall Thickness ≥1 ≥1 ≥1 ≥1 ≥2 ≥3 ≥5
Rated Speed 150rmp 100rmp 150rmp 100rmp 50rmp 50rmp 50rmp




Features

The machine tool features a gantry type double rack and pinion with transmission via double servo motors, resulting in high torque and high inertia output that effectively improves production efficiency.

The equipment is equipped with several functions, including power failure memory, fallback cutting, fault automatic alarm, emergency shutdown, and automatic display of fault content.

The laser cutting head is equipped with an automatic focusing function that greatly shortens the perforation time compared to ordinary cutting heads, making it particularly suitable for high-speed cutting of thicker plates.

The pneumatic self-centering chuck allows for symmetrical independent double-action clamping, eliminating the need for manual intervention and adjustment during the clamping process.

The equipment is designed with surrounding outer protection for the safety of staff.

The professional laser cutting system is compatible with plate and pipe cutting processes and features graphic intelligent layout, automatic edge finding and positioning of the pipe center, and sharp corner smoothing.

The machine bed undergoes precision machining by a large gantry machining center and is annealed in a large gas-fired trolley-type heat treatment furnace to eliminate internal stress in the welding bed, ensuring higher precision and stability of the equipment.



Application industry

This equipment finds wide application across various industries, including kitchen appliances, sheet metal chassis cabinets, mechanical equipment, electrical equipment, lighting hardware, advertising signs, auto parts, display equipment, and other metal products. It is primarily used for the rapid cutting of various metal plates and pipes.

The equipment is highly versatile, capable of cutting stainless steel, carbon steel, manganese steel, galvanized sheet, various alloy sheets, rare metals, and other materials. Its cutting capabilities make it an ideal choice for sheet metal cutting and other applications.

1000W 20000W Fiber Laser Tube Cutter Machine Metal Sheet Tube Integration 0

1000W 20000W Fiber Laser Tube Cutter Machine Metal Sheet Tube Integration 1


The metal laser cutting machine adopts a reinforced welding bed, which undergoes tempering treatment and vibration aging treatment to eliminate stress, and then performs fine milling processing on a large-scale gantry milling machine to ensure long-term stability and no deformation of the machine tool. It is equipped with high-performance original packaged fiber lasers with stable performance. , The service life can reach 100,000 hours. It adopts imported guide drive and servo motor, and can use auxiliary gas (oxygen, argon, nitrogen) to cut various metal sheets, easy to operate, high precision, high speed and high efficiency.
