200Watt Water Chiller YAG Laser Welding Machine For Ring Bangle Bracelet Platinum
| Place of Origin | China |
|---|---|
| Brand Name | DP LASER |
| Certification | CE SGS FDA TUV ROHS |
| Model Number | Laser Welding Machine |
| Minimum Order Quantity | 1 Set |
| Price | Please contact us |
| Packaging Details | Wooden boxes that meet international export standards |
| Delivery Time | 7-15 Work Days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 300 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Laser Source | Raycus MAX IPG NLIGHT Laser Source | Laser Type | Nd:YAG |
|---|---|---|---|
| Application Material | Gold Silver Platinum Copper | Laser Power | 200W |
| Function | Jewelry Welding Products | Welding Mode | YAG Spot Welding |
| Laser Wavelength | 1064nm | Cooling System | Water Cooling |
| Power Supply | 110V/220V 50HZ | After-sales Service Provided | Overseas Engineers Provide Door-to-door Service |
| High Light | 200Watt YAG Laser Welding Machine,Platinum YAG Laser Welding Machine,200W jewellery spot welding machine |
||
Product Description

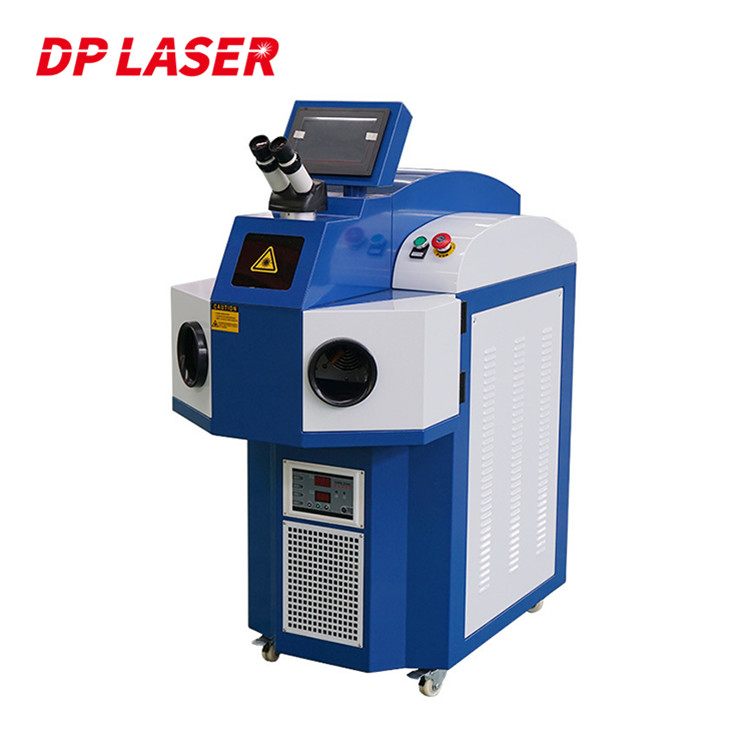

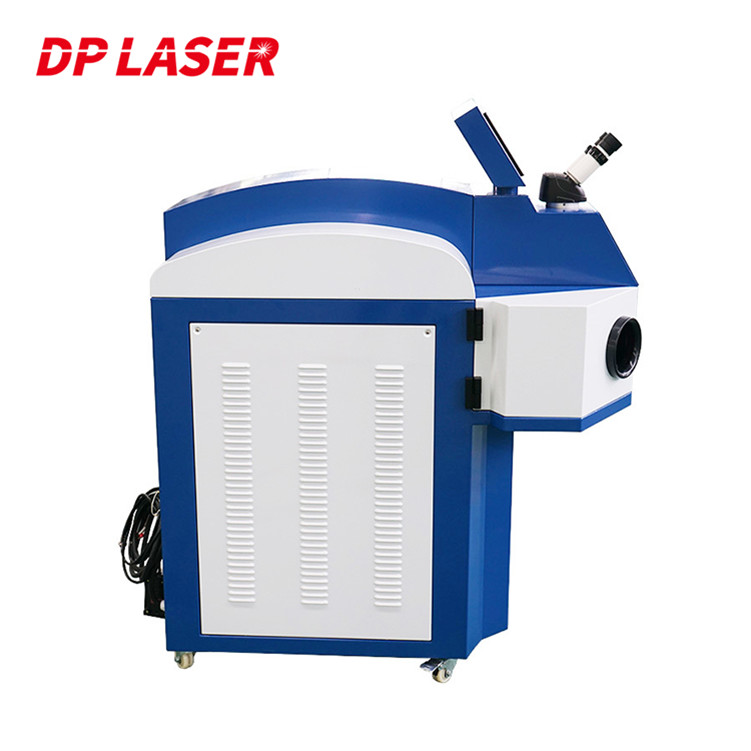

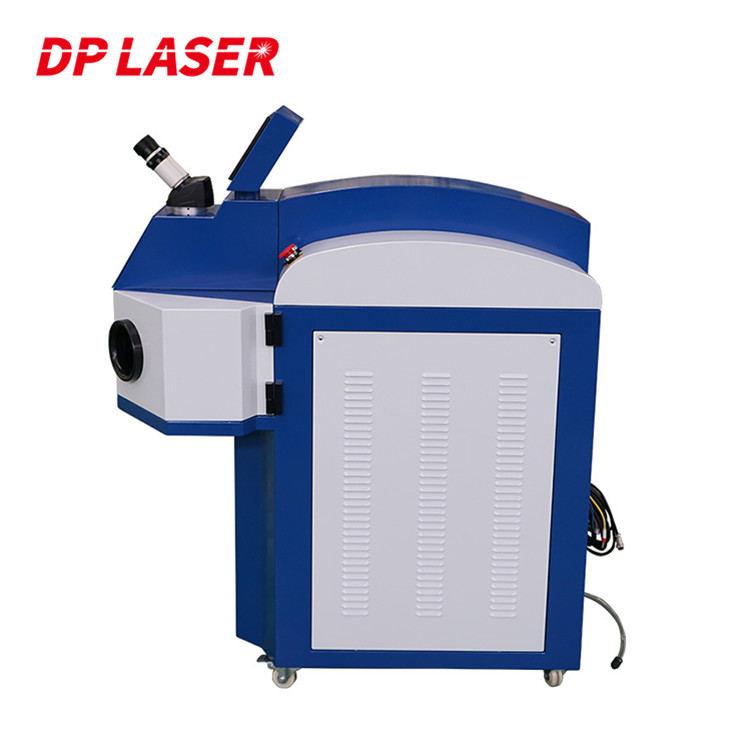

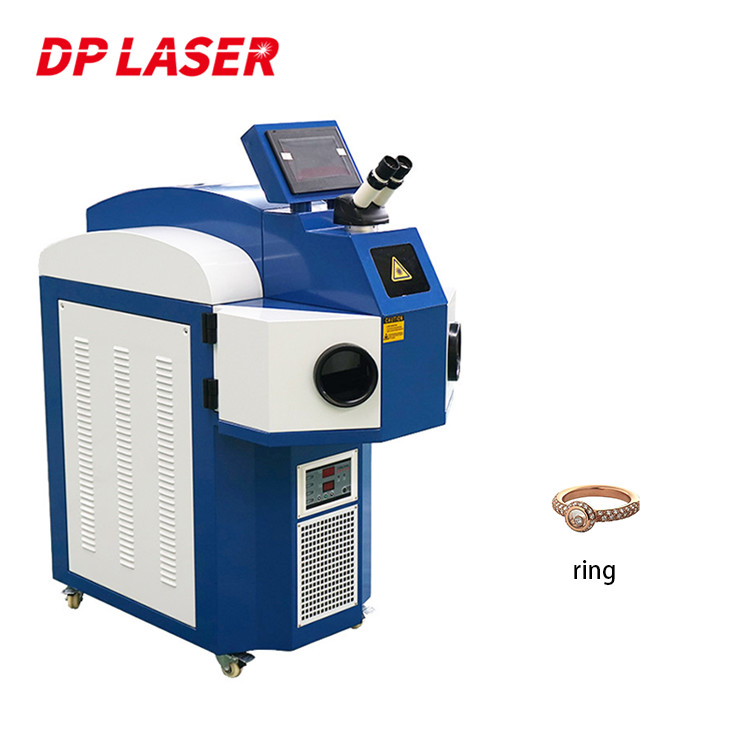

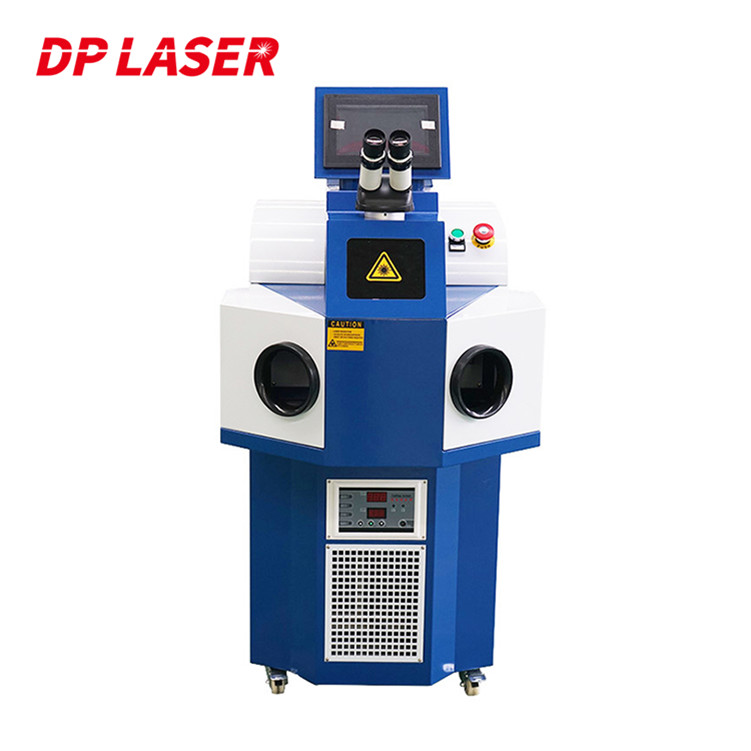

200W Built-in Water Chiller YAG Jewelry Laser Welding Machine For Ring Bangle Bracelet Platinum
Basic introduction
The jewelry laser welding machine uses high-energy laser pulses to locally heat and weld materials in a small area. It can weld different materials together, and has the advantages of corrosion resistance, high temperature resistance, high photoelectric conversion efficiency, and long life. The machine is loaded with a high-definition microscope observation system and a high-definition LED screen to ensure the aesthetics of the welding effect; the whole machine is ergonomically designed to work for a long time without fatigue. Wait.
Features
1. Compact design, saving space in the workshop or studio, and convenient transportation.
2. The microscope is displayed synchronously with the CCD, which is very convenient for observation.
3. The core components of the machine IGBT are imported from Germany.
4. The microscope adopts the best brand in China, which is 1.5 times the cost of other ordinary microscopes.
5.Color touch screen, friendly human-computer interface.
| Model | DPH-200SS-YAG-W |
| Laser wavelength | 1064nm |
| Condenser reflector | Imported ceramic condensing cavity |
| Maximum laser power | 200W |
| Voltage | 380V three-phase / 220V single-phase (Voltage transformer is needed if for 110v) |
| Pulse width | 0-20ms |
| Laser frequency | 0-50Hz |
| Spot adjustment range | 0.3-2.5mm |
| Cooling system | Built-in water chiller 1P |
| Rated power | 6.5KW |
| Power demand | Standard three-phase 380V±5%/50Hz/20A Optional single-phase 220V |
| Packaging size(mm) | 1080*590*1230mm |
| Gross weight(kg) | 180 |
| Usage environment temperature | 10-30℃ |
Application industry
Jewelry welding machine is specially designed for jewelry and electronic industries, and is mostly used in jewelry, electronic components, communications, handicrafts and other industries. It can repair and weld various metals and alloys such as stainless steel, copper, gold, silver, K gold, etc. Including: rings, earrings, bracelets, necklaces, tie clips, cuffs and other jewelry and metal accessories.
