ABB 6 Axis Automatic Robot Arm Fiber Laser Welding Machine
| Place of Origin | China |
|---|---|
| Brand Name | DP LASER |
| Certification | CE SGS FDA TUV ROHS |
| Model Number | Laser Welding Machine |
| Minimum Order Quantity | 1 Set |
| Price | Please contact us |
| Packaging Details | Wooden boxes that meet international export standards |
| Delivery Time | 7-15 Work Days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 300 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Laser Source | Raycus MAX IPG NLIGHT Laser Source | Laser Type | Continuous Fiber Laser |
|---|---|---|---|
| Application | Metal Stainless Steel Laser Welder | Laser Power | 1000W-6000W Optional |
| Fixture | Support Customization | Machine Type | Automatic |
| Laser Wavelength | 1070nm | Feature | High Accuracy |
| Power Supply | 380V 50HZ | After-sales Service Provided | Overseas Engineers Provide Door-to-door Service |
| High Light | 6 Axis automatic robot arm,ABB six axis robot arm,ABB automatic robot arm |
||
Product Description

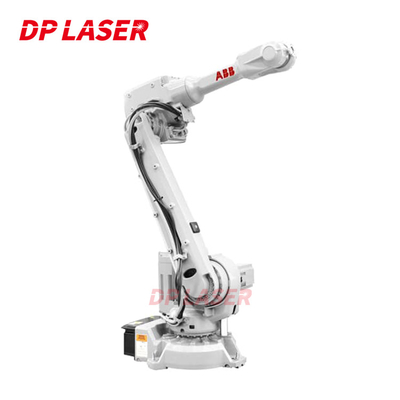

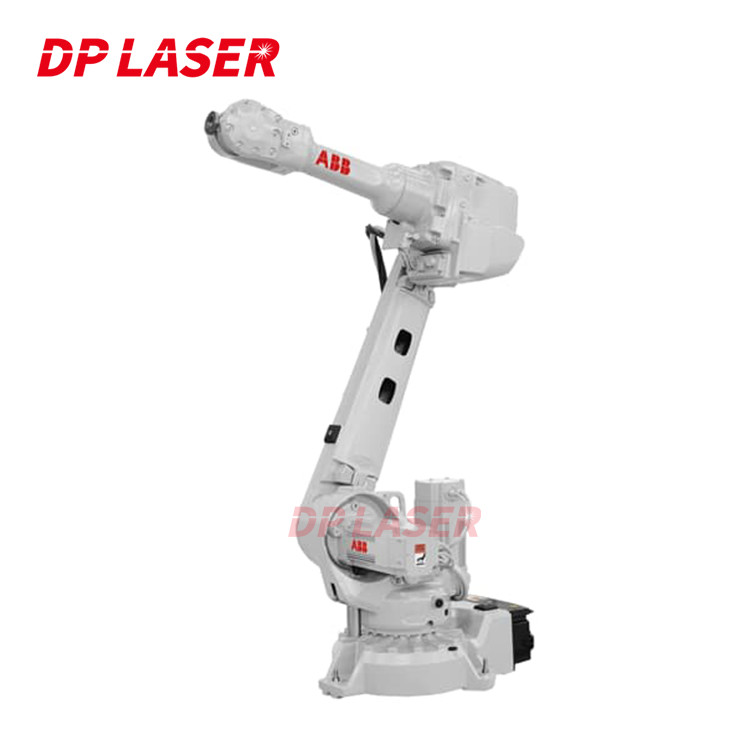

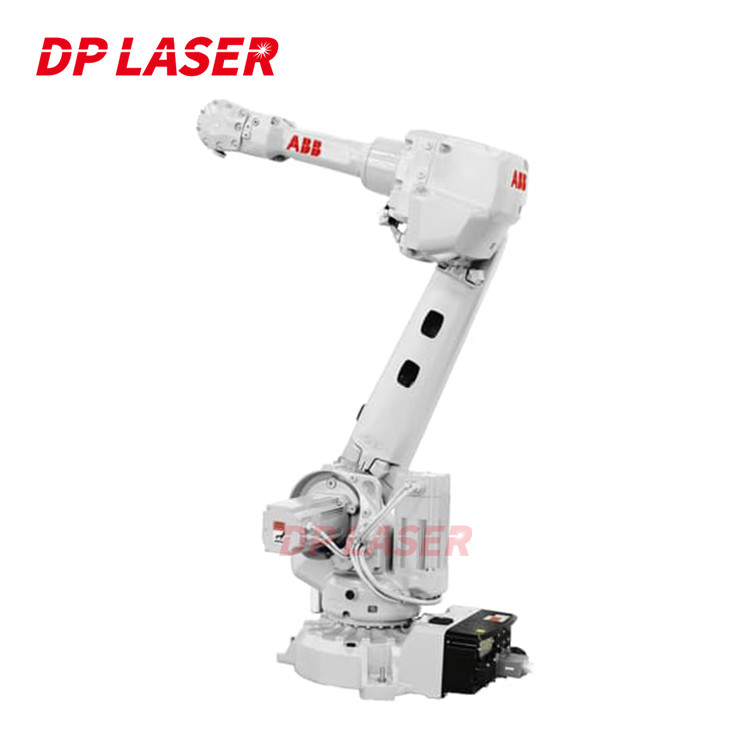

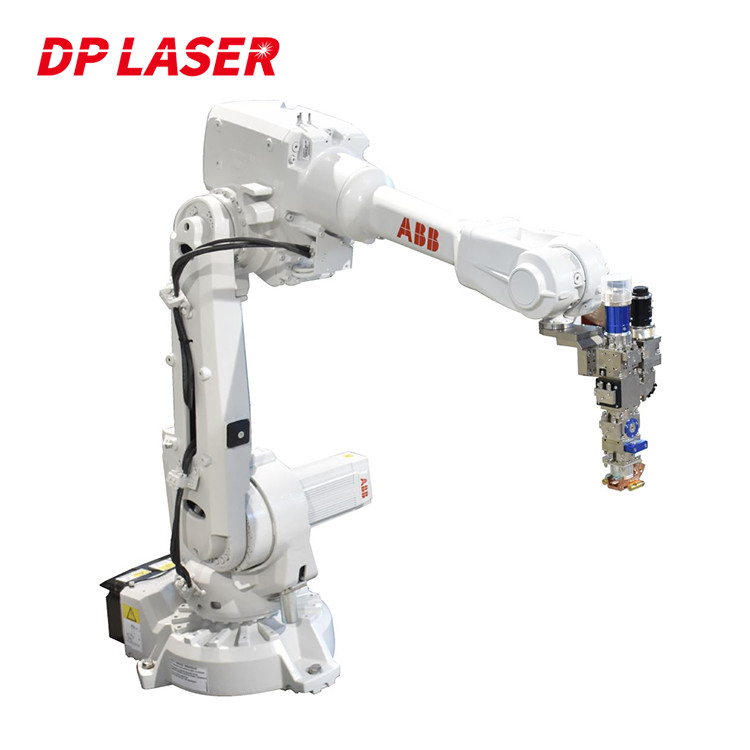

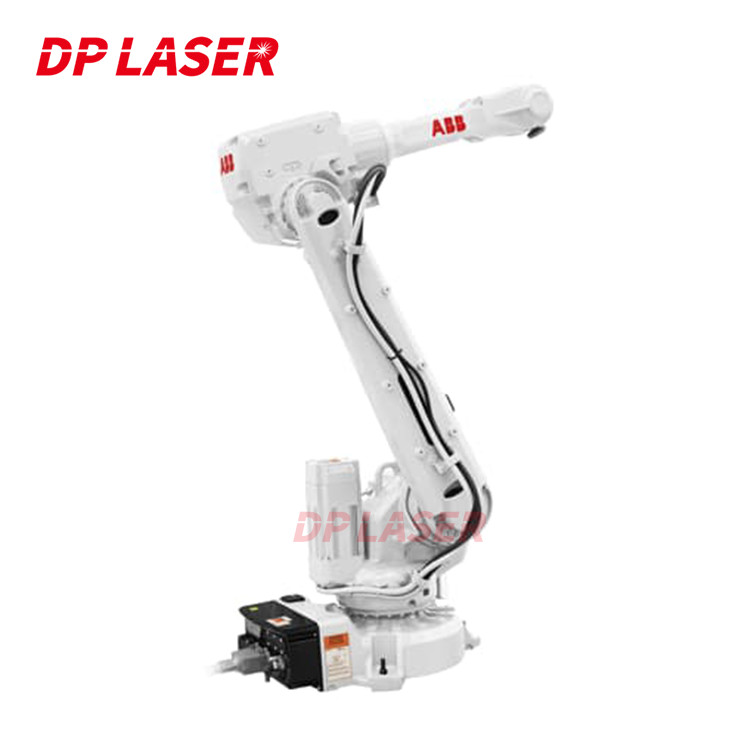

ABB 6 Axis Automatic Robot Arm Fiber Laser Welding Machine
Advantages:
Fully automated
Intelligent positioning processing
Assembly line customization
Features
The welding robot adopts a double-station working platform, which can save the time of installing product fixtures, improve production efficiency, and realize automatic and intelligent operation. The welding robot is equipped with a unique swinging welding head, and the laser is collimated into parallel light by a collimator, which is focused on the workpiece for welding. In addition, it can also be equipped with a simple universal instrument to perform flexible transmission welding of parts that cannot be touched by large molds, making the operation more flexible. The welding robot has fast running speed, high repeat positioning accuracy, few consumables and low operating cost, and is suitable for large-format space welding.
| Laser Power | 1000W-6000W |
| Laser Source | Raycus/IPG/nLIGHT/Max Optional |
| Laser Head | Raytool/WSX/OSPRI Optional |
| Robot Arm | ABB/KUKA/Yaskawa/Fanuc |
| Laser Wavelength | 1070nm |
| Axis | 6 Axis |
| Fixture | Support Customization |
| Operate Mode | Continuation/Modulate |
| Water Chiller | Hanli |
| Spot Adjusting Range | 0.1-3mm |
| Repeating Precision | ±0.01mm |
| Voltage | 380V/3-Phase/50Hz/40A/60A |
Application industry
It is used for precision metal welding processing, such as welding of hardware appliances, kitchen and bathroom industries (faucets and round pipes, kitchenware sheet metal parts, washing machine inner cylinders, etc.), and precision hardware welding of electronic industry (mobile phones, tablets, automobiles, etc.). It can meet the welding of a variety of metals, alloys, steel, Kovar and other materials of the same kind, as well as dissimilar materials such as copper-nickel, nickel-titanium, copper-titanium, titanium-molybdenum, brass-copper, low-carbon steel-copper, etc. Welding between metals.
