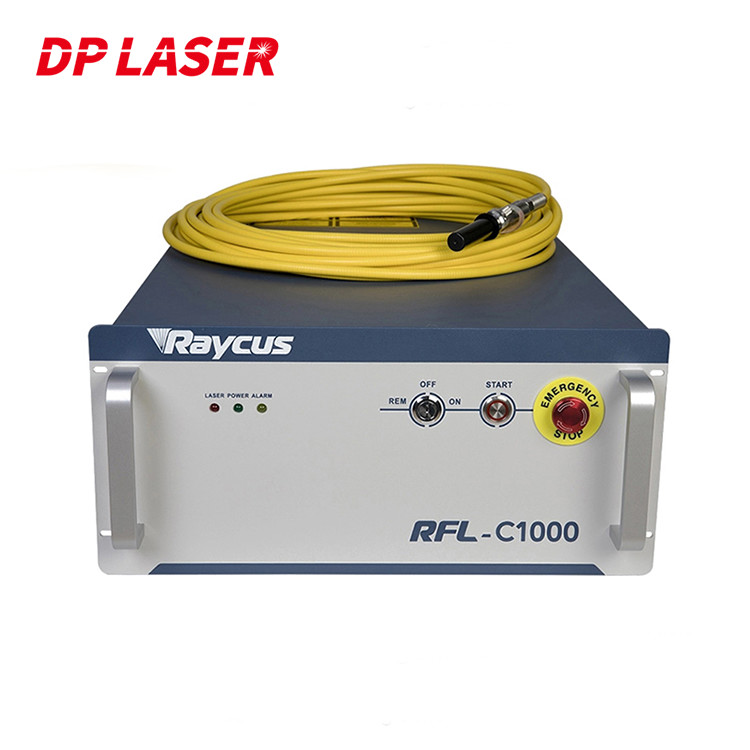

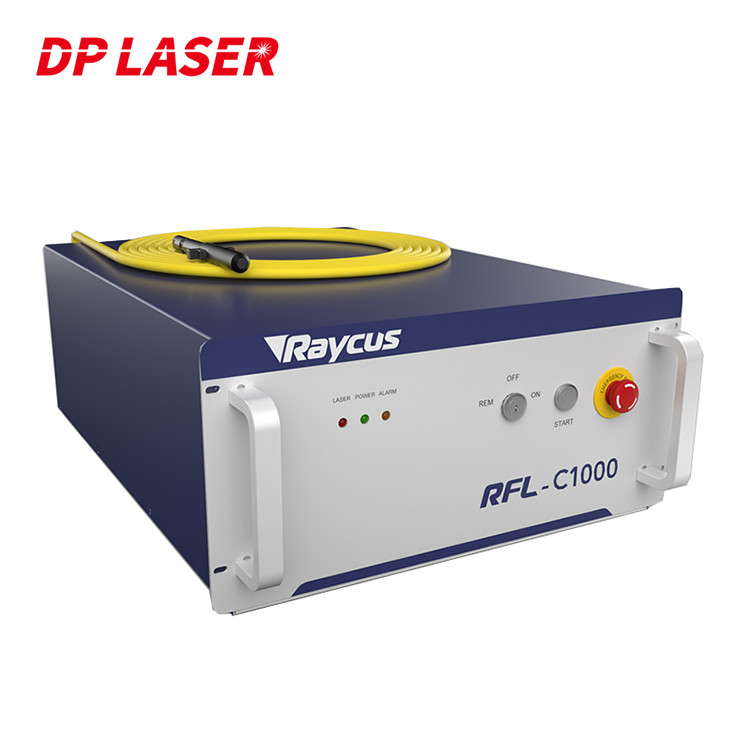

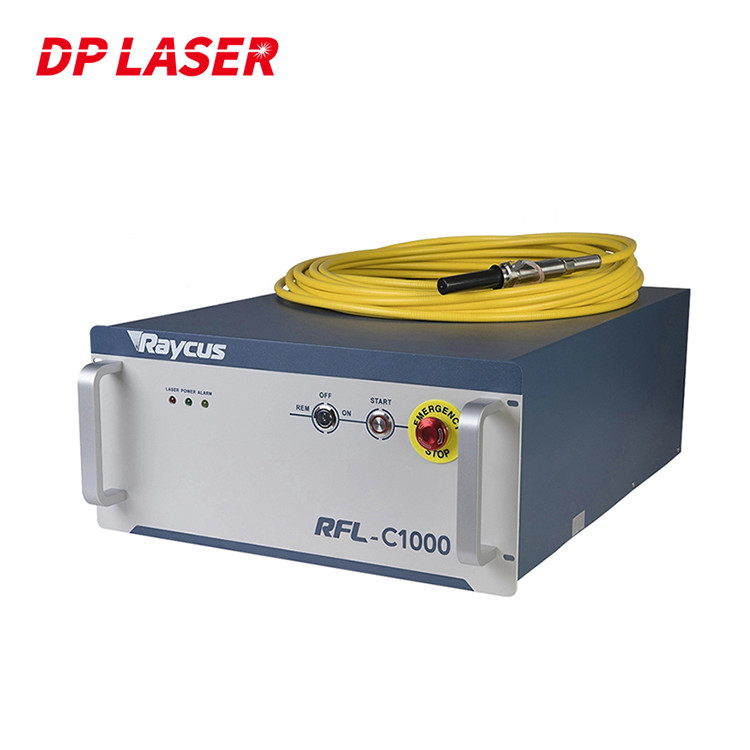

1000W 1KW Single Module Fiber Laser Source Raycus RFL-C1000

Place of Origin China
Brand Name Raycus
Certification CE SGS FDA TUV ROHS
Model Number RFL-C1000
Minimum Order Quantity 1 Set
Price Please contact us
Packaging Details Wooden boxes that meet international export standards
Delivery Time 7-15 Work Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 300 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Fiber Laser Source Keywords Laser Cutting Spare Parts
Brand Raycus Application Metal Cutting
Laser Type Fiber Laser Power 1000W
Used For Fiber Laser Cutting Machine Control System Wooden Case
MOQ 1 Set After-sales Service Provided Overseas Engineers Provide Door-to-door Service
High Light

1 KW Fiber Laser Source

,

1KW Raycus Fiber Laser Source

Leave a Message
Product Description

Raycus RFL-C1000 1000W 1KW Single Module Laser Source For Fiber Laser Cutting Machine



Features

It has higher photoelectric conversion efficiency, better and more stable beam quality, and stronger anti-high-reflection ability. At the same time, it introduces an optimized second-generation optical fiber transmission system to ensure a more stable and precise cutting effect in thick plate cutting. . This product is suitable for a variety of applications: cutting, welding, drilling, medical device processing, etc. The cut sheet has a narrow slit and a bright section, which has obvious advantages over other lasers of the same type in the market.



1000W 1KW Single Module Fiber Laser Source Raycus RFL-C1000 01000W 1KW Single Module Fiber Laser Source Raycus RFL-C1000 1


Model RFL-C500 RFL-C750 RFL-C1000 RFL-C1500 RFL-C2000 RFL-C3000
Optical Properties

Output Power

(W)

500 750 1000 1500 2000 3000

Wavelength

(nm)

1080±5
Operation Mode CW/Modulate

Max.Modulation Frequency

(KHz)

20 5
Output Power Stability ±1.5%
Red Laser Yes(0.1mW-1mW)
Output Characteristics
Beam Delivery Optics QBH(Customizable)
Beam Quality 1.1(25μm) 1.3(25μm) 5-7(50μm)
Polarization State Random

Delivery Cable Length

(m)

15(Customizable) 20(Customizable)
Electrical Characteristics
Power Supply 200-240 Single Phase 380 Three Phase

Power Range

(%)

10%-100%
Other Characteristics

Dimensions

(mm)

485×237×748 900×447×251

Weight

(KG)

<50 <70 <80
Cooling Water Cooling

Operating Temperature

(℃)

10-40
