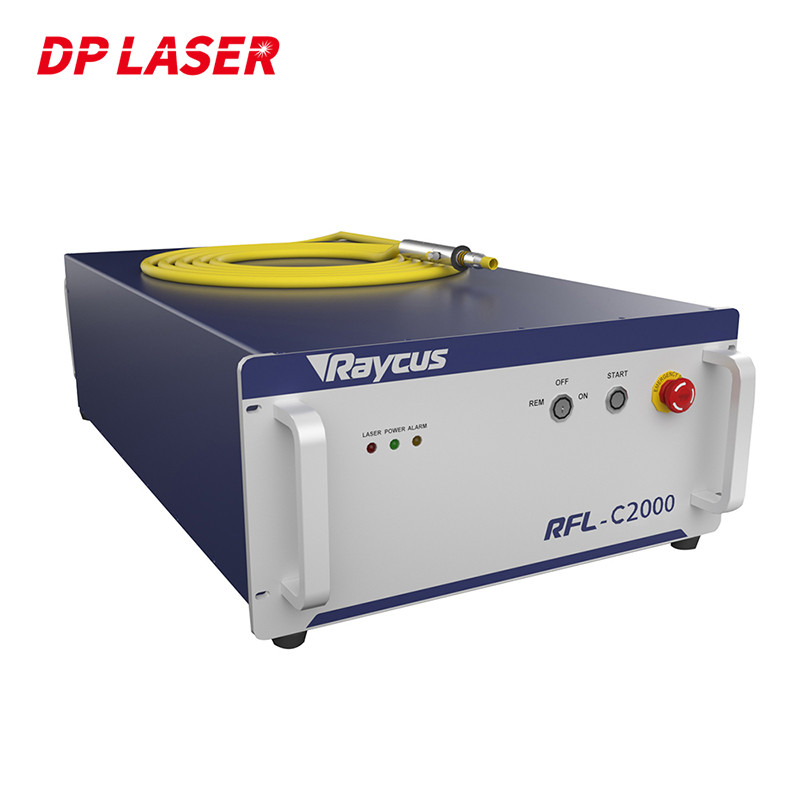

Single Module Fiber Coupled Laser Source Raycus 2000W RFL-C2000

Place of Origin China
Brand Name Raycus
Certification CE SGS FDA TUV ROHS
Model Number RFL-C2000
Minimum Order Quantity 1 Set
Price Please contact us
Packaging Details Wooden boxes that meet international export standards
Delivery Time 7-15 Work Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 300 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Product Name Fiber Laser Source Keywords Laser Cutting Spare Parts
Brand Raycus Application Metal Cutting
Laser Type Fiber Laser Power 2000W
Used For Fiber Laser Cutting Machine Control System Wooden Case
MOQ 1 Set After-sales Service Provided Overseas Engineers Provide Door-to-door Service
High Light

fiber coupled laser source Raycus


fiber coupled laser source 2000W


fiber coupled laser source 2KW

Leave a Message
Product Description

Raycus RFL-C2000 2000W 2KW Single Module Laser Source For Fiber Laser Cutting Machine



It has higher photoelectric conversion efficiency, better and more stable beam quality, and stronger anti-high-reflection ability. At the same time, it introduces an optimized second-generation optical fiber transmission system to ensure a more stable and precise cutting effect in thick plate cutting. . This product is suitable for a variety of applications: cutting, welding, drilling, medical device processing, etc. The cut sheet has a narrow slit and a bright section, which has obvious advantages over other lasers of the same type in the market.


Single Module Fiber Coupled Laser Source Raycus 2000W RFL-C2000 0

Model RFL-C500 RFL-C750 RFL-C1000 RFL-C1500 RFL-C2000 RFL-C3000
Optical Properties

Output Power


500 750 1000 1500 2000 3000



Operation Mode CW/Modulate

Max.Modulation Frequency


20 5
Output Power Stability ±1.5%
Red Laser Yes(0.1mW-1mW)
Output Characteristics
Beam Delivery Optics QBH(Customizable)
Beam Quality 1.1(25μm) 1.3(25μm) 5-7(50μm)
Polarization State Random

Delivery Cable Length


15(Customizable) 20(Customizable)
Electrical Characteristics
Power Supply 200-240 Single Phase 380 Three Phase

Power Range


Other Characteristics



485×237×748 900×447×251



<50 <70 <80
Cooling Water Cooling

Operating Temperature




Single Module Fiber Coupled Laser Source Raycus 2000W RFL-C2000 1
