10000W 10KW Multi Mode Optical Fiber Laser Source Raycus RFL-C10000X

Place of Origin China
Brand Name Raycus
Certification CE SGS FDA TUV ROHS
Model Number RFL-C10000
Minimum Order Quantity 1 Set
Price Please contact us
Packaging Details Wooden boxes that meet international export standards
Delivery Time 7-15 Work Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 300 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Fiber Laser Source Keywords Laser Cutting Spare Parts
Brand Raycus Application Metal Cutting
Laser Type Fiber Laser Power 10000W
Used For Fiber Laser Cutting Machine Control System Wooden Case
MOQ 1 Set After-sales Service Provided Overseas Engineers Provide Door-to-door Service
High Light

10KW optical fiber laser source

,

Raycus optical fiber laser source

,

10000W raycus fiber laser source

Leave a Message
Product Description

Raycus RFL-C10000X 10000W 10KW Multi Mode Laser Source For Fiber Laser Cutting Machine



Features

It has the advantages of high electro-optical conversion efficiency (>40%), good beam quality, high energy density, wide modulation frequency, strong reliability, long life, and maintenance-free operation. It can be widely used in welding, precision cutting, cladding, and surface treatment. , 3D printing and other fields.

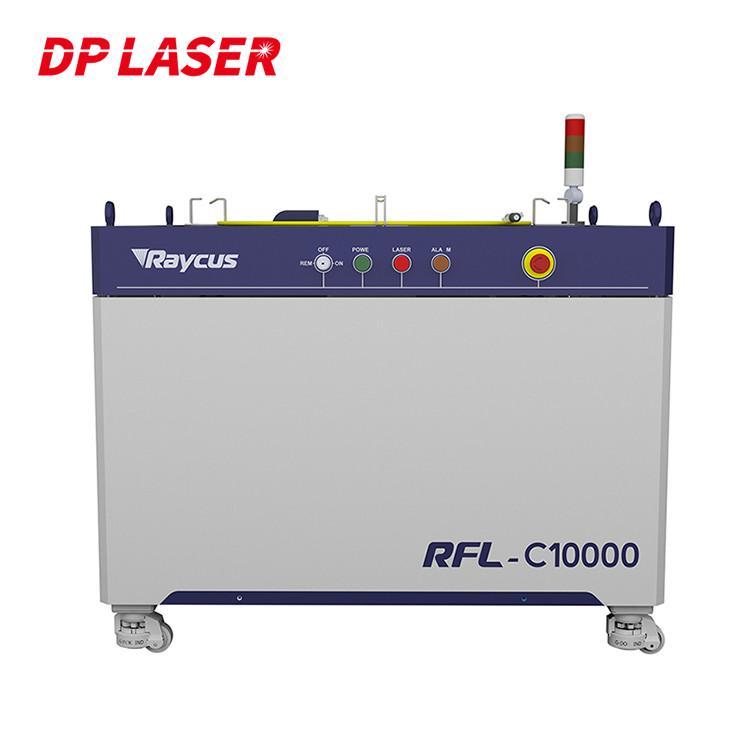

10000W 10KW Multi Mode Optical Fiber Laser Source Raycus RFL-C10000X 010000W 10KW Multi Mode Optical Fiber Laser Source Raycus RFL-C10000X 1


Model RFL-C4000 RFL-C6000 RFL-C8000 RFL-C10000 RFL-C12000 RFL-C15000
Optical Properties

Output Power

(W)

4000 6000 8000 10000 12000 15000

Wavelength

(nm)

1080±5
Operation Mode CW/Modulate

Max.Modulation Frequency

(KHz)

5 2
Output Power Stability ±1.4%
Red Laser Yes(0.5mW-1mW)
Output Characteristics
Beam Delivery Optics QBH(Customizable)

Output Fiber Diameter

(μm)

100(Customizable)

BBP

(mm.mrad)

≤4.5 ≤5
Polarization State Random

Delivery Cable Length

(m)

20(Customizable)
Electrical Characteristics
Power Supply 340-420(Three Phase-Five Wire Connect)

Power Range

(%)

10%-100%
Other Characteristics

Dimensions

(mm)

670×990×1160 900×960×1160 1200×960×1160 960×1600×1188

Weight

(KG)

<280 <360 <400 <450 <500 <800
Cooling Water Cooling

Operating Temperature

(℃)

10-40

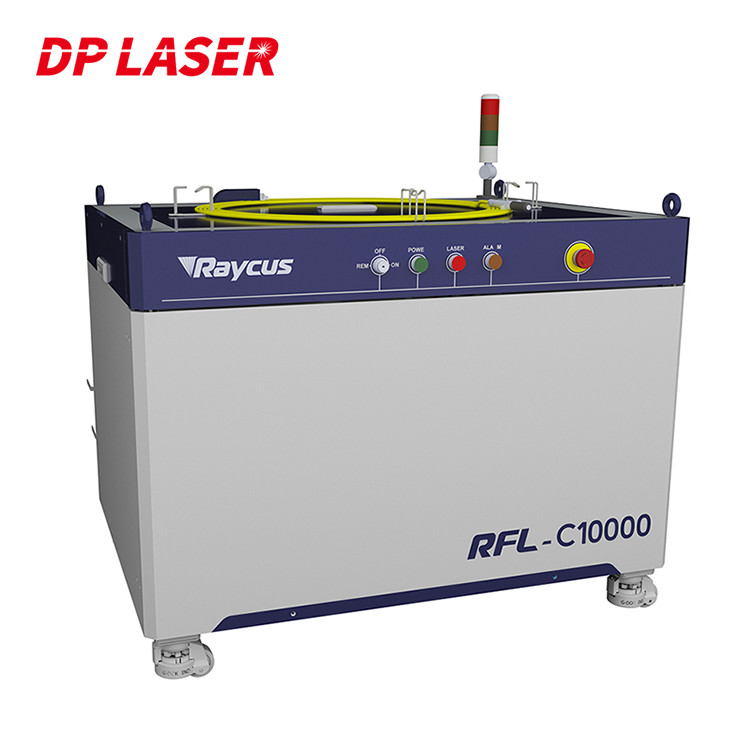

10000W 10KW Multi Mode Optical Fiber Laser Source Raycus RFL-C10000X 2
