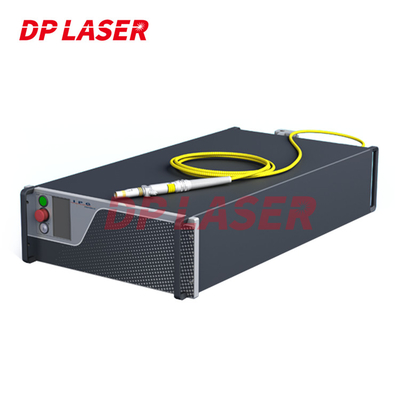

CW IPG 2000W Fiber Laser Source YLR-2000-U-K For CNC Metal Fiber Laser Machine
Place of Origin | China |
---|---|
Brand Name | IPG |
Certification | CE SGS FDA TUV ROHS |
Model Number | YLR-2000-U-K |
Minimum Order Quantity | 1 Set |
Price | Please contact us |
Packaging Details | Wooden boxes that meet international export standards |
Delivery Time | 7-15 Work Days |
Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability | 300 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Product Name | Fiber Laser Source | Keywords | Laser Cutting Spare Parts |
---|---|---|---|
Brand | IPG | Application | Metal Cutting |
Laser Type | Fiber Laser | Power | 2000W |
Used For | Fiber Laser Cutting Machine | Control System | Wooden Case |
MOQ | 1 Set | After-sales Service Provided | Overseas Engineers Provide Door-to-door Service |
High Light | IPG 2000W Fiber Laser Source,CW Fiber Laser Source,CW ipg laser source |
Product Description
IPG 2000W 2KW YLR-2000-U-K Fiber Laser Source For CNC Metal Fiber Laser Cutting Machine
Medium Power CW Fiber Lasers
IPG medium power CW fiber lasers with output powers from 100 to 2000 W feature a wide operating wavelength range, single-mode and multi-mode options, low amplitude noise, high stability, and long pump diode life. Lasers are typically air-cooled with average powers up to 500 W. For average powers up to 2.5 kW, compact water cooling is available. The newly designed electronic system realizes the expansion of control functions. Lasers are available with a variety of fiber termination and collimation optics.
IPG manufactures CW Ytterbium, Erbium, Thulium and Raman CW fiber lasers. The power is between 100 - 2500 W and the wavelength range is 1- 2 µm. Fiber lasers in other power ranges are diode lasers and CW fiber amplifiers.
Higher output power 1 kW-100 kW CW fiber laser products include: Ytterbium Doped Laser (1 μm), Erbium Doped Laser (1.5 μm) and Thulium Doped Laser (2 μm). GLPN green quasi-continuous laser, average power range 100-500 W.
Beam Quality:
Medium-power CW lasers are available in either single-mode or multi-mode forms depending on application requirements. It should be pointed out that since there is no change in the lateral thermal gradient in the resonator, the quality and divergence of the beam will not change when the power is adjusted, while the DPSS laser can only be optimized at the nominal power, at this point , the two are completely different.
Polarization:
Medium power CW lasers are usually randomly polarized, with linear polarization being an optional configuration. IPG also offers linearly polarized Ytterbium CW fiber amplifiers up to 1 kW. For linear polarization configurations, please contact IPG.
Direct modulation:
Direct modulation frequency in the kHz range is an essential feature.
Power stability
Under stable ambient conditions, the power stability index is usually <1% for more than 4 hours.
Cooling method
The YLM module is air-cooled, and the output power can reach 400 W; the YLR rack-mounted laser is also air-cooled, and the output power can reach 500 W; the TLR-200 is water-cooled.
Package
There are OEM modules or 19” rack mount units. The OEM is DC power supply, while the rack mount units require 50-60 Hz single phase power. In addition, the rack type is equipped with a front control panel and LCD display, and the OEM module is Control via RS-232 interface.
Feature:
1.Average power range 100 - 2500 W
2.High electro-optical conversion efficiency
3.Excellent stability
4.Best single-mode beam quality
5.Steady beam pointing
6.Stable beam quality over the full power range
7.Direct modulation range kHz
8.Extremely low cost
