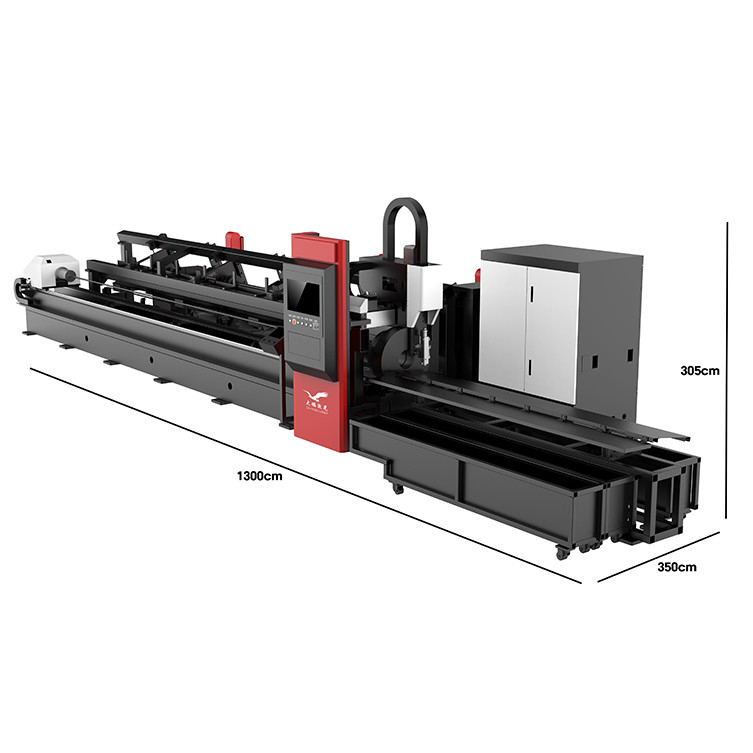

6022 Fiber Laser Cutting Machine 1kW-6kW For Metal Tube Cutting
Place of Origin | China |
---|---|
Brand Name | DP LASER |
Certification | CE SGS FDA TUV ROHS |
Model Number | Laser Cutting Machine |
Minimum Order Quantity | 1 Set |
Price | Please contact us |
Packaging Details | Wooden boxes that meet international export standards |
Delivery Time | 10-30 Work Days |
Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability | 300 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Laser Source | Raycus MAX IPG NLIGHT Laser Source | Laser Power | 1000W-6000W |
---|---|---|---|
Laser Type | Fiber Laser | Control System | Cypcut |
Configuration | Bench-top | Cutting Thickness | 0-25mm |
Cutting Speed | 100m/min | Power Supply | 380V/50HZ |
Weight (KG) | 5000 KG | After-sales Service Provided | Overseas Engineers Provide Door-to-door Service |
High Light | 6022 Fiber Laser Cutting Machine,6kW Fiber Laser Cutting Machine,6kw laser cutting machine |
Product Description

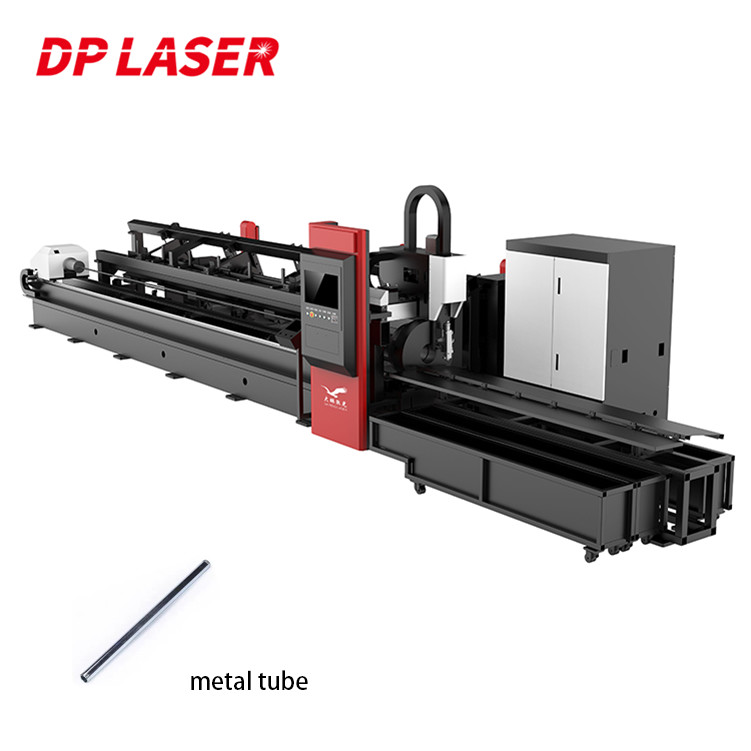

6022 Automatic Loading And Unloading Fiber Laser Cutting Machine For Metal Tube Cutting
Basic introduction
1.The machine bed is precision machined by a large gantry machining center; it is annealed in a large gas-fired trolley-type heat treatment furnace to eliminate the internal stress of the welding bed to the greatest extent, so that the equipment can achieve higher precision and higher stability;
2.Equipped with a pneumatic self-centering chuck, it can realize symmetrical and independent double-action clamping. The clamping process does not require manual intervention and adjustment. The structure design is simple and stable. Profiles such as beam steel and channel steel;
3.The equipment has power failure memory function; fallback cutting function; fault automatic alarm, emergency shutdown function; fault content automatic display function;
4.The professional typesetting and nesting software is highly integrated with the laser cutting system. It has the functions of graphic intelligent typesetting, automatic positioning of the pipe center and sharp corner smoothing. It has unique functions and cutting effects in intersecting lines, punching, and sharp corner processing.
Features:
The laser pipe cutting machine adopts the latest self-developed bus-type CNC laser pipe cutting system to realize the control of pipe support devices and chucks according to the needs of customers in the profile and pipe cutting market.
This machine can meet the cutting, opening and contour cutting of carbon steel, stainless steel, aluminum alloy and other materials such as round tubes, square tubes, rectangular tubes, elliptical tubes, etc. It can be used in sports equipment, petrochemical, agricultural machinery, furniture, construction , construction machine
Machinery, food, hardware decoration, lamps, advertising, sporting goods and other industries, is a high degree of automation, high efficiency, cost-effective special pipe cutting equipment.
Application industries
1. Sheet metal processing industry
The metal laser cutting machine is a major revolution in the field of sheet metal processing. Due to high flexibility, fast cutting speed, high cutting efficiency and short product cycle, sheet metal laser cutting machines have become an indispensable machine in the sheet metal processing industry.
On the one hand, metal laser cutting machines have no deformation or tool wear during processing. Whatever part it is, it can be cut accurately and quickly with a laser cutter. On the other hand, the cutting gap of metal laser cutting machines is often narrow, the cutting quality is good, and the level of automation is high. In addition, the use of metal cutting machines reduces the labor intensity of employees and does not pollute the environment.
2. Advertising metal word industry
In the advertising production industry, more metal materials are usually used. Traditional processing equipment generally uses materials such as processing advertising fonts. Due to the unsatisfactory machining accuracy and cutting surface, the probability of rework is quite high. As a result, work is inefficient and a lot of cost is wasted.
The high-precision metal laser cutting technology does not require secondary rework, which greatly improves work efficiency and saves enterprise costs.
3. Kitchenware industry
In the kitchenware processing industry, cooker hoods and gas appliances usually use a large number of sheet metal panels. When processing with traditional processing methods, it faces the problems of low work efficiency, large consumption of molds, and high cost of use.
The metal laser cutting machine perfectly solves these problems. The cutting speed is fast, the precision is high, and the processing efficiency is improved. It can realize customized and personalized product development, improve the yield, solve the troubles of kitchenware manufacturers, and win the favor of kitchenware manufacturers. Approved.
4. Automobile manufacturing
There are also many precision parts and materials in cars, such as car brake pads and doors. In order to improve the safety of the car, the cutting accuracy must be guaranteed. However, it is difficult for traditional machining methods or manual labor to guarantee precision and efficiency.
Therefore, laser cutting can be processed in batches quickly, with high precision, high efficiency, no burrs, and one-shot molding. This is why laser cutting machines are widely used in the automotive industry.
As one of the most intelligent industries at present, automobile manufacturing integrates various production processes. As one of the most important technologies, sheet metal laser cutting machines have achieved up to 70% of the intelligent production of accessories.
5. Fitness equipment industry
The diversity of fitness equipment also puts forward high requirements for processing. Multiple specifications and multiple shapes make traditional processing complicated and inefficient. Laser cutting is highly flexible and can be customized and flexibly processed for different tubes and sheets. After processing, the finished product is smooth and free of burrs. No secondary processing is required. The quality and efficiency are greatly improved compared with the traditional process.
6. Shipbuilding
In the field of shipbuilding, laser cutting marine steel plate has good cutting seam quality, good verticality of cutting surface, no slag inclusion, thin oxide layer, smooth surface, no need for secondary processing, direct welding, small thermal deformation, high precision curve cutting, and reduced coordination man-hours. , to achieve barrier-free cutting of high-strength ship plates.
Model | T6012 | T6016 | T6022 | T6032 | T6035 | T6040 | T6052 |
Outer Diameter | Φ430 | Φ590 | Φ600 | Φ760 | Φ844 | Φ950 | Φ1140 |
Through Hole Diameter | Φ130 | Φ170 | Φ225 | Φ325 | Φ365 | Φ400 | Φ520 |
Processing Range | 10-120 | 10-160 | 15-218 | 15-320 | 20-350 | 20-400 | 20-508 |
Repositioning Accuracy | ≤0.05 | ≤0.05 | ≤0.05 | ≤0.05 | ≤0.05 | ≤0.10 | ≤0.10 |
Rotation Accuracy | ≤0.05 | ≤0.05 | ≤0.05 | ≤0.05 | ≤0.05 | ≤0.10 | ≤0.10 |
Minimum Clamping Wall Thickness | ≥1 | ≥1 | ≥1 | ≥1 | ≥2 | ≥3 | ≥5 |
Rated Speed | 150rmp | 100rmp | 150rmp | 100rmp | 50rmp | 50rmp | 50rmp |
