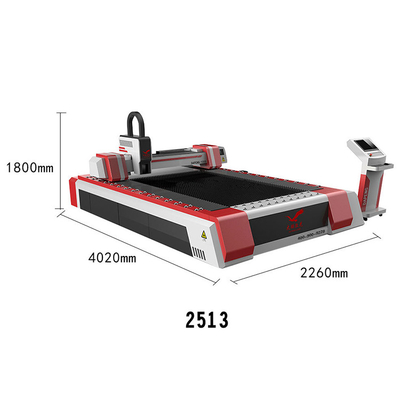

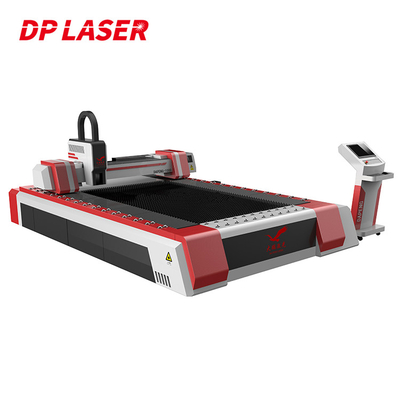

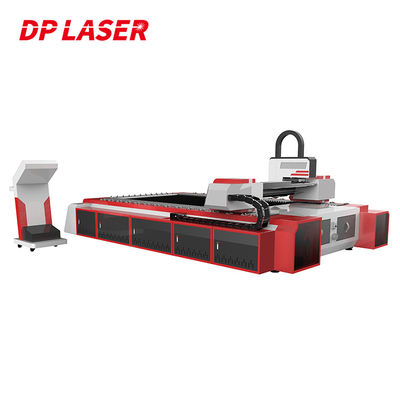

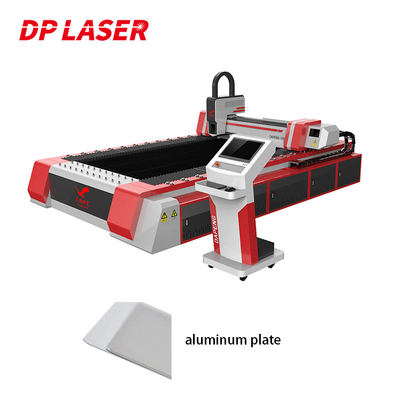

Single Bed 2513 CNC Fiber Laser Cutting Machine For Metal Sheet 1000W-20000W
Place of Origin | China |
---|---|
Brand Name | DP LASER |
Certification | CE SGS FDA TUV ROHS |
Model Number | Laser Cutting Machine |
Minimum Order Quantity | 1 Set |
Price | Please contact us |
Packaging Details | Wooden boxes that meet international export standards |
Delivery Time | 10-30 Work Days |
Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability | 300 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xLaser Source | Raycus Max IPG NLIGHT Optional | Laser Power | 1000W-20000W |
---|---|---|---|
Laser Type | Fiber Laser | Power Supply | 380V/50HZ |
Laser Head | Raytools Precitec WSX OSPRI Optional | Control System | Cypcut Hypcut Beckhoff Optional |
Condition | New | Function | Cutting Metal Materials |
Feature | SERVO-MOTOR | After-sales Service Provided | Overseas Engineers Provide Door-to-door Service |
High Light | 2513 Fiber Laser Cutting Machine,Raycus Fiber Laser Cutting Machine,2513 laser sheet cutting machine |
Single Bed 2513 CNC Fiber Laser Cutting Machine For Metal Sheet Cutting
Features
1. Interactive automatic conveying system, high processing efficiency.
2. Oversized worktable, suitable for large area cutting.
3. Sturdy anti-vibration console with strong pressure resistance.
4. The beam is concentrated, the spot is delicate, and the penetration is strong.
Application industry
Used in sheet metal processing, aviation, aerospace, electronics, electrical appliances, subway accessories, automobiles, food machinery, textile machinery, construction machinery, precision accessories, ships, metallurgical equipment, elevators, household appliances, craft gifts, tool processing, decoration, advertising , metal external processing, kitchen utensils processing and other manufacturing and processing industries.
Features of DP LASER Laser Cutting Machine
1. Integrated casting machine body with higher stability for higher precision
Application of gantry structure and integrated cast cross-girder to achieve higher rigidity, stability, shock resistance.
2. High-performance laser source and stable operating system which make the best cutting effect.
3. The machine owns perfect cooling system, lubrication system and dust removal system, to ensure that it can operate stably, efficiently and durably.
4. The machine is capable of automatic height adjustment to maintain constant focal length and stable cutting quality.
5. The machine is used for cutting a variety of metals with excellent and stable cutting quality.
6. The specialized CAD / CAM automatic programming software and automatic nesting software aim to maximally save raw materials.
7. Access to the CNC system through Ethernet interface makes communication and remote monitoring possible during the laser cutting process. owns perfect cooling system, lubrication system and dust removal syst
Working Area | 2500*1300 | 3000*1500 | 4000*1500 | 4000*2000 | 6000*1500 |
X/Y Axis Positioning Accuracy | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm |
X/Y Axis Repositioning Accuracy | ±0.02mm | ±0.02mm | ±0.02mm | ±0.02mm | ±0.02mm |
Max. Moving Speed | 150m/min | 150m/min | 150m/min | 150m/min | 150m/min |
Max.Acc Speec | 1.5G | 1.5G | 1.5G | 1.5G | 1.5G |
Laser Power | 1000W-1500W | 1000W-6000W | 1500W-6000W | 1500W-6000W | 1500W-6000W |
Laser Source | RAYCUS IPG nLIGHT MAX (Optional) | ||||
Laser Cutting Head | PRECITEC RAYTOOL WSX OSPRI (Optional) | ||||
Working Area | 6000*2000 | 6000*2500 | 8000*2500 | 10000*2500 | 12000*2500 |
X/Y Axis Positioning Accuracy | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm |
X/Y Axis Repositioning Accuracy | ±0.02mm | ±0.02mm | ±0.02mm | ±0.02mm | ±0.02mm |
Max. Moving Speed | 300m/min | 300m/min | 300m/min | 300m/min | 300m/min |
Max.Acc Speec | 5.0G | 5.0G | 5.0G | 5.0G | 5.0G |
Laser Power | 3000W-12000W | 3000W-20000W | 6000W-20000W | 6000W-20000W | 6000W-20000W |
Laser Source | RAYCUS IPG nLIGHT MAX (Optional) | ||||
Laser Cutting Head | PRECITEC RAYTOOL WSX OSPRI (Optional) |
The metal laser cutting machine adopts a reinforced welding bed, which undergoes tempering treatment and vibration aging treatment to eliminate stress, and then performs fine milling processing on a large-scale gantry milling machine to ensure long-term stability and no deformation of the machine tool. It is equipped with high-performance original packaged fiber lasers with stable performance. , The service life can reach 100,000 hours. It adopts imported guide drive and servo motor, and can use auxiliary gas (oxygen, argon, nitrogen) to cut various metal sheets, easy to operate, high precision, high speed and high efficiency.
