6022 Metal Round Square Tube Laser Cutting Machine CNC Automatic Type 100m/min

Place of Origin China
Brand Name DP LASER
Certification CE SGS FDA TUV ROHS
Model Number Laser Cutting Machine
Minimum Order Quantity 1 Set
Price Please contact us
Packaging Details Wooden boxes that meet international export standards
Delivery Time 10-30 Work Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 300 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Laser Source Raycus Max IPG NLIGHT Optional Laser Head Raytools Precitec WSX OSPRI Optional
Laser Power 1000W-6000W Condition New
Cutting Speed 100m/min Cutting Thickness 0-25mm
Feature SERVO-MOTOR Power Supply 380V/50HZ
Weight (KG) 4000 KG After-sales Service Provided Overseas Engineers Provide Door-to-door Service
High Light

6022 Tube Laser Cutting Machine


Tube Laser Cutting Machine 100m/min


6022 square tube laser cutting machine

Leave a Message
Product Description

6022 Metal Round Square Tube Fiber Laser Cutting Machine CNC Automatic Type


Basic introduction
Automatic fiber laser pipe cutting machine adopts CCD pipe section recognition system, automatic bundle feeding system, automatic sorting system for finished pipe fittings, pipe floating custody mechanism, intelligent remote monitoring system, automatic tube sheet length measurement system, etc.



1.It adopts Bochu FSCUT3000S CNC system based on Windows operating system, a special platform for laser pipe cutting machines, and integrates special function modules for laser cutting control. It has powerful functions, good man-machine interface and simple operation.
2.Professional pipe cutting programming software is one of the core technologies for CNC pipe cutting machines to achieve "full-time cutting, high-efficiency cutting", and is the fundamental guarantee for effectively saving materials and improving cutting efficiency.
3.Capacitive fiber laser cutting head has high sensing accuracy, sensitive response, and the most stable and reliable performance.
4.The unique custody device keeps the pipe in contact with the surface of the pipe while the pipe is being fed and rotated. The supporting force is set according to the pipe specification to ensure effective support, prevent the pipe from sagging, and reduce the axis swing when the pipe rotates. Improve machining accuracy.
5.The fully automatic whole bundle feeding function (optional) reduces the number of operators and improves the processing efficiency.
6.The pipe section automatic identification system (optional) can be mixed and loaded with various pipes, automatically prompt the pipe type, automatically retrieve the process library, and prompt the available processing programs.
7.A complete cutting process parameter library and a user-friendly parameter interface are provided. According to the type of pipe, the "one-click setting" processing process can be realized, and the laser cutting process parameters can also be modified in real time in the interface.
8.The high-precision servo proportional valve can precisely control the gas pressure of the cutting auxiliary gas and the clamping force of the chuck to achieve the best cutting effect.
9.The linear positioning speed of the pipe can reach 100m/min, and the rotary positioning speed can reach 120m/min.


Application industries
1. Sheet metal processing industry
The metal laser cutting machine is a major revolution in the field of sheet metal processing. Due to high flexibility, fast cutting speed, high cutting efficiency and short product cycle, sheet metal laser cutting machines have become an indispensable machine in the sheet metal processing industry.
On the one hand, metal laser cutting machines have no deformation or tool wear during processing. Whatever part it is, it can be cut accurately and quickly with a laser cutter. On the other hand, the cutting gap of metal laser cutting machines is often narrow, the cutting quality is good, and the level of automation is high. In addition, the use of metal cutting machines reduces the labor intensity of employees and does not pollute the environment.
2. Advertising metal word industry
In the advertising production industry, more metal materials are usually used. Traditional processing equipment generally uses materials such as processing advertising fonts. Due to the unsatisfactory machining accuracy and cutting surface, the probability of rework is quite high. As a result, work is inefficient and a lot of cost is wasted.
The high-precision metal laser cutting technology does not require secondary rework, which greatly improves work efficiency and saves enterprise costs.
3. Kitchenware industry
In the kitchenware processing industry, cooker hoods and gas appliances usually use a large number of sheet metal panels. When processing with traditional processing methods, it faces the problems of low work efficiency, large consumption of molds, and high cost of use.
The metal laser cutting machine perfectly solves these problems. The cutting speed is fast, the precision is high, and the processing efficiency is improved. It can realize customized and personalized product development, improve the yield, solve the troubles of kitchenware manufacturers, and win the favor of kitchenware manufacturers. Approved.
4. Automobile manufacturing
There are also many precision parts and materials in cars, such as car brake pads and doors. In order to improve the safety of the car, the cutting accuracy must be guaranteed. However, it is difficult for traditional machining methods or manual labor to guarantee precision and efficiency.
Therefore, laser cutting can be processed in batches quickly, with high precision, high efficiency, no burrs, and one-shot molding. This is why laser cutting machines are widely used in the automotive industry.
As one of the most intelligent industries at present, automobile manufacturing integrates various production processes. As one of the most important technologies, sheet metal laser cutting machines have achieved up to 70% of the intelligent production of accessories.
5. Fitness equipment industry
The diversity of fitness equipment also puts forward high requirements for processing. Multiple specifications and multiple shapes make traditional processing complicated and inefficient. Laser cutting is highly flexible and can be customized and flexibly processed for different tubes and sheets. After processing, the finished product is smooth and free of burrs. No secondary processing is required. The quality and efficiency are greatly improved compared with the traditional process.
6. Shipbuilding
In the field of shipbuilding, laser cutting marine steel plate has good cutting seam quality, good verticality of cutting surface, no slag inclusion, thin oxide layer, smooth surface, no need for secondary processing, direct welding, small thermal deformation, high precision curve cutting, and reduced coordination man-hours. , to achieve barrier-free cutting of high-strength ship plates.
7. Construction machinery industry
At present, the construction machinery industry needs to cut a large number of round holes, square holes and special-shaped holes on plates of various thicknesses, and the precision requirements are very high. Using laser cutting can quickly punch holes and cut out the ideal shape, which greatly improves the production efficiency and product quality.

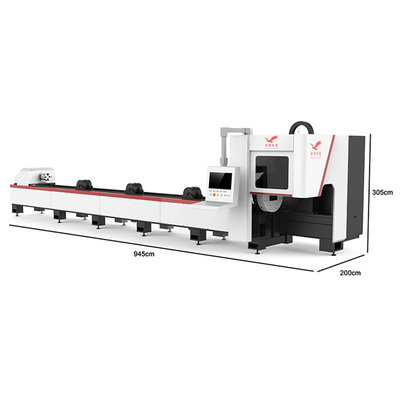

6022 Metal Round Square Tube Laser Cutting Machine CNC Automatic Type 100m/min 0

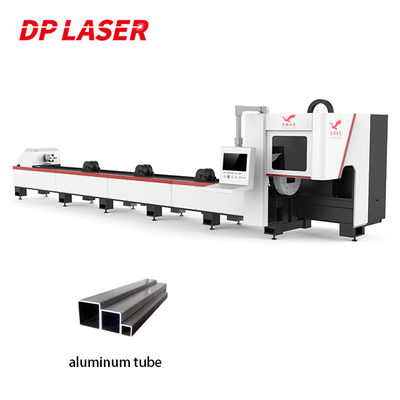

6022 Metal Round Square Tube Laser Cutting Machine CNC Automatic Type 100m/min 1

Model P6012 P6016 P6022 P6032 P6035 P6040 P6052
Outer Diameter Φ430 Φ590 Φ600 Φ760 Φ844 Φ950 Φ1140
Through Hole Diameter Φ130 Φ170 Φ225 Φ325 Φ365 Φ400 Φ520
Processing Range 10-120 10-160 15-218 15-320 20-350 20-400 20-508
Repositioning Accuracy ≤0.05 ≤0.05 ≤0.05 ≤0.05 ≤0.05 ≤0.10 ≤0.10
Rotation Accuracy ≤0.05 ≤0.05 ≤0.05 ≤0.05 ≤0.05 ≤0.10 ≤0.10
Minimum Clamping Wall Thickness ≥1 ≥1 ≥1 ≥1 ≥2 ≥3 ≥5
Rated Speed 150rmp 100rmp 150rmp 100rmp 50rmp 50rmp 50rmp

6022 Metal Round Square Tube Laser Cutting Machine CNC Automatic Type 100m/min 26022 Metal Round Square Tube Laser Cutting Machine CNC Automatic Type 100m/min 3

6022 Metal Round Square Tube Laser Cutting Machine CNC Automatic Type 100m/min 4
