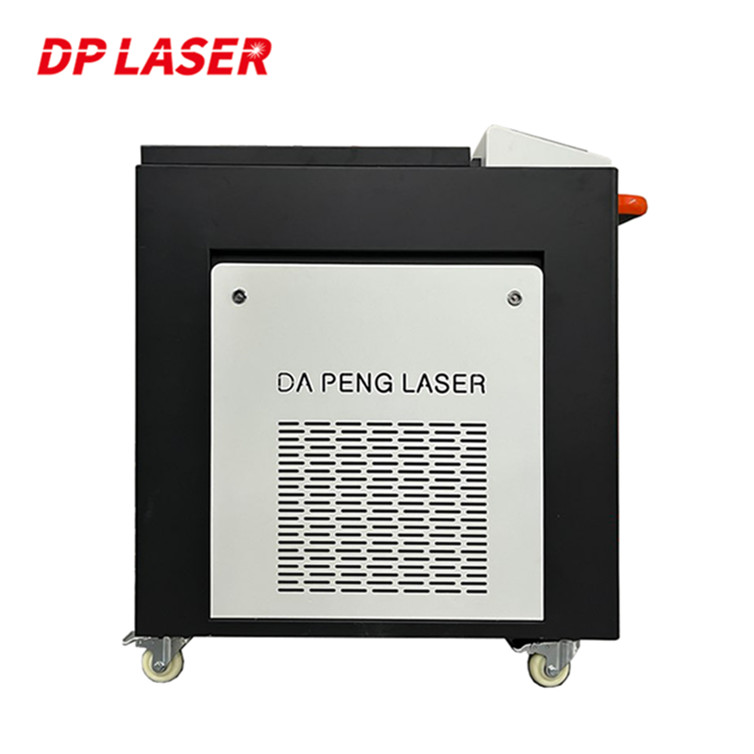

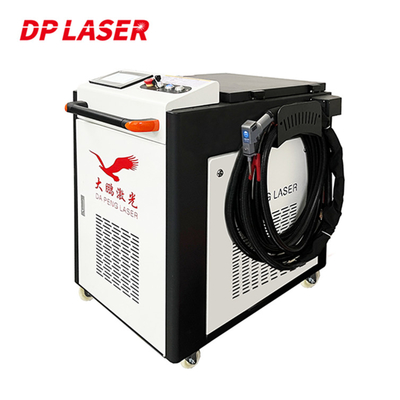

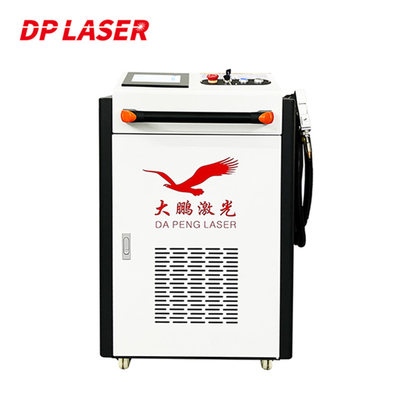

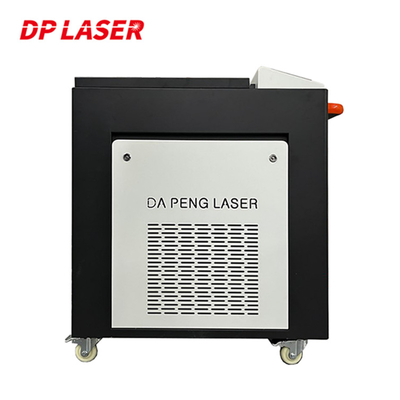

Multifunction Portable Handheld Laser Welding Machine

  • Multifunction Portable Handheld Laser Welding Machine
  • Multifunction Portable Handheld Laser Welding Machine
  • Multifunction Portable Handheld Laser Welding Machine
  • Multifunction Portable Handheld Laser Welding Machine
  • Multifunction Portable Handheld Laser Welding Machine
Place of Origin China
Brand Name DP LASER
Certification CE SGS FDA TUV ROHS
Model Number Laser Welding Machine
Minimum Order Quantity 1 Set
Price Please contact us
Packaging Details Wooden boxes that meet international export standards
Delivery Time 7-15 Work Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 300 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Laser Source Raycus Max IPG JPT Optional Laser Type Continuous Fiber Laser
Function Metal Welding Cutting Laser Power 1000W 1500W 2000W Optional
Laser Head Qilin Machine Type Handheld Machine
Laser Wavelength 1070nm Feature Quick Speed High Accuracy
Power Supply 110V/220V 50HZ After-sales Service Provided Overseas Engineers Provide Door-to-door Service
Highlight

Portable Handheld Laser Welding Machine

,

Multifunction Handheld Laser Welding Machine

,

Multifunction Laser Welding Machine
Leave a Message
Product Description

Qilin Head RAYCUS Multifunction Portable Handheld Fiber Laser Welding Cutting Machine Price Laser Welders



Basic introduction

The hand-held laser welding machine uses a continuous fiber laser as the light source and is equipped with a self-developed hand-held welding head. The shape, structure and man-machine are optimized based on humanization and work effectiveness. The hand-held welding head can be produced according to actual production. Customized, very suitable for non-standard production, water-cooled design, long-term welding does not get hot, small diameter, easy to hold, has the advantages of simple operation, beautiful welding seam, fast welding speed, and no consumables.



Machine Features

Independently developed a new generation of hand-held laser welding machine, which adopts an integrated structure design, and can be equipped with fiber lasers according to requirements.

Ultra-low operating cost, only consumes 1~2 kWh of electricity per hour, no other consumables;

The use of dual temperature and dual control chillers can meet the different cooling requirements of the laser and the welding head at the same time, ensuring that the laser and the welding head can work stably for a long time;

Various welding swing modes such as O-type, line-type and point-type can be selected, and the swing width can be adjusted within the range of 0-5mm to ensure the consistency of the welding effect;

Equipped with a digital barometer with low pressure alarm function to assist in adjusting the air pressure;

The ergonomically designed hand-held laser welding head can be equipped with an elastic weight reducer to reduce the weight of the welding head during operation, making it lighter and more practical.

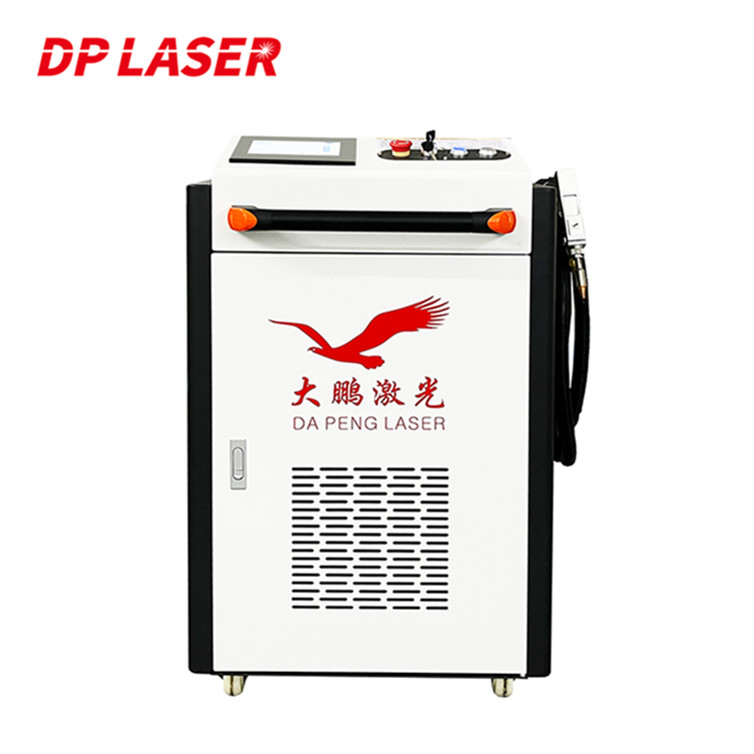

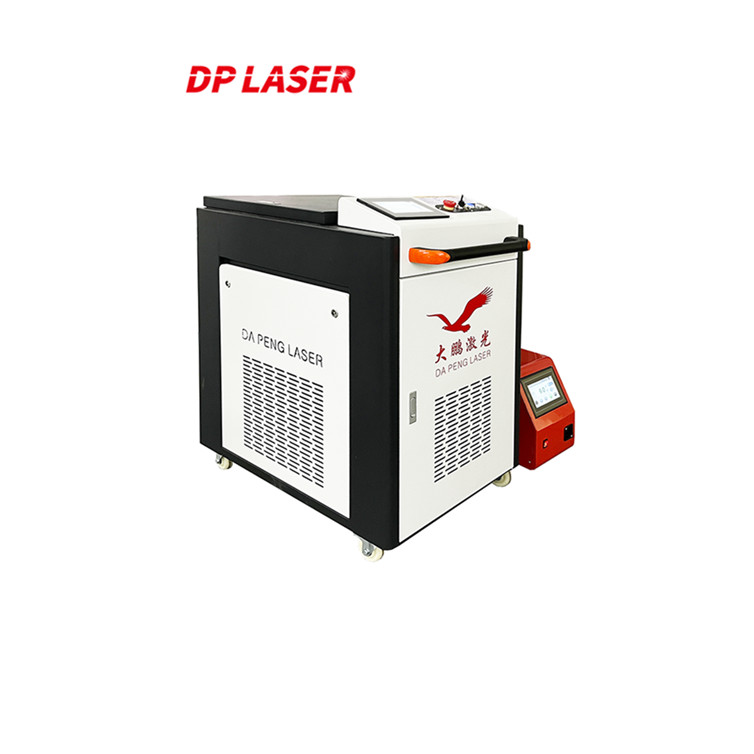

Multifunction Portable Handheld Laser Welding Machine 0Multifunction Portable Handheld Laser Welding Machine 1



Model DP-HL-1000 DP-HL-1500 DP-HL-2000
Laser Power 1000W 1500W 2000W
Laser Source Raycus/Max/IPG Raycus/Max/IPG Raycus/Max/IPG
Laser Head Qilin/Chaoqiang/WSX Qilin/Chaoqiang/WSX Qilin/Chaoqiang/WSX
Fiber Wire Length 5/10 Meters 5/10 Meters 5/10 Meters
Laser Wavelength 1070nm 1070nm 1070nm
Operate Mode Continuation/Modulate Continuation/Modulate Continuation/Modulate
Water Chiller Hanli Hanli Hanli
Spot Adjusting Range 0.1-3mm 0.1-3mm 0.1-3mm
Repeating Precision ±0.01mm ±0.01mm ±0.01mm
Cabinet Size 744*941*1030mm 744*941*1030mm 750*1260*1110mm
Machine Weight About 200KG About 200KG About 220KG
Voltage 110V/220V/380V 110V/220V/380V 110V/220V/380V



Handheld Fiber Laser Welder Applications
Used for welding various stainless steel mirror characters, stainless steel brushed characters, stainless steel spherical characters, stainless steel paint characters, stainless steel spray characters, stainless steel solid characters, stainless steel electroplating characters, stainless steel gold foil characters, precision stainless steel characters, titanium flat characters, titanium spherical characters Advertisement words, Seiko titanium gold fonts, flat copper fonts, spherical copper fonts, red copper fonts, red copper antique fonts, seiko aluminum fonts, metal paint fonts (stainless steel strips, iron strips, low carbon steel strips), and metal fonts are welded to form. Lighting and mold industries, optoelectronic communication devices, medical, electronics, copper parts, aluminum parts and small welding processing industries.

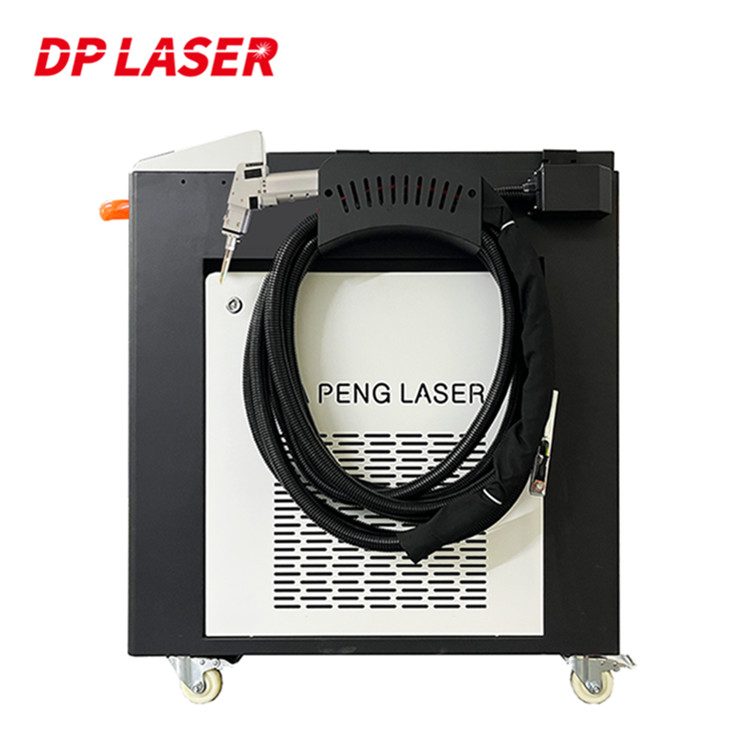

Multifunction Portable Handheld Laser Welding Machine 2Multifunction Portable Handheld Laser Welding Machine 3
