1500W MAX Laser Source Handheld Laser Welding Machine Portable Mini 110V/220V

  • 1500W MAX Laser Source Handheld Laser Welding Machine Portable Mini 110V/220V
  • 1500W MAX Laser Source Handheld Laser Welding Machine Portable Mini 110V/220V
  • 1500W MAX Laser Source Handheld Laser Welding Machine Portable Mini 110V/220V
  • 1500W MAX Laser Source Handheld Laser Welding Machine Portable Mini 110V/220V
Place of Origin China
Brand Name DP LASER
Certification CE SGS FDA TUV ROHS
Model Number Laser Welding Machine
Minimum Order Quantity 1 Set
Price Please contact us
Packaging Details Wooden boxes that meet international export standards
Delivery Time 7-15 Work Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 300 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Laser Source Max Laser Power 1500W
Laser Type Fiber Laser Source Power Supply 110V/220V
Application Metal Laser Welding Cleaning Cutting Condition New

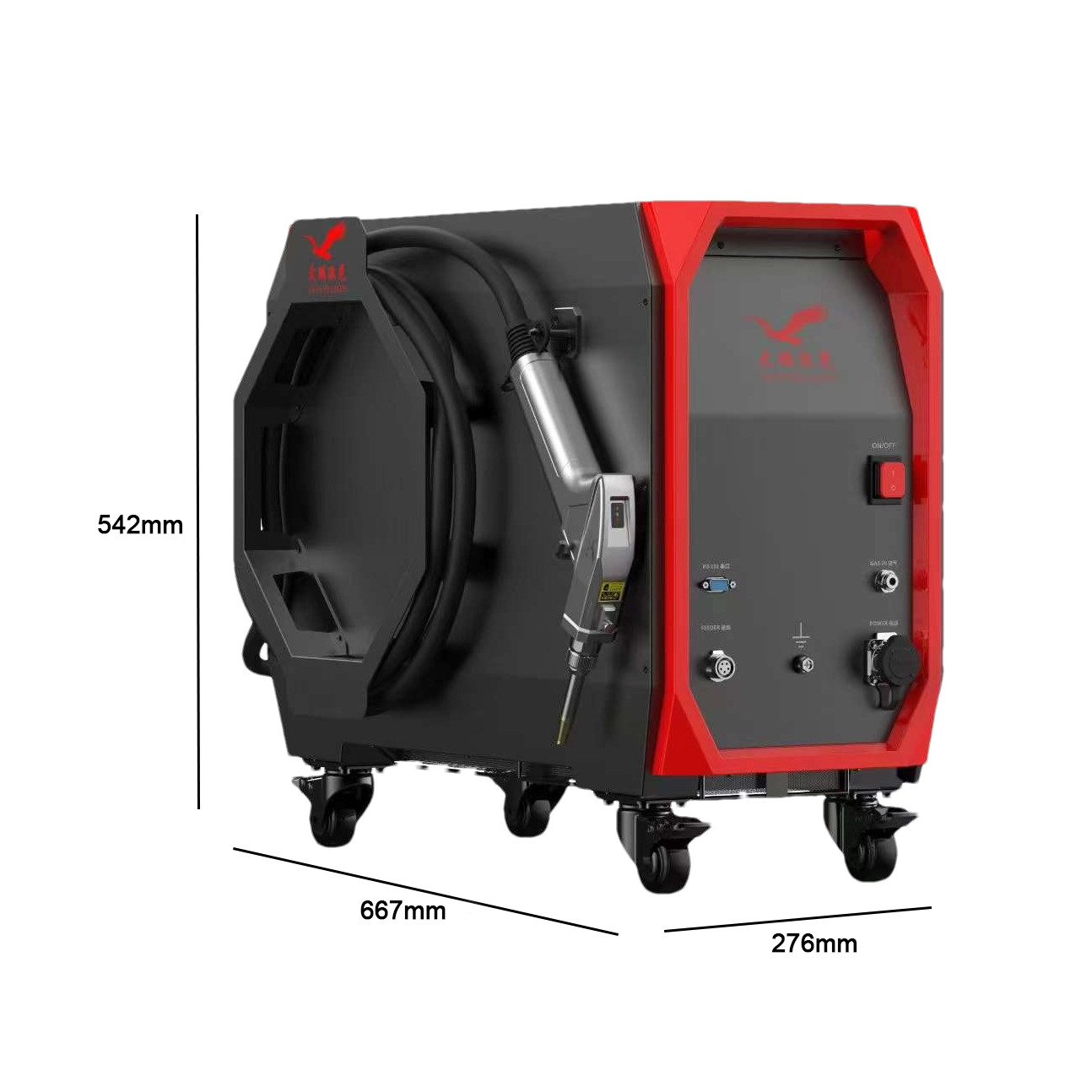

Keywords Fiber Laser Welding Equipment Dimensions 276*542*667mm
Weight (KG) 39 KG After-sales Service Provided Overseas Engineers Provide Door-to-door Service
High Light

1500W Handheld Laser Welding Machine

,

SGS Handheld Laser Welding Machine

,

laser handheld welding machine 220V
Leave a Message
Product Description

Handheld 1500W MAX Laser Source Portable Mini Laser Welding Machine



Basic introduction

The hand-held laser welding machine uses a continuous fiber laser as the light source and is equipped with a self-developed hand-held welding head. The shape, structure and man-machine are optimized based on humanization and work effectiveness. The hand-held welding head can be produced according to actual production. Customized, very suitable for non-standard production, Air cooling design, long-term welding does not get hot, small diameter, easy to hold, has the advantages of simple operation, beautiful welding seam, fast welding speed, and no consumables.



1500W MAX Laser Source Handheld Laser Welding Machine Portable Mini 110V/220V 0

1500W MAX Laser Source Handheld Laser Welding Machine Portable Mini 110V/220V 1

1500W MAX Laser Source Handheld Laser Welding Machine Portable Mini 110V/220V 2

1500W MAX Laser Source Handheld Laser Welding Machine Portable Mini 110V/220V 3

Model DP-1500M-A
Laser Power 1500W
Laser Source Max
Laser Head DP LASER
Fiber Wire Length 5 Meters
Power Cable Length 10 Meters
Working Radius 15 Meters
Laser Wavelength 1070nm
Operate Mode Continuation/Modulate
Spot Adjusting Range 0.1-3mm
Repeating Precision ±0.01mm
Machine Weight About 39KG
Voltage 110V/220V



Handheld Fiber Laser Welder Applications
Used for welding various stainless steel mirror characters, stainless steel brushed characters, stainless steel spherical characters, stainless steel paint characters, stainless steel spray characters, stainless steel solid characters, stainless steel electroplating characters, stainless steel gold foil characters, precision stainless steel characters, titanium flat characters, titanium spherical characters Advertisement words, Seiko titanium gold fonts, flat copper fonts, spherical copper fonts, red copper fonts, red copper antique fonts, seiko aluminum fonts, metal paint fonts (stainless steel strips, iron strips, low carbon steel strips), and metal fonts are welded to form. Lighting and mold industries, optoelectronic communication devices, medical, electronics, copper parts, aluminum parts and small welding processing industries.

1500W MAX Laser Source Handheld Laser Welding Machine Portable Mini 110V/220V 4

1500W MAX Laser Source Handheld Laser Welding Machine Portable Mini 110V/220V 5

1500W MAX Laser Source Handheld Laser Welding Machine Portable Mini 110V/220V 6
