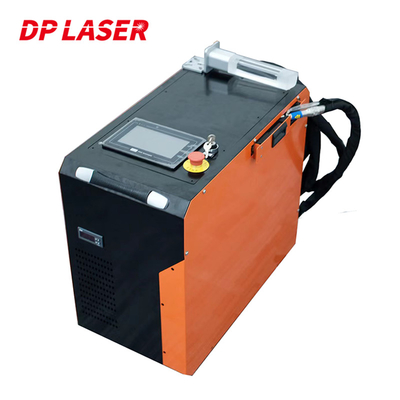

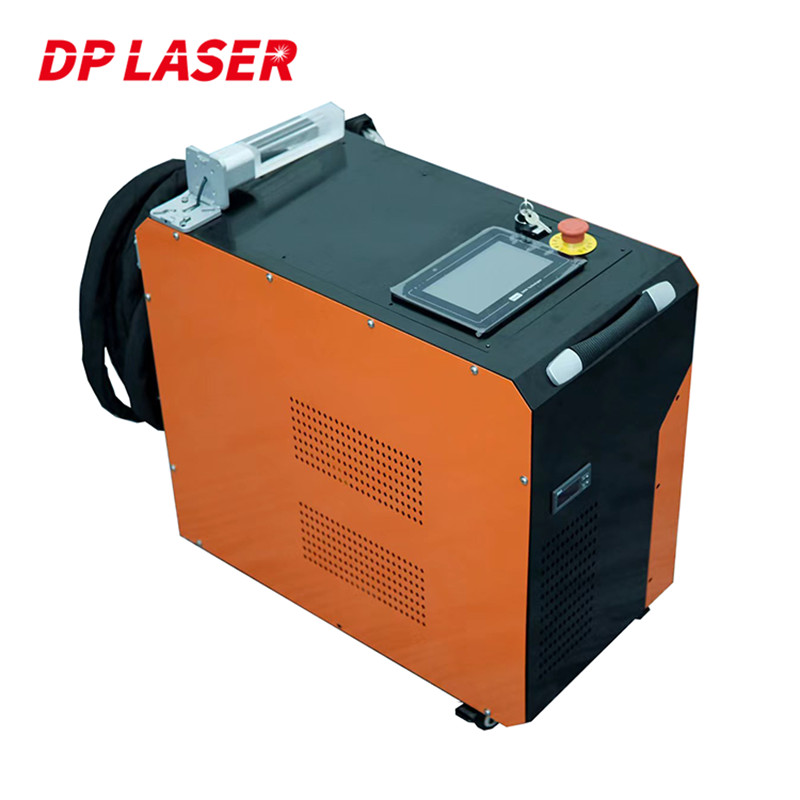

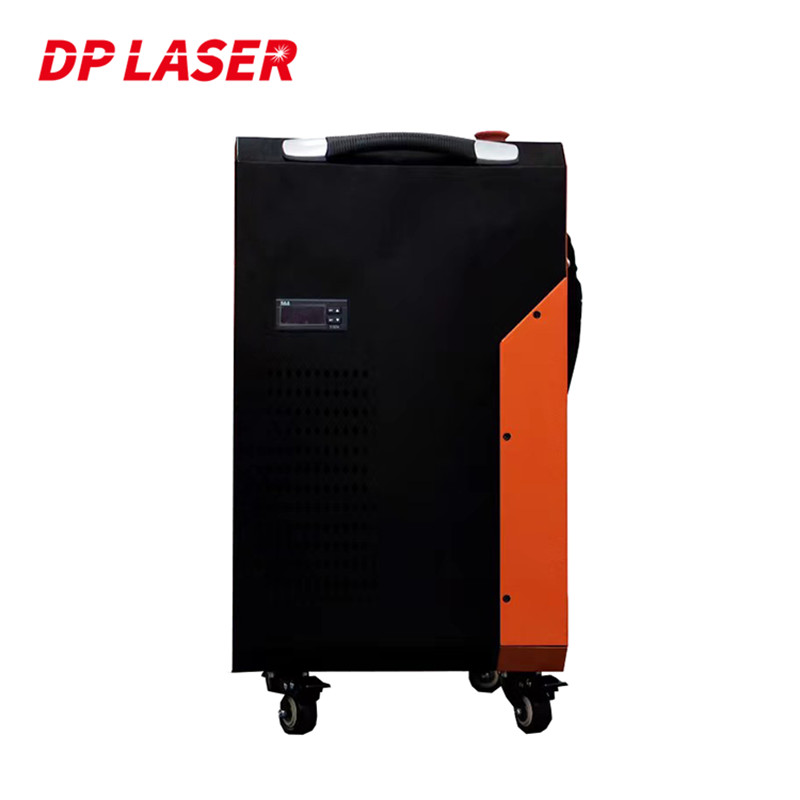

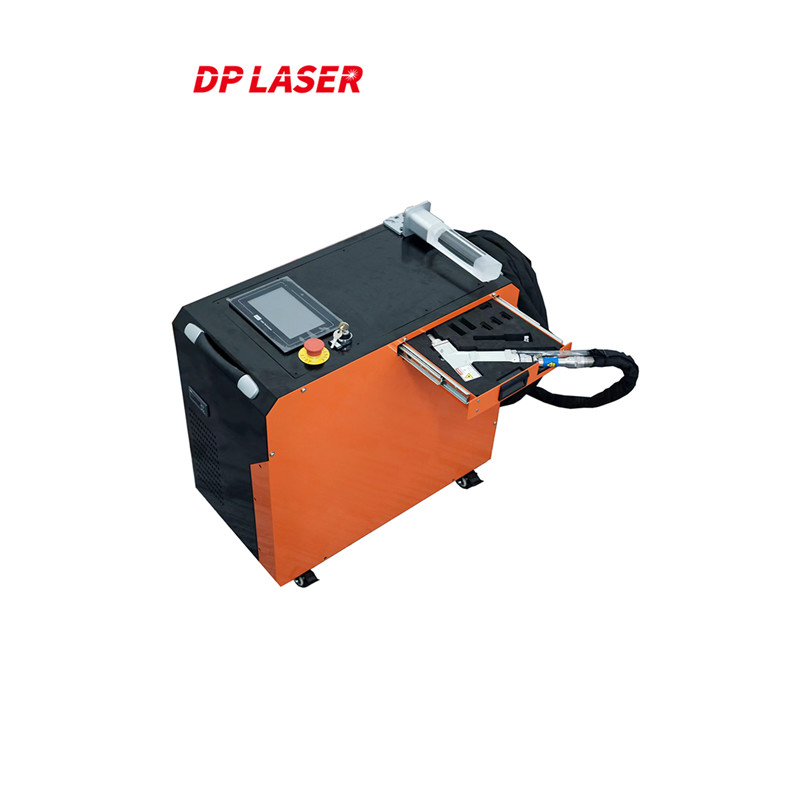

1000W Handheld Laser Welding Machine
| Place of Origin | China |
|---|---|
| Brand Name | DP LASER |
| Certification | CE SGS FDA TUV ROHS |
| Model Number | Laser Welding Machine |
| Minimum Order Quantity | 1 Set |
| Price | Please contact us |
| Packaging Details | Wooden boxes that meet international export standards |
| Delivery Time | 7-15 Work Days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 300 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Laser Source | Raycus Max IPG JPT Optional | Laser Type | Continuous Fiber Laser |
|---|---|---|---|
| Function | Metal Welding Cutting Cleaning | Laser Power | 1000W Optional |
| Laser Head | 3 IN 1 Laser Head | Machine Type | Handheld Machine |
| Laser Wavelength | 1070nm | Feature | Quick Speed High Accuracy |
| Power Supply | 110V/220V 50HZ | After-sales Service Provided | Overseas Engineers Provide Door-to-door Service |
| High Light | 1000W Handheld Laser Welding Machine,OEM Handheld Laser Welding Machine,1000W handheld laser welder |
||
Product Description
New Type 1000W Portable Mini 3 IN 1 Handheld Laser Welding Cleaning Cutting Machine
Basic introduction
The hand-held laser welding machine uses a continuous fiber laser as the light source and is equipped with a self-developed hand-held welding head. The shape, structure and man-machine are optimized based on humanization and work effectiveness. The hand-held welding head can be produced according to actual production. Customized, very suitable for non-standard production, water-cooled design, long-term welding does not get hot, small diameter, easy to hold, has the advantages of simple operation, beautiful welding seam, fast welding speed, and no consumables.
Machine Features
1. One machine, bringing together three functions: welding, cleaning and cutting, the conversion of each function is convenient and simple.
2. The hand-held cleaning head has a simple hand-held structure and is easy to carry. Equipped with a touch screen, it is convenient to switch parameters during work and simplify the operation. Weight 0.75kg, light to use without fatigue.
3.This laser equipment can be used for metal cleaning, rust removal, welding and cutting.
4. Redlight positioning, makes the work position is more accurate and beautiful.
5. The hand-held laser welding machine can work manually or be installed on a robot, so that the machine can work fully automatically and improve work efficiency.
| Model | DP-HL-1000 | DP-HL-1500 | DP-HL-2000 |
| Laser Power | 1000W | 1500W | 2000W |
| Laser Source | Raycus/Max/IPG | Raycus/Max/IPG | Raycus/Max/IPG |
| Laser Head | 3 IN 1 | 3 IN 1 | 3 IN 1 |
| Fiber Wire Length | 5/10 Meters | 5/10 Meters | 5/10 Meters |
| Laser Wavelength | 1070nm | 1070nm | 1070nm |
| Operate Mode | Continuation/Modulate | Continuation/Modulate | Continuation/Modulate |
| Water Chiller | Hanli | Hanli | Hanli |
| Spot Adjusting Range | 0.1-3mm | 0.1-3mm | 0.1-3mm |
| Repeating Precision | ±0.01mm | ±0.01mm | ±0.01mm |
| Cabinet Size | 744*941*1030mm | 744*941*1030mm | 750*1260*1110mm |
| Machine Weight | About 200KG | About 200KG | About 220KG |
| Voltage | 110V/220V/380V | 110V/220V/380V | 110V/220V/380V |
Handheld Fiber Laser Welder Applications
Used for welding various stainless steel mirror characters, stainless steel brushed characters, stainless steel spherical characters, stainless steel paint characters, stainless steel spray characters, stainless steel solid characters, stainless steel electroplating characters, stainless steel gold foil characters, precision stainless steel characters, titanium flat characters, titanium spherical characters Advertisement words, Seiko titanium gold fonts, flat copper fonts, spherical copper fonts, red copper fonts, red copper antique fonts, seiko aluminum fonts, metal paint fonts (stainless steel strips, iron strips, low carbon steel strips), and metal fonts are welded to form. Lighting and mold industries, optoelectronic communication devices, medical, electronics, copper parts, aluminum parts and small welding processing industries.
