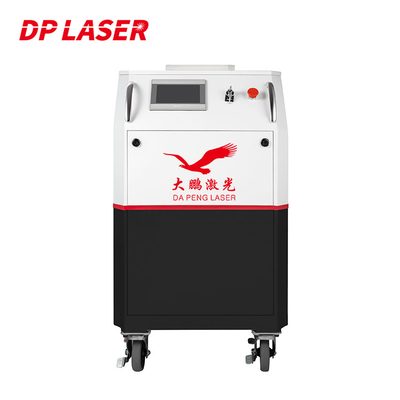

Handheld Pulse Fiber Laser Cleaning Machine 200w 220V Metal Products Cleaner
| Place of Origin | China |
|---|---|
| Brand Name | DP LASER |
| Certification | CE SGS FDA TUV ROHS |
| Model Number | Laser Cleaning Machine |
| Minimum Order Quantity | 1 Set |
| Price | Please contact us |
| Packaging Details | Wooden boxes that meet international export standards |
| Delivery Time | 7-15 Work Days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 300 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Laser Source | Raycus Max IPG JPT Optional | Laser Power | 200W Optional |
|---|---|---|---|
| Power Supply | 220V | Laser Type | Fiber Laser |
| Laser Source Type | Pulse Fiber Laser | Application | Metal Stainless Steel Cleaning |

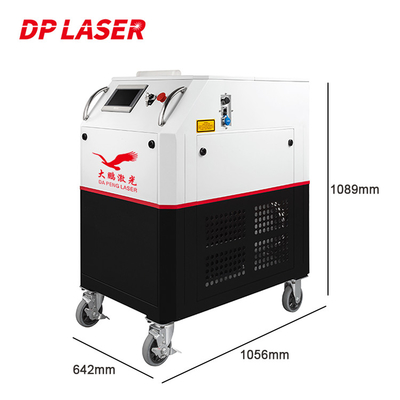

| Feature | NON-TOUCH CLEANING | Dimension(L*W*H) | 642*1056*1089mm |
| Keywords | Metal Cleaning Machine | After-sales Service Provided | Overseas Engineers Provide Door-to-door Service |
| High Light | laser cleaning machine 200w Handheld,laser cleaning machine 200w 220V,200w laser rust removal 220V |
||
Product Description
Handheld 200W Pulse Fiber Laser Cleaning Machine Metal Products Cleaner
Features
1. Non-contact processing, no consumables, no damage, no chemical pollution
2. Handheld laser cleaning head, light, convenient and easy to use
3. Right angles, corners and grooves can be cleaned
4. Derusting, decontamination, degreasing, deoxidation
5. High cleaning efficiency, high precision and high cleanliness
Applicable Material
Stainless Steel, Carbon steel, Aluminum, Wood, Metal
Application industry
It is mainly used for laser cleaning and surface laser pretreatment of metal surfaces such as precision molds, metal products, ships, automobiles, medical equipment, sheet metal/spraying, etc.
| Laser Power | 200W | 300W |
| Laser Source | Raycus/IPG | Raycus/IPG |
| Central Wavelength | 1064±5 | 1064±5 |
| Power Regulation Range | 10-100 | 10-100 |
| Outpit Power Instability | ≤5 | ≤5 |
| Output Power Instability | 10-50 | 20-50 |
| Pulse Length | 90-130 | 130-140 |
| Maximum Monopulse Energy | 10 | 12.5 |
| Fiber Length | 5/10m | 5/10m |
| Laser Protection Class | 4 | 4 |
| Cooling Type | Water Cooling | Water Cooling |
| Dimensions | 642*1056*1089mm | 642*1056*1089mm |
| Cleaning Performance Parameters | |||||
| Based material | Surface | Effective focal length | Standard cleaning efficiency | High cleaning efficiency | Result |
| Cast iron | Heavy rust 0.08mm | >35mm | 2000mm/m | 3000mm/m | Clean, no harm for base material |
| Mild steel | Middle rust 0.5mm | >45mm | 1800mm/m | 2400mm/m | Clean, no harm for base material |
| Stainless steel | Oil, light rust | >50mm | 2000mm/m | 3000mm/m | Clean, no harm for base material |
| Mould gear | Middle oil with scrap iron | >45mm | 2000mm/m | 2300mm/m | Clean, no harm for base material |
| Aluminum | oxide | >35mm | 2000mm/m | 2300mm/m | Clean, no harm for base material |
DP Laser cleaning machine has advanced technology, with humanized design, small size, flexible operation, low energy consumption, environmental protection and other characteristics, with certain practicability and operability. Customers can preset the cleaning mode through the software, and can directly switch the mode to operate without adjusting the parameters, and start cleaning without chemical reagents, media, dust and water. Through automatic focusing, cleaning the surface of the object, and removing resin, stains, corrosion, coatings, paints, etc. on the surface of the object, the cleanliness is high.
