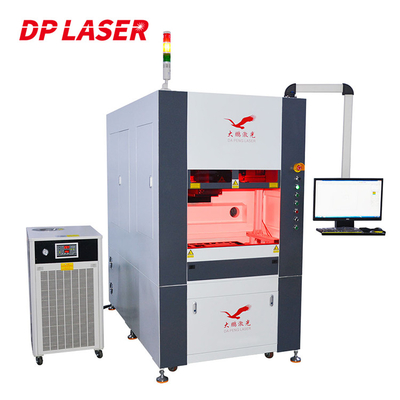

3D Dynamic Focus Enclosed Marking Co2 Laser Cutting Machine Large Format Acrylic Glass

  • 3D Dynamic Focus Enclosed Marking Co2 Laser Cutting Machine Large Format Acrylic Glass
Place of Origin China
Brand Name DP LASER
Certification CE SGS FDA TUV ROHS
Model Number Laser Marking Machine
Minimum Order Quantity 1 Set
Price Please contact us
Packaging Details Wooden boxes that meet international export standards
Delivery Time 7-15 Work Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 300 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Laser Source Coherent Access Synrad Laser Source Laser Type CO2
Laser Power 60W-250W Optional Power Supply 110V/220V Optional
Marking Speed 0-12000mm/s Condition New
Working Area 600mm*600mm (optional) Function Marking Logo Non Metal
Weight (KG) 200 KG After-sales Service Provided Overseas Engineers Provide Door-to-door Service
High Light

3D co2 laser cutting machine

,

co2 laser cutting machine 12000mm/s
Leave a Message
Product Description

3D Dynamic Focus Enclosed Large Format Wooden Leather Paper Acrylic Glass CO2 Laser Marking Cutting Machine



Basic introduction

The CO2 laser marking machine adopts a gas laser in the infrared light band and 10.64μm. The CO2 gas is charged into the high-voltage discharge tube to generate a glow discharge, so that the gas molecules emit laser light, and the laser energy is amplified to form a laser beam for material processing. , the laser beam vaporizes the surface of the processed body to achieve the purpose of engraving.



Features

1. Adopt CO2 gas laser tube, beam expander focusing optical system and high-speed galvanometer scanner, stable performance, long life, maintenance-free.


2. Can be widely used in electronic components, electrical components, medicine, food, handicrafts, leather products, plastic products and other industries.


3. The machine can be used alone or installed on the assembly line for joint use.


4. The printing effect and marking speed can meet the requirements of high efficiency, high speed and high reliability of modern large-scale production.



Applicable Industries

Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company

3D Dynamic Focus Enclosed Marking Co2 Laser Cutting Machine Large Format Acrylic Glass 0

3D Dynamic Focus Enclosed Marking Co2 Laser Cutting Machine Large Format Acrylic Glass 1

3D Dynamic Focus Enclosed Marking Co2 Laser Cutting Machine Large Format Acrylic Glass 2

Laser Power 60W 100W 120W 150W 200W 250W Optional
Laser Source Coherent ACCESS Synrad Optional
Control Board BJJCZ
Control Software EZCAD
Galvo Head 3D Galvo Head
F-theta Lens 600mm*600mm Optional
Laser Lifespan 20,000 Hours
Laser Wavelength 10640nm
Marking Speed 0-12000mm/s
Cooling Mode Water Cooling
Supported characters Any fonts downloaded on computer
Supported format DWG,DFX,BMP,JPG,PNG,TIF,PCX, TAG, GIF, PLT etc..
Supported Bar code CODE39, EAN, CODE128, Data Matrix, PDF417 etc..
Voltage 110V/220V/380V Optional

3D Dynamic Focus Enclosed Marking Co2 Laser Cutting Machine Large Format Acrylic Glass 3

3D Dynamic Focus Enclosed Marking Co2 Laser Cutting Machine Large Format Acrylic Glass 4

3D Dynamic Focus Enclosed Marking Co2 Laser Cutting Machine Large Format Acrylic Glass 5
