20W 30W Raycus Max IPG Portable Laser Marking Machine Mopa Laser Engraver
Place of Origin | China |
---|---|
Brand Name | DP LASER |
Certification | CE SGS FDA TUV ROHS |
Model Number | Laser Marking Machine |
Minimum Order Quantity | 1 Set |
Price | Please contact us |
Packaging Details | Wooden boxes that meet international export standards |
Delivery Time | 7-15 Work Days |
Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability | 300 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xLaser Source | Raycus MAX IPG JPT Laser Source | Laser Type | Fiber Laser |
---|---|---|---|
Laser Power | 20W 30W | Power Supply | 110V/220V Optional |
Mode Of Operation | Pulsed | Feature | Air-cooled |
Configuration | Hand-held | Applicable Material | Metal Nonmetal Materials |
Function | Marking Logo Metal Non Metal | After-sales Service Provided | Overseas Engineers Provide Door-to-door Service |
High Light | Raycus portable laser marking machine,20W portable laser marking machine,30W mopa laser engraver |

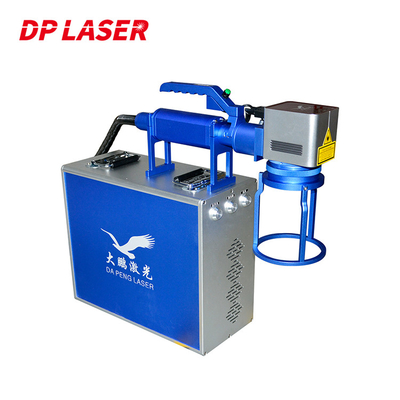

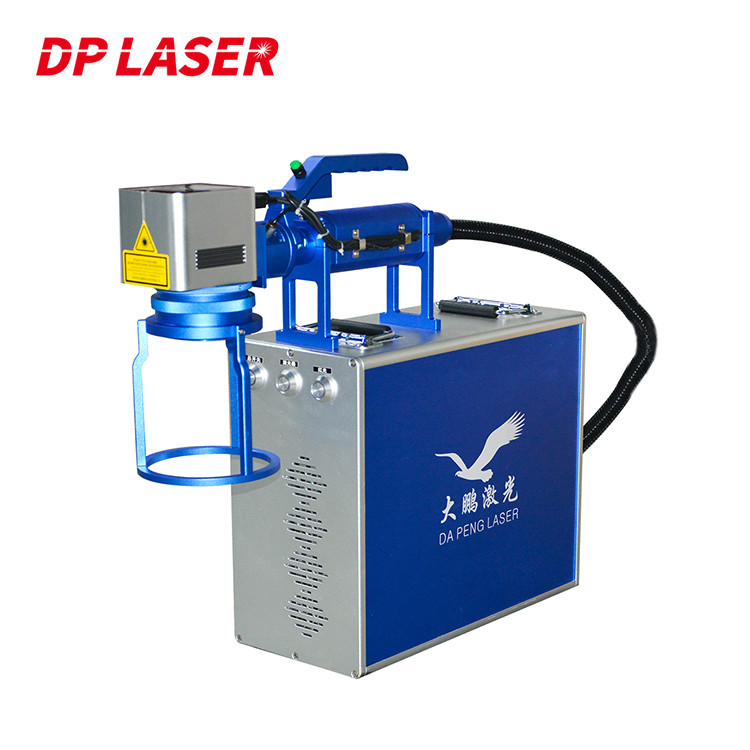

20W 30W Raycus Max IPG Mopa Handheld Light Path Mini Portable Fiber Laser Marking Machine
Basic introduction
Portable fiber laser marking machine is also known as hand-held fiber laser marking machine. It is designed to solve the problem of laser marking of existing large parts. The size of the whole machine and the main computer box is small and convenient, which can be hand-held for operation, and can be used for laser marking of large mechanical parts in any direction.
Features
1. Using a pulsed fiber laser, when the pulse width is less than 30ns, the output peak power is as high as 25kW, and it has a high beam quality M2<1.5 close to the diffraction limit.
2. The laser all-fiber structure design ensures the high reliability of the laser without any optical components for collimation adjustment.
3. The integrated design of the system makes it more convenient for customers to use and provides ideal solutions for various industrial applications.
4. Long service life, small size, no need for a huge water cooling system, just simple air cooling. It can also work normally in harsh environments such as shock, vibration, high temperature or dust.
5. The processing speed is 2-3 times that of the traditional laser marking machine, excellent beam quality, small light spot, narrow marking line width, suitable for fine marking.
6. Low cost of use, power saving and energy saving, the power of the whole machine is only 500W. Compared with lamp pump and semiconductor laser marking machine, it can save 20,000-30,000 yuan in electricity bills per year.
7. Integrated modular design, easy maintenance, small size. Save your valuable factory space.
Applicable Industries
Fiber laser marking machine has a wide range of applications, especially suitable for marking and engraving of hardware tools, knives and kitchenware, plastic products, computer keyboards, metal accessories, buttons, integrated circuits, packaging bottles and cans, spectacle frames, sanitary ware faucets and other products. The markings are clear and beautiful and never fade away. The environmental requirements are simple, and there is no need for constant temperature and humidity and water cooling facilities. Minimal consumables and minimal maintenance. The software functions are super powerful, easy to learn and easy to use. Small size, light weight, small footprint, can be easily installed on the production line for online marking.
Laser Power | 20W 30W Optional |
Laser Source | Raycus/Max/IPG/JPT MOPA |
Control Board | BJJCZ |
Control Software | EZCAD |
Galvo Head | Sino-Galvo |
F-theta Lens | 100mm-400mnm Optional |
Laser Lifespan | 100,000 Hours |
Laser Wavelength | 1064nm |
Marking Speed | 0-8000mm/s |
Power Consumption | ≤800W |
Cooling Mode | Air Cooling |
Supported characters | Any fonts downloaded on computer |
Supported format | DWG,DFX,BMP,JPG,PNG,TIF,PCX, TAG, GIF, PLT etc.. |
Supported Bar code | CODE39, EAN, CODE128, Data Matrix, PDF417 etc.. |
Voltage | 110V/220V Optional |
