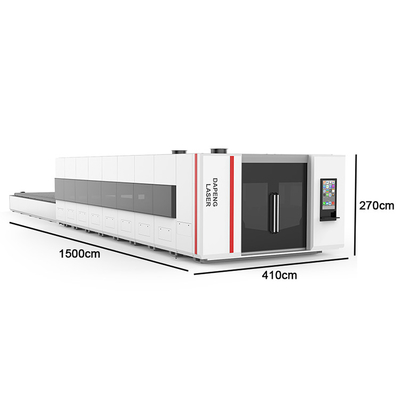

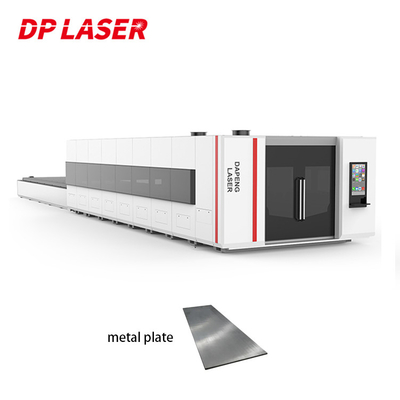

6025 8000W Metal CNC Fiber Laser Cutting Machine High Power Fully Enclosed 300m/min
| Place of Origin | China |
|---|---|
| Brand Name | DP LASER |
| Certification | CE SGS FDA TUV ROHS |
| Model Number | Laser Cutting Machine |
| Minimum Order Quantity | 1 Set |
| Price | Please contact us |
| Packaging Details | Wooden boxes that meet international export standards |
| Delivery Time | 10-30 Work Days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 300 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Laser Source | Raycus MAX IPG NLIGHT Laser Source | Laser Power | 8000W |
|---|---|---|---|
| Laser Head | PRECITEC RAYTOOL WSX OSPRI (Optional) | Control System | Hypcut |
| Condition | New | Feature | Fully-enclosed |
| Cutting Speed | 300m/min | Power Supply | 380V/50HZ |
| Weight (KG) | 8000 KG | After-sales Service Provided | Overseas Engineers Provide Door-to-door Service |
| High Light | Fiber Laser Cutting Machine 300m/min,8000W Fiber Laser Cutting Machine,6025 high power laser cutting machine |
||
Product Description
6025 8000W Metal CNC Fiber Laser Cutting Machine High Power Fully Enclosed
Basic introduction
Full-protection high-speed large-format laser metal cutting machine series adopts full-enclosed safety design, the maximum working format is 2500*6000mm, full-closed-loop laser cutting control system and automatic focusing function, with high-speed perforation and automatic edge-finding functions.
Features
1.High-rigidity heavy-duty machine tool to reduce vibration during high-speed cutting;
2.The gantry double-drive structure and the rack-and-pinion transmission system imported from Germany improve the production efficiency of customers;
3.High-performance cast aluminum beam, after finite element analysis, realizes high-acceleration arc cutting;
4.Fully closed-loop laser cutting control system and automatic focusing function, with high-speed perforation and automatic edge-finding functions.
Application industry
Used in sheet metal processing, aviation, aerospace, electronics, electrical appliances, subway accessories, automobiles, food machinery, textile machinery, construction machinery, precision accessories, ships, metallurgical equipment, elevators, household appliances, craft gifts, tool processing, decoration, advertising , metal external processing, kitchen utensils processing and other manufacturing and processing industries.
Features of DP LASER laser cutting machine:
1. The one-piece casting body has higher stability and higher precision. The gantry structure and one-piece casting beam are adopted to achieve higher rigidity, stability and impact resistance.
2. High-performance laser source and stable operating system make the cutting effect best.
3. The whole machine has a complete cooling system, lubrication system and dust removal system to ensure stable, efficient and durable operation of the machine.
4. The machine has an automatic height adjustment function to keep the focal length constant and the cutting quality stable.
5. The machine is used to cut a variety of metals, and the cutting quality is excellent and stable.
6. Professional CAD/CAM automatic programming software and automatic nesting software can save raw materials to the greatest extent.
7. Access the CNC system through the Ethernet interface to realize communication and remote monitoring during the laser cutting process. Has a complete cooling system, lubrication system and dust removal system
| Working Area | 2500*1300 | 3000*1500 | 4000*1500 | 4000*2000 | 6000*1500 |
| X/Y Axis Positioning Accuracy | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm |
| X/Y Axis Repositioning Accuracy | ±0.02mm | ±0.02mm | ±0.02mm | ±0.02mm | ±0.02mm |
| Max. Moving Speed | 150m/min | 150m/min | 150m/min | 150m/min | 150m/min |
| Max.Acc Speec | 1.5G | 1.5G | 1.5G | 1.5G | 1.5G |
| Laser Power | 1000W-1500W | 1000W-6000W | 1500W-6000W | 1500W-6000W | 1500W-6000W |
| Laser Source | RAYCUS IPG nLIGHT MAX (Optional) | ||||
| Laser Cutting Head | PRECITEC RAYTOOL WSX OSPRI (Optional) | ||||
| Working Area | 6000*2000 | 6000*2500 | 8000*2500 | 10000*2500 | 12000*2500 |
| X/Y Axis Positioning Accuracy | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm |
| X/Y Axis Repositioning Accuracy | ±0.02mm | ±0.02mm | ±0.02mm | ±0.02mm | ±0.02mm |
| Max. Moving Speed | 300m/min | 300m/min | 300m/min | 300m/min | 300m/min |
| Max.Acc Speec | 5.0G | 5.0G | 5.0G | 5.0G | 5.0G |
| Laser Power | 3000W-12000W | 3000W-20000W | 6000W-20000W | 6000W-20000W | 6000W-20000W |
| Laser Source | RAYCUS IPG nLIGHT MAX (Optional) | ||||
| Laser Cutting Head | PRECITEC RAYTOOL WSX OSPRI (Optional) | ||||
The metal laser cutting machine adopts a reinforced welding bed, which undergoes tempering treatment and vibration aging treatment to eliminate stress, and then performs fine milling processing on a large-scale gantry milling machine to ensure long-term stability and no deformation of the machine tool. It is equipped with high-performance original packaged fiber lasers with stable performance. , The service life can reach 100,000 hours. It adopts imported guide drive and servo motor, and can use auxiliary gas (oxygen, argon, nitrogen) to cut various metal sheets, easy to operate, high precision, high speed and high efficiency.
