Fully Enclosed Metal CNC 10kw Laser Cutting Machine 6025 High Power Hypcut

Place of Origin China
Brand Name DP LASER
Certification CE SGS FDA TUV ROHS
Model Number Laser Cutting Machine
Minimum Order Quantity 1 Set
Price Please contact us
Packaging Details Wooden boxes that meet international export standards
Delivery Time 10-30 Work Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 300 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Laser Source Raycus MAX IPG NLIGHT Laser Source Laser Power 10000W
Laser Head PRECITEC RAYTOOL WSX OSPRI (Optional) Control System Hypcut
Function Cutting Metal Materials Feature Fully-enclosed
Cutting Area 4-axis Cutting Thickness 0-80mm
Weight (KG) 8000 KG After-sales Service Provided Overseas Engineers Provide Door-to-door Service
High Light

10kw laser cutting machine Hypcut

,

10kw fiber laser cutter 6025

,

6025 10kw fiber laser cutting machine

Leave a Message
Product Description

6025 10000W Metal CNC Fiber Laser Cutting Machine High Power Fully Enclosed



Basic introduction
Full-protection high-speed large-format laser metal cutting machine series adopts full-enclosed safety design, the maximum working format is 2500*6000mm, full-closed-loop laser cutting control system and automatic focusing function, with high-speed perforation and automatic edge-finding functions.



Features

1.High-rigidity heavy-duty machine tool to reduce vibration during high-speed cutting;

2.The gantry double-drive structure and the rack-and-pinion transmission system imported from Germany improve the production efficiency of customers;

3.High-performance cast aluminum beam, after finite element analysis, realizes high-acceleration arc cutting;

4.Fully closed-loop laser cutting control system and automatic focusing function, with high-speed perforation and automatic edge-finding functions.

Application industry
Used in sheet metal processing, aviation, aerospace, electronics, electrical appliances, subway accessories, automobiles, food machinery, textile machinery, construction machinery, precision accessories, ships, metallurgical equipment, elevators, household appliances, craft gifts, tool processing, decoration, advertising , metal external processing, kitchen utensils processing and other manufacturing and processing industries.

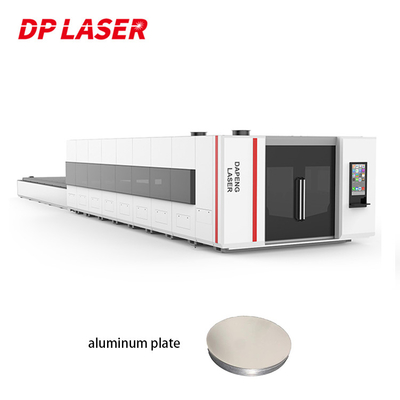

Fully Enclosed Metal CNC 10kw Laser Cutting Machine 6025 High Power Hypcut 0



Features of DP LASER laser cutting machine:
1. The one-piece casting body has higher stability and higher precision. The gantry structure and one-piece casting beam are adopted to achieve higher rigidity, stability and impact resistance.
2. High-performance laser source and stable operating system make the cutting effect best.
3. The whole machine has a complete cooling system, lubrication system and dust removal system to ensure stable, efficient and durable operation of the machine.
4. The machine has an automatic height adjustment function to keep the focal length constant and the cutting quality stable.
5. The machine is used to cut a variety of metals, and the cutting quality is excellent and stable.
6. Professional CAD/CAM automatic programming software and automatic nesting software can save raw materials to the greatest extent.
7. Access the CNC system through the Ethernet interface to realize communication and remote monitoring during the laser cutting process. Has a complete cooling system, lubrication system and dust removal system

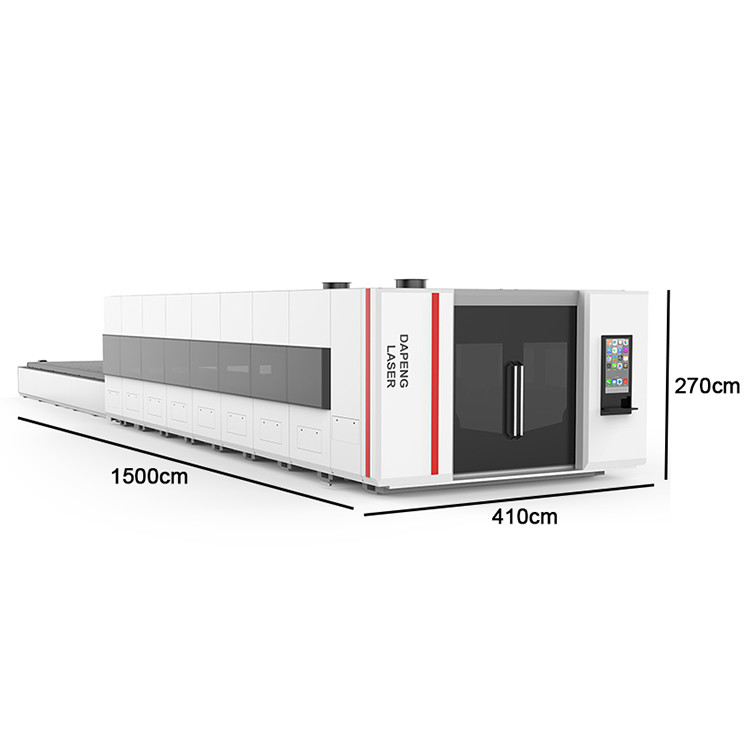

Fully Enclosed Metal CNC 10kw Laser Cutting Machine 6025 High Power Hypcut 1

Working Area 2500*1300 3000*1500 4000*1500 4000*2000 6000*1500
X/Y Axis Positioning Accuracy ±0.03mm ±0.03mm ±0.03mm ±0.03mm ±0.03mm
X/Y Axis Repositioning Accuracy ±0.02mm ±0.02mm ±0.02mm ±0.02mm ±0.02mm
Max. Moving Speed 150m/min 150m/min 150m/min 150m/min 150m/min
Max.Acc Speec 1.5G 1.5G 1.5G 1.5G 1.5G
Laser Power 1000W-1500W 1000W-6000W 1500W-6000W 1500W-6000W 1500W-6000W
Laser Source RAYCUS IPG nLIGHT MAX (Optional)
Laser Cutting Head PRECITEC RAYTOOL WSX OSPRI (Optional)

Working Area 6000*2000 6000*2500 8000*2500 10000*2500 12000*2500
X/Y Axis Positioning Accuracy ±0.03mm ±0.03mm ±0.03mm ±0.03mm ±0.03mm
X/Y Axis Repositioning Accuracy ±0.02mm ±0.02mm ±0.02mm ±0.02mm ±0.02mm
Max. Moving Speed 300m/min 300m/min 300m/min 300m/min 300m/min
Max.Acc Speec 5.0G 5.0G 5.0G 5.0G 5.0G
Laser Power 3000W-12000W 3000W-20000W 6000W-20000W 6000W-20000W 6000W-20000W
Laser Source RAYCUS IPG nLIGHT MAX (Optional)
Laser Cutting Head PRECITEC RAYTOOL WSX OSPRI (Optional)

The metal laser cutting machine adopts a reinforced welding bed, which undergoes tempering treatment and vibration aging treatment to eliminate stress, and then performs fine milling processing on a large-scale gantry milling machine to ensure long-term stability and no deformation of the machine tool. It is equipped with high-performance original packaged fiber lasers with stable performance. , The service life can reach 100,000 hours. It adopts imported guide drive and servo motor, and can use auxiliary gas (oxygen, argon, nitrogen) to cut various metal sheets, easy to operate, high precision, high speed and high efficiency.

Fully Enclosed Metal CNC 10kw Laser Cutting Machine 6025 High Power Hypcut 2Fully Enclosed Metal CNC 10kw Laser Cutting Machine 6025 High Power Hypcut 3

Fully Enclosed Metal CNC 10kw Laser Cutting Machine 6025 High Power Hypcut 4
