Metal Sheet CNC 3015 Laser Cutter Machine Single Bed 1000 Watt Laser Cutter

Place of Origin China
Brand Name DP LASER
Certification CE SGS FDA TUV ROHS
Model Number Laser Cutting Machine
Minimum Order Quantity 1 Set
Price Please contact us
Packaging Details Wooden boxes that meet international export standards
Delivery Time 10-30 Work Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 300 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Laser Source Raycus Max IPG NLIGHT Optional Laser Power 1000W-20000W
Laser Type Fiber Laser Power Supply 380V/50HZ
Laser Head Raytools Precitec WSX OSPRI Optional Condition New
Control System Cypcut Hypcut Beckhoff Optional Configuration 4-axis
Weight (KG) 4000 KG After-sales Service Provided Overseas Engineers Provide Door-to-door Service
High Light

CNC 3015 Laser Cutter

,

3015 Laser Cutter Single Bed

,

3015 1000 watt laser cutter

Leave a Message
Product Description

Single Bed 3015 CNC Fiber Laser Cutting Machine For Metal Sheet Cutting



Basic introduction
The fiber laser cutting machine adopts the international advanced imported fiber laser, which can gather on the surface of the workpiece and output a laser beam with high energy density, so that the area on the workpiece irradiated by the ultra-fine focus spot is instantly melted and vaporized, and the spot is irradiated by moving the spot through the numerical control mechanical system. position to achieve automatic cutting. It is a high-tech equipment integrating advanced fiber laser technology, numerical control technology and precision mechanical technology. When cutting metal plates such as stainless steel laser cutting and carbon steel laser cutting, it has the characteristics of high speed, high precision, high efficiency and high cost performance.



Features
1. Interactive automatic conveying system, high processing efficiency.


2. Oversized worktable, suitable for large area cutting.


3. Sturdy anti-vibration console with strong pressure resistance.


4. The beam is concentrated, the spot is delicate, and the penetration is strong.



Application industry

Used in sheet metal processing, aviation, aerospace, electronics, electrical appliances, subway accessories, automobiles, food machinery, textile machinery, construction machinery, precision accessories, ships, metallurgical equipment, elevators, household appliances, craft gifts, tool processing, decoration, advertising , metal external processing, kitchen utensils processing and other manufacturing and processing industries.

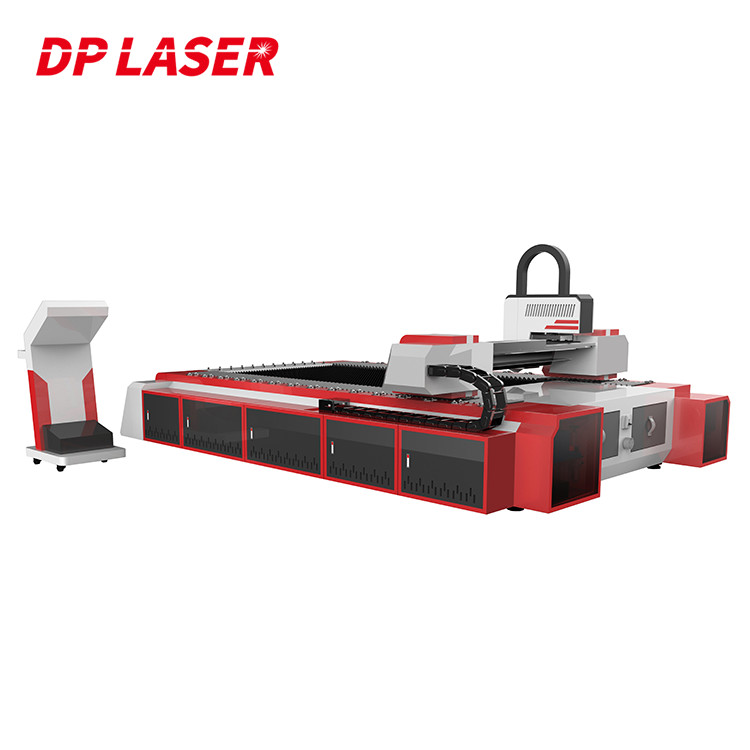

Metal Sheet CNC 3015 Laser Cutter Machine Single Bed 1000 Watt Laser Cutter 0



Features of DP LASER Laser Cutting Machine
1. Integrated casting machine body with higher stability for higher precision
Application of gantry structure and integrated cast cross-girder to achieve higher rigidity, stability, shock resistance.
2. High-performance laser source and stable operating system which make the best cutting effect.
3. The machine owns perfect cooling system, lubrication system and dust removal system, to ensure that it can operate stably, efficiently and durably.
4. The machine is capable of automatic height adjustment to maintain constant focal length and stable cutting quality.
5. The machine is used for cutting a variety of metals with excellent and stable cutting quality.
6. The specialized CAD / CAM automatic programming software and automatic nesting software aim to maximally save raw materials.
7. Access to the CNC system through Ethernet interface makes communication and remote monitoring possible during the laser cutting process. owns perfect cooling system, lubrication system and dust removal syst

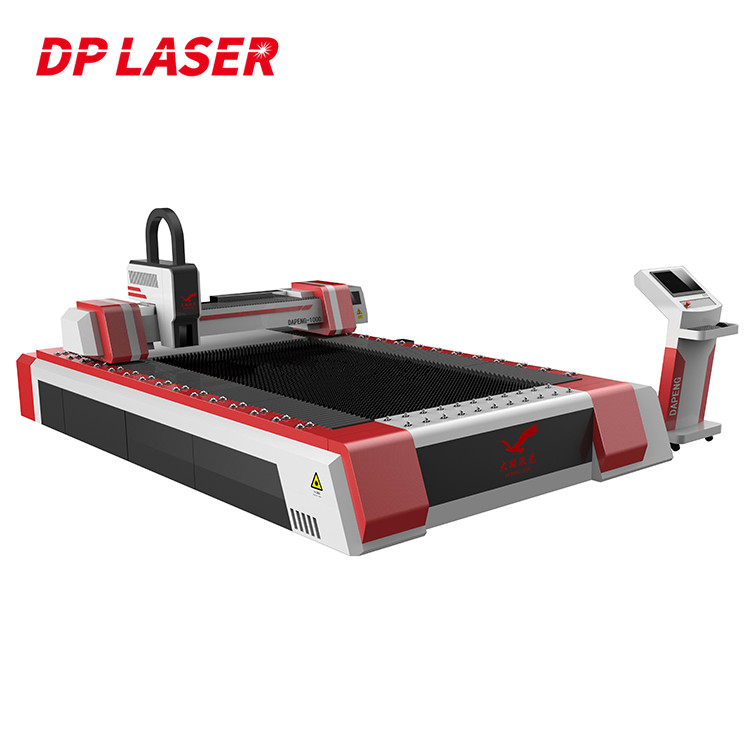

Metal Sheet CNC 3015 Laser Cutter Machine Single Bed 1000 Watt Laser Cutter 1

Working Area 2500*1300 3000*1500 4000*1500 4000*2000 6000*1500
X/Y Axis Positioning Accuracy ±0.03mm ±0.03mm ±0.03mm ±0.03mm ±0.03mm
X/Y Axis Repositioning Accuracy ±0.02mm ±0.02mm ±0.02mm ±0.02mm ±0.02mm
Max. Moving Speed 150m/min 150m/min 150m/min 150m/min 150m/min
Max.Acc Speec 1.5G 1.5G 1.5G 1.5G 1.5G
Laser Power 1000W-1500W 1000W-6000W 1500W-6000W 1500W-6000W 1500W-6000W
Laser Source RAYCUS IPG nLIGHT MAX (Optional)
Laser Cutting Head PRECITEC RAYTOOL WSX OSPRI (Optional)

Working Area 6000*2000 6000*2500 8000*2500 10000*2500 12000*2500
X/Y Axis Positioning Accuracy ±0.03mm ±0.03mm ±0.03mm ±0.03mm ±0.03mm
X/Y Axis Repositioning Accuracy ±0.02mm ±0.02mm ±0.02mm ±0.02mm ±0.02mm
Max. Moving Speed 300m/min 300m/min 300m/min 300m/min 300m/min
Max.Acc Speec 5.0G 5.0G 5.0G 5.0G 5.0G
Laser Power 3000W-12000W 3000W-20000W 6000W-20000W 6000W-20000W 6000W-20000W
Laser Source RAYCUS IPG nLIGHT MAX (Optional)
Laser Cutting Head PRECITEC RAYTOOL WSX OSPRI (Optional)



The metal laser cutting machine adopts a reinforced welding bed, which undergoes tempering treatment and vibration aging treatment to eliminate stress, and then performs fine milling processing on a large-scale gantry milling machine to ensure long-term stability and no deformation of the machine tool. It is equipped with high-performance original packaged fiber lasers with stable performance. , The service life can reach 100,000 hours. It adopts imported guide drive and servo motor, and can use auxiliary gas (oxygen, argon, nitrogen) to cut various metal sheets, easy to operate, high precision, high speed and high efficiency.

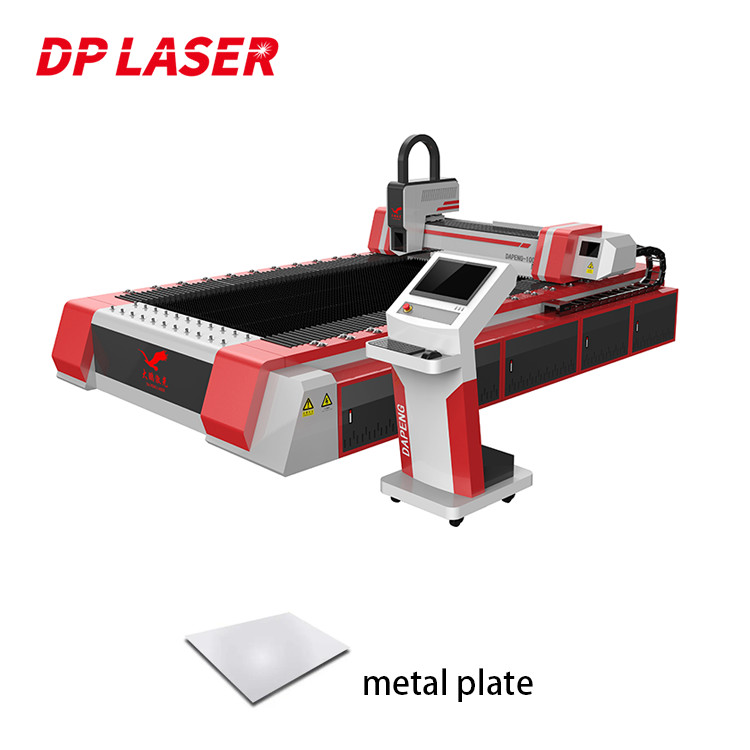

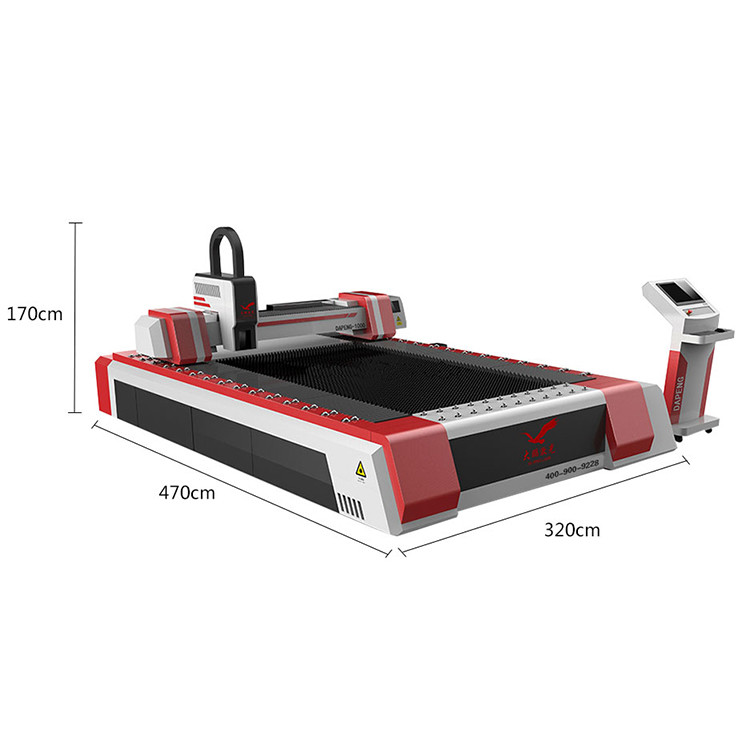

Metal Sheet CNC 3015 Laser Cutter Machine Single Bed 1000 Watt Laser Cutter 2Metal Sheet CNC 3015 Laser Cutter Machine Single Bed 1000 Watt Laser Cutter 3Metal Sheet CNC 3015 Laser Cutter Machine Single Bed 1000 Watt Laser Cutter 4
