1kw 2kw Laser Cutting Machine Exchange Platform 4020 CNC For Metal

Place of Origin China
Brand Name DP LASER
Certification CE SGS FDA TUV ROHS
Model Number Laser Cutting Machine
Minimum Order Quantity 1 Set
Price Please contact us
Packaging Details Wooden boxes that meet international export standards
Delivery Time 10-30 Work Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 300 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Laser Source Raycus MAX IPG NLIGHT Laser Source Laser Type Fiber Laser
Laser Power 1000W-20000W Condition New
Core Components Laser Source Cutting Speed 150m/min
Cutting Thickness 0-80mm Power Supply 380V/50HZ
Weight (KG) 7000 KG After-sales Service Provided Overseas Engineers Provide Door-to-door Service
High Light

4020 CNC Fiber Laser Cutting Machine

,

4020 1kw laser cutting machine

,

4020 2kw laser cutting machine

Leave a Message
Product Description

Exchange Platform 4020 CNC Fiber Laser Cutting Machine For Metal Laser Cutting



Basic introduction
The integrated structure design of the interactive fiber laser cutting machine series models, the overall layout is compact and reasonable, and the floor area is small.



Features

1.Adopt gantry double rack and pinion, double servo motor transmission structure, high inertia and large torque output, the maximum acceleration can reach 1.0G, effectively improve the production efficiency of customers;

2.It adopts imported large-scale gantry machine tool for precision machining, and uses high-strength square tube welding process. The geometric accuracy of the machine tool is within 0.03mm, with high precision and stability;

3.The laser head is equipped with automatic focusing function, and the perforation time is reduced by 80% compared with ordinary cutting heads, especially suitable for high-speed thick plate cutting and highly reflective material cutting;

4.With function detection, automatic diagnosis, fault isolation, automatic fault diagnosis and data display functions, it can quickly eliminate faults and effectively reduce after-sales service costs;

5.Professional laser cutting software, with graphics layout and sharp corner smoothing functions, can achieve high-speed drilling and fast cutting functions;

6.Configure the bus control system, super anti-interference ability and superior stability.



Application industry

Widely used in kitchen appliances, sheet metal chassis cabinets, mechanical equipment, electrical equipment, lighting hardware, advertising signs, auto parts, display equipment, various metal products, sheet metal cutting and other industries. It can cut various metal plates and pipes, mainly used for rapid cutting of stainless steel, carbon steel, manganese steel, galvanized sheet, various alloy sheets, rare metals and other materials.

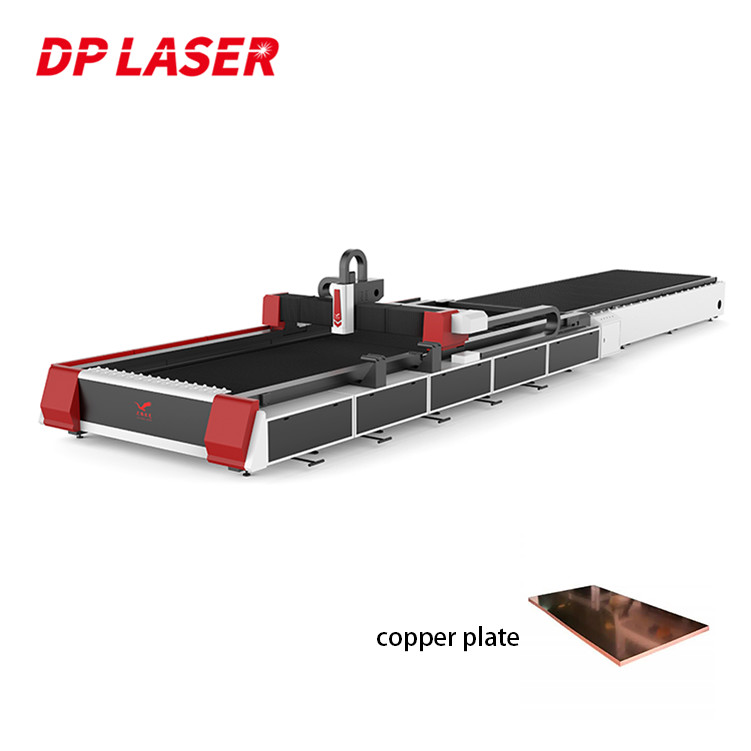

1kw 2kw Laser Cutting Machine Exchange Platform 4020 CNC For Metal 0

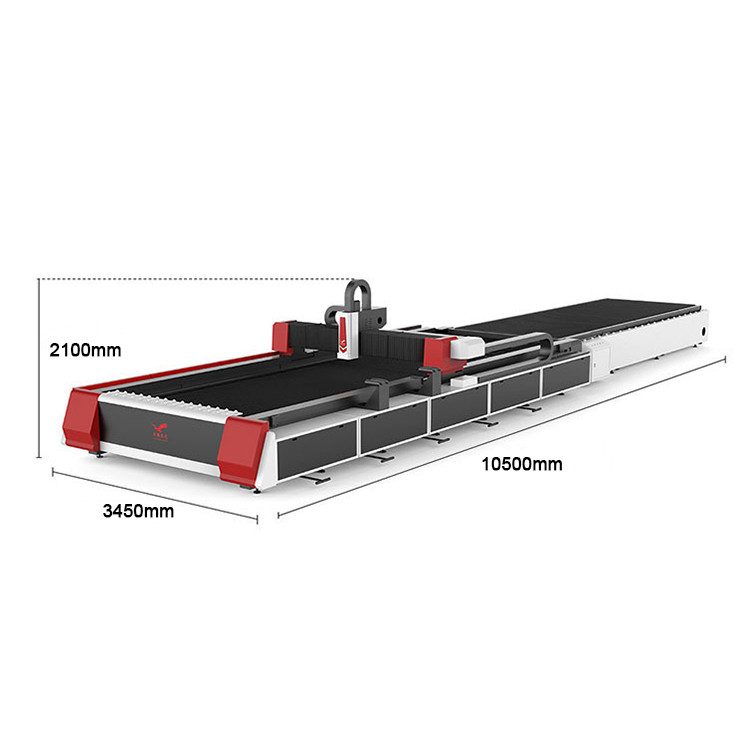

1kw 2kw Laser Cutting Machine Exchange Platform 4020 CNC For Metal 1



Features of DP LASER Laser Cutting Machine
1. Integrated casting machine body with higher stability for higher precision.
Application of gantry structure and integrated cast cross-girder to achieve higher rigidity, stability, shock resistance.
2. High-performance laser source and stable operating system which make the best cutting effect.
3. The machine owns perfect cooling system, lubrication system and dust removal system, to ensure that it can operate stably, efficiently and durably.
4. The machine is capable of automatic height adjustment to maintain constant focal length and stable cutting quality.
5. The machine is used for cutting a variety of metals with excellent and stable cutting quality.
6. The specialized CAD / CAM automatic programming software and automatic nesting software aim to maximally save raw materials.
7. Access to the CNC system through Ethernet interface makes communication and remote monitoring possible during the laser cutting process owns perfect cooling system, lubrication system and dust removal system.

1kw 2kw Laser Cutting Machine Exchange Platform 4020 CNC For Metal 2

Working Area 2500*1300 3000*1500 4000*1500 4000*2000 6000*1500
X/Y Axis Positioning Accuracy ±0.03mm ±0.03mm ±0.03mm ±0.03mm ±0.03mm
X/Y Axis Repositioning Accuracy ±0.02mm ±0.02mm ±0.02mm ±0.02mm ±0.02mm
Max. Moving Speed 150m/min 150m/min 150m/min 150m/min 150m/min
Max.Acc Speec 1.5G 1.5G 1.5G 1.5G 1.5G
Laser Power 1000W-1500W 1000W-6000W 1500W-6000W 1500W-6000W 1500W-6000W
Laser Source RAYCUS IPG nLIGHT MAX (Optional)
Laser Cutting Head PRECITEC RAYTOOL WSX OSPRI (Optional)

Working Area 6000*2000 6000*2500 8000*2500 10000*2500 12000*2500
X/Y Axis Positioning Accuracy ±0.03mm ±0.03mm ±0.03mm ±0.03mm ±0.03mm
X/Y Axis Repositioning Accuracy ±0.02mm ±0.02mm ±0.02mm ±0.02mm ±0.02mm
Max. Moving Speed 300m/min 300m/min 300m/min 300m/min 300m/min
Max.Acc Speec 5.0G 5.0G 5.0G 5.0G 5.0G
Laser Power 3000W-12000W 3000W-20000W 6000W-20000W 6000W-20000W 6000W-20000W
Laser Source RAYCUS IPG nLIGHT MAX (Optional)
Laser Cutting Head PRECITEC RAYTOOL WSX OSPRI (Optional)

The metal laser cutting machine adopts a reinforced welding bed, which undergoes tempering treatment and vibration aging treatment to eliminate stress, and then performs fine milling processing on a large-scale gantry milling machine to ensure long-term stability and no deformation of the machine tool. It is equipped with high-performance original packaged fiber lasers with stable performance. , The service life can reach 100,000 hours. It adopts imported guide drive and servo motor, and can use auxiliary gas (oxygen, argon, nitrogen) to cut various metal sheets, easy to operate, high precision, high speed and high efficiency.

1kw 2kw Laser Cutting Machine Exchange Platform 4020 CNC For Metal 31kw 2kw Laser Cutting Machine Exchange Platform 4020 CNC For Metal 41kw 2kw Laser Cutting Machine Exchange Platform 4020 CNC For Metal 5
