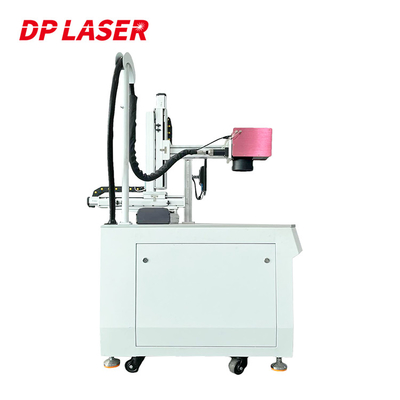

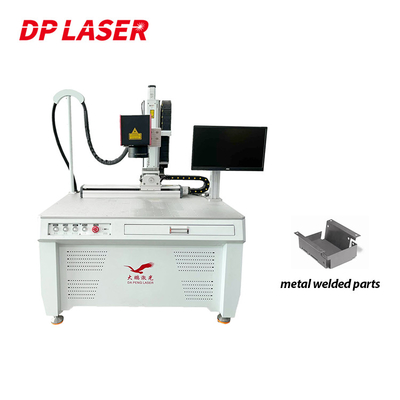

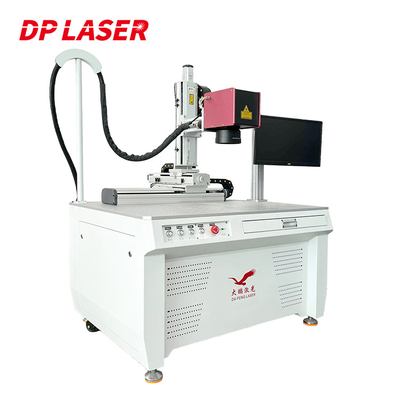

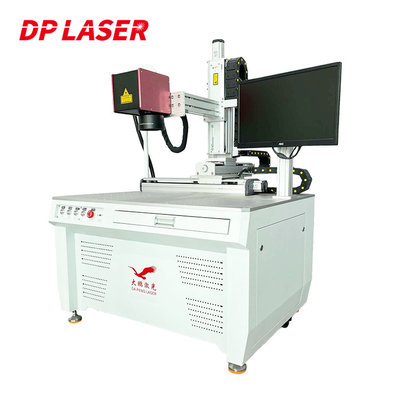

1070nm 75W Nickel Sheet QCW Fibre Laser Welding Machine Raycus MAX IPG For Lithium Ion Battery
Place of Origin | China |
---|---|
Brand Name | DP LASER |
Certification | CE SGS FDA TUV ROHS |
Model Number | Laser Welding Machine |
Minimum Order Quantity | 1 Set |
Price | Please contact us |
Packaging Details | Wooden boxes that meet international export standards |
Delivery Time | 7-15 Work Days |
Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability | 300 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xLaser Source | Raycus MAX IPG Laser Source | Laser Head | Galvo |
---|---|---|---|
Laser Power | 75W | Power Supply | 220V/380V 50Hz/60Hz |
Application | Welding Products | Fixture | Support Customization |
Laser Wavelength | 1070nm | Keywords | Fiber Laser Welding Equipment |
Weight (KG) | 300 KG | After-sales Service Provided | Overseas Engineers Provide Door-to-door Service |
High Light | 75W fibre laser welding machine,1070nm fibre laser welding machine,75W ipg laser welding machine |
75W Raycus MAX IPG Lithium Ion Battery Nickel Sheet QCW Fiber Laser Welding Machine
Basic introduction
The machine adopts QCW fiber laser, which can work in continuous and high-peak power pulse modes at the same time to complete the processing requirements of welding or cutting, which greatly improves the processing speed and production efficiency.
The quasi-continuous laser welding machine is equipped with an integrated laser scanning control system and a high-speed beam splitting mechanism, and with an automated line body, it can realize high-speed multi-channel welding. Mainly used for 3C precision devices, medical endoscopes, mobile phone precision motors, battery pole pieces and other sheet welding, as well as fine cutting of metals and non-metals. Users can choose fibers with different core diameters and customize arbitrary waveforms to meet differentiated processing needs.
Features
1. Welding is finer: the diameter of the focusing spot is small, suitable for precision welding
2. Mode switchable: pulse and continuous modes can be switched for use
3. Low cost of use: high electro-optical conversion efficiency, no consumables, maintenance-free
4. Small footprint: air-cooled compact design, easy to carry out production line layout
Application industry
Mainly used for 3C precision devices, medical endoscopes, mobile phone precision motors, battery pole pieces and other sheet welding, as well as fine cutting of metals and non-metals. The scope of application involves optical communication, IT, electronics, batteries, instruments, hardware and other fields.
Model | DPH-75ZJ-QCW | DPH-150ZJ-QCW | DPH-300ZJ-QCW | DPH-450ZJ-QCW |
Laser Type | Fiber | |||
Wavelength | 1070nm | |||
Laser Mode | Continuous and Pulse | |||
Laser Source Brand | Raycus/MAX/IPG(Optional) | |||
Continuous Average | 75W | 150W | 300W | 450W |
Max.Pulse Power | 750W | 1500W | 3000W | 4500W |
Pulse Average Power | 75W | 150W | 300W | 450W |
Max.Pulse Energy | 7.5J | 15J | 30J | 45J |
Beam Quality | 5mm*mrad | |||
Pulse Repetition Frequency | 0Hz≤F≤2500Hz | |||
Min.Focus Spot Diameter | 0.1-0.4mm | |||
Cooling Mode | Air Cooling | |||
Voltage | AC220V±10% 50V 60Hz | |||
Fiber Diameter | 50um/100um/200um(Optional) | |||
Energy Stability | <±1 | |||
Operating Temperature | -10 ℃—40℃ |
