150W Raycus MAX IPG Battery Laser Welding Machine 1070nm Galvo Head

Place of Origin China
Brand Name DP LASER
Certification CE SGS FDA TUV ROHS
Model Number Laser Welding Machine
Minimum Order Quantity 1 Set
Price Please contact us
Packaging Details Wooden boxes that meet international export standards
Delivery Time 7-15 Work Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 300 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Laser Source Raycus MAX IPG Laser Source Laser Head Galvo
Laser Power 150W Power Supply 220V/380V 50Hz/60Hz
Dimensions 1970*1000*1500mm Core Components Laser Source
Fixture Support Customization Laser Wavelength 1070nm
Weight (KG) 300 KG After-sales Service Provided Overseas Engineers Provide Door-to-door Service
High Light

150W Battery Laser Welding Machine

,

Battery Laser Welding Machine 1070nm

,

fiber laser welder 1070nm

Leave a Message
Product Description

150W Raycus MAX IPG Lithium Ion Battery Nickel Sheet QCW Fiber Laser Welding Machine

Basic introduction
The machine adopts QCW fiber laser, which can work in continuous and high-peak power pulse modes at the same time to complete the processing requirements of welding or cutting, which greatly improves the processing speed and production efficiency.

The quasi-continuous laser welding machine is equipped with an integrated laser scanning control system and a high-speed beam splitting mechanism, and with an automated line body, it can realize high-speed multi-channel welding. Mainly used for 3C precision devices, medical endoscopes, mobile phone precision motors, battery pole pieces and other sheet welding, as well as fine cutting of metals and non-metals. Users can choose fibers with different core diameters and customize arbitrary waveforms to meet differentiated processing needs.

Features
1. Welding is finer: the diameter of the focusing spot is small, suitable for precision welding
2. Mode switchable: pulse and continuous modes can be switched for use
3. Low cost of use: high electro-optical conversion efficiency, no consumables, maintenance-free
4. Small footprint: air-cooled compact design, easy to carry out production line layout


Application industry
Mainly used for 3C precision devices, medical endoscopes, mobile phone precision motors, battery pole pieces and other sheet welding, as well as fine cutting of metals and non-metals. The scope of application involves optical communication, IT, electronics, batteries, instruments, hardware and other fields.

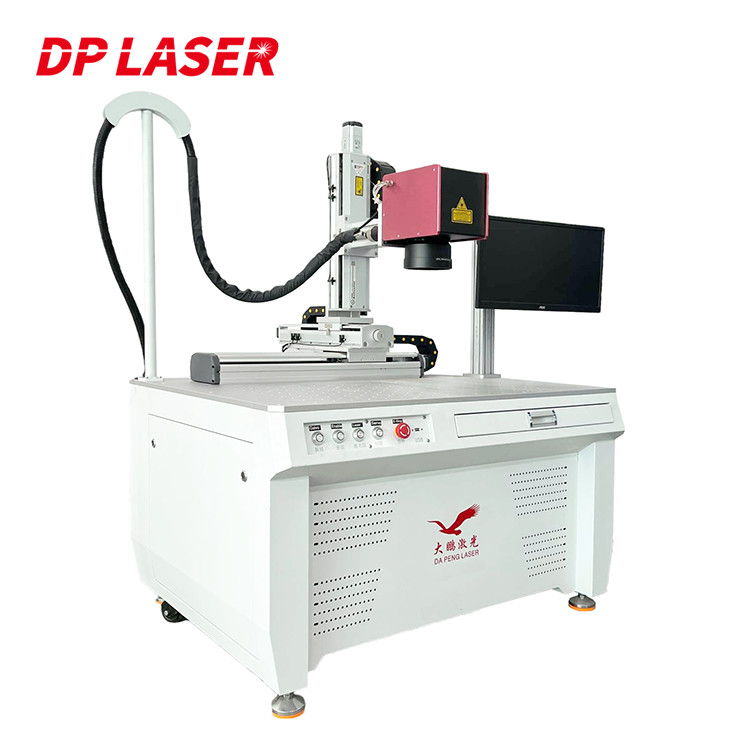

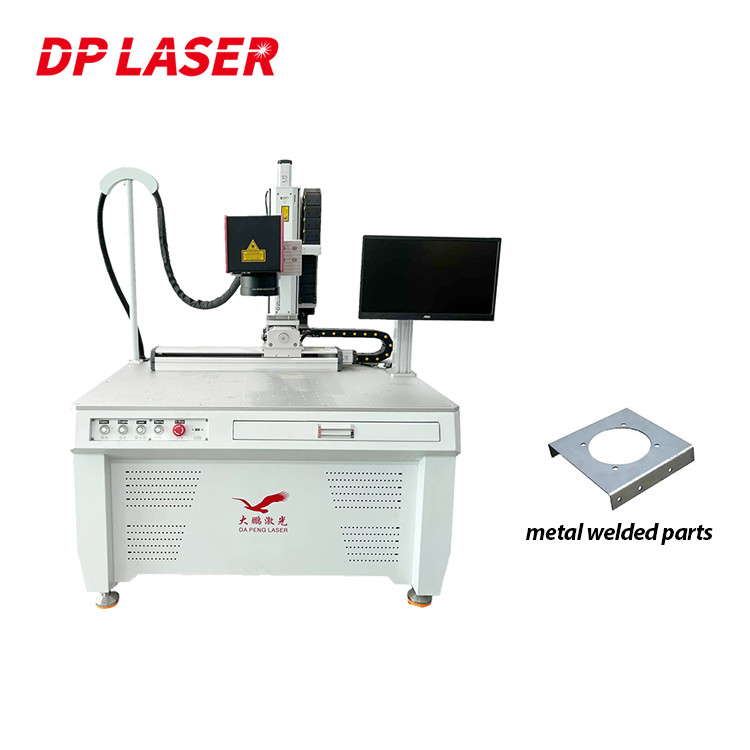

150W Raycus MAX IPG Battery Laser Welding Machine 1070nm Galvo Head 0150W Raycus MAX IPG Battery Laser Welding Machine 1070nm Galvo Head 1

Model DPH-75ZJ-QCW DPH-150ZJ-QCW DPH-300ZJ-QCW DPH-450ZJ-QCW
Laser Type Fiber
Wavelength 1070nm
Laser Mode Continuous and Pulse
Laser Source Brand Raycus/MAX/IPG(Optional)
Continuous Average 75W 150W 300W 450W
Max.Pulse Power 750W 1500W 3000W 4500W
Pulse Average Power 75W 150W 300W 450W
Max.Pulse Energy 7.5J 15J 30J 45J
Beam Quality 5mm*mrad
Pulse Repetition Frequency 0Hz≤F≤2500Hz
Min.Focus Spot Diameter 0.1-0.4mm
Cooling Mode Air Cooling
Voltage AC220V±10% 50V 60Hz
Fiber Diameter 50um/100um/200um(Optional)
Energy Stability <±1
Operating Temperature -10 ℃—40℃

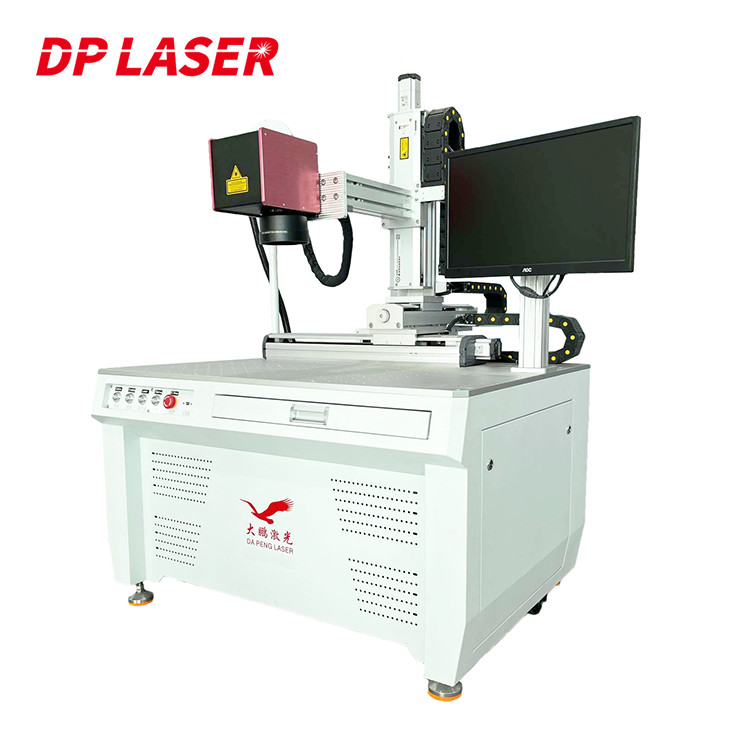

150W Raycus MAX IPG Battery Laser Welding Machine 1070nm Galvo Head 2150W Raycus MAX IPG Battery Laser Welding Machine 1070nm Galvo Head 3

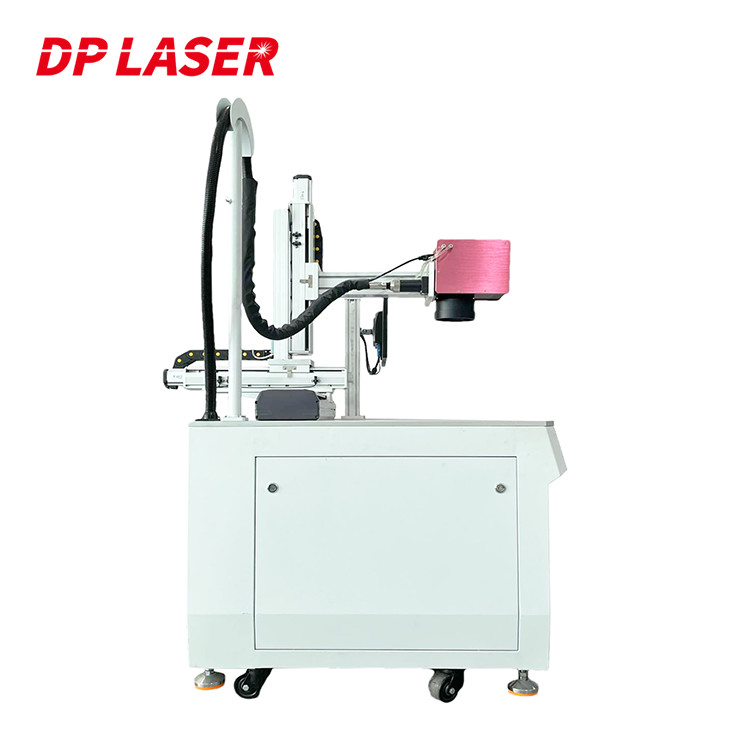

150W Raycus MAX IPG Battery Laser Welding Machine 1070nm Galvo Head 4
