3000w 6000w 8000w CNC Fiber Laser Cutting Machine Servo Motor Drived

Place of Origin China
Brand Name DP LASER
Certification CE SGS FDA TUV ROHS
Model Number Laser Cutting Machine
Minimum Order Quantity 1 Set
Price Please contact us
Packaging Details Wooden boxes that meet international export standards
Delivery Time 10-30 Work Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 300 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Laser Source Raycus MAX IPG NLIGHT Laser Source Laser Power 1000W-3000W
Power Supply 380V/50HZ Maximum Acceleration 1.5G
Feature SERVO-MOTOR Cutting Speed 150m/min
Cutting Thickness 0-80mm Weight (KG) 2000 KG
Cutting Materials Stainless Steel Carbon Steel Etc After-sales Service Provided Overseas Engineers Provide Door-to-door Service
High Light

3000w Fiber Laser Cutting Machine

,

6000w Fiber Laser Cutting Machine

,

Servo Motor Fiber Laser Cutter

Leave a Message
Product Description

High Speed Automatic Feeding Metal Round Pipe Fiber Laser Cutting Machine



The laser cutting machine is to focus the laser emitted from the laser into a high power density laser beam through the optical path system. The laser beam is irradiated on the surface of the workpiece, making the workpiece reach the melting point or boiling point, while the high-pressure gas coaxial with the beam blows the molten or vaporized metal away. With the movement of the relative position of the beam and the workpiece, the material is finally formed into a slit, so as to achieve the purpose of cutting.



Features

1. The speed is fast, the incision is smooth and flat, and generally no follow-up processing is required:


2. The cutting heat-affected zone is small, the plate deformation is small, and the cutting seam is narrow;


3. The incision has no mechanical stress and no shearing burr;


4. High machining accuracy, good repeatability, and no damage to the surface of the material;


5. Numerical control programming, can process any plan, can cut the whole board with large format, no need to open mold, economical and time-saving.



Applicable Industries

Mainly used in sheet metal processing, advertising sign production, high and low voltage electrical cabinet production, mechanical parts, kitchen utensils, automobiles, machinery, metal handicrafts, saw blades, electrical parts, glasses industry, spring sheets, circuit boards, electric kettles, medical micro Electronics, hardware, knives and measuring tools and other industries.

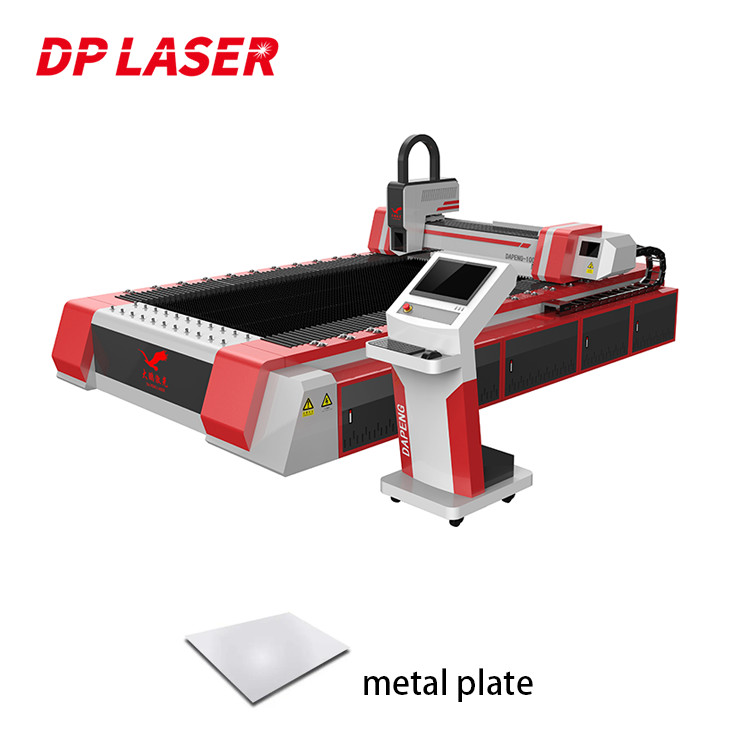

3000w 6000w 8000w CNC Fiber Laser Cutting Machine Servo Motor Drived 03000w 6000w 8000w CNC Fiber Laser Cutting Machine Servo Motor Drived 1

3000w 6000w 8000w CNC Fiber Laser Cutting Machine Servo Motor Drived 2

Apply to Auto feeding round pipeφ≤89mm,Square pipe≤63*63mm
Cutting accuracy ±0.3mm,Tube bend≤2mm/m
Feeding length 4000mm-6200mm

Primary filler weight



According to the size of the pipe, the storage space of the trough is limited, and the maximum load1.5t
Laser power 1000W/1500W/2000W/3000W
Laser wavelength 1070nm±5nm
laser mode single mode
Photoelectric conversion efficiency 30%
Working way continuous
Power adjustment range 5-95%
Power instability ≤2%
Transmission fiber core diameter 25um-50um
Fiber length 10m
Cooling method Water cooling
Chiller model C1000/C1500/C2000/C3000 Double temperature double circulation chiller
Cooling water temperature 20-25℃
Power supply AC380±10%,50/60Hz
Working temperature 10~35℃
Working environment humidity ≤95%
Total weight 2T
