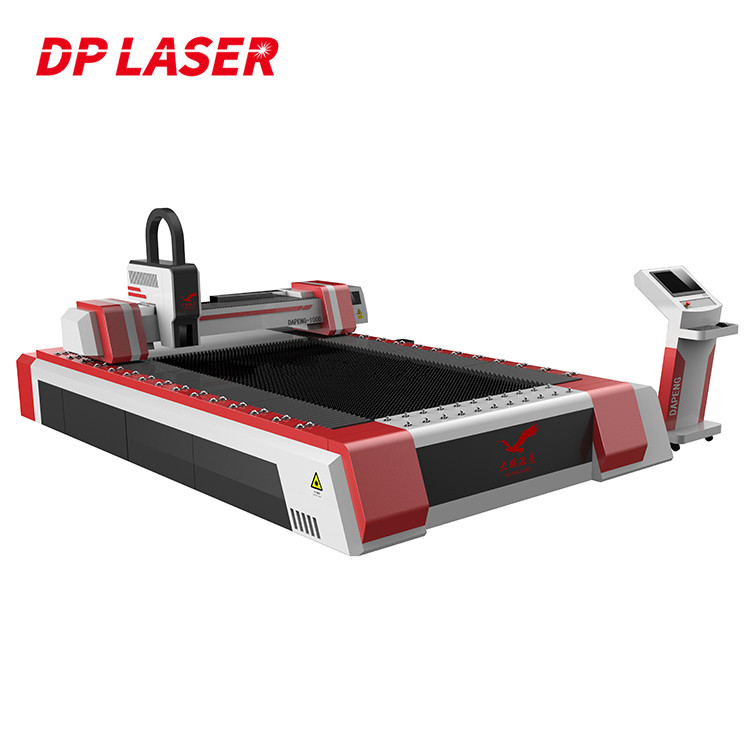

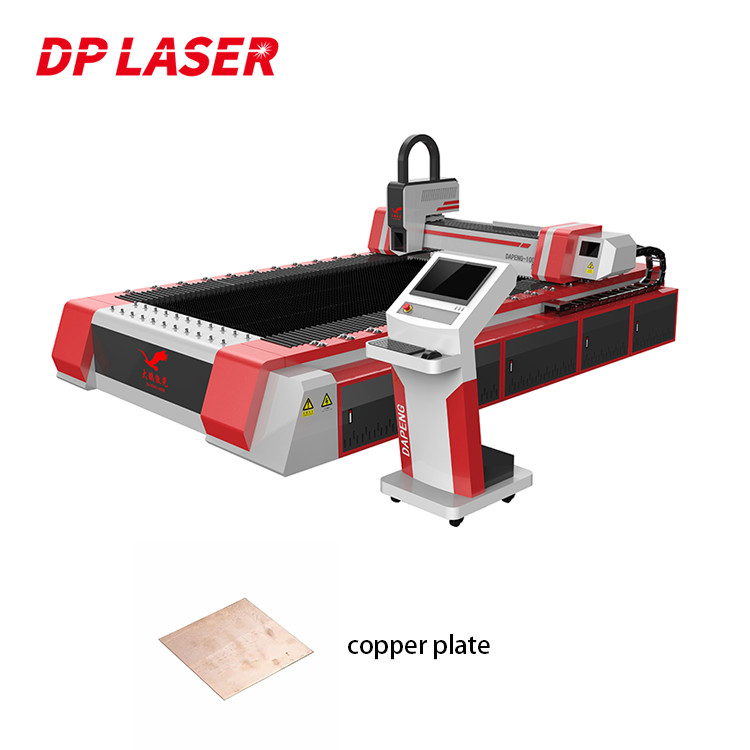

High Power Cnc Engraving Raycus Fiber Cutting Machine For Jewelry
| Place of Origin | China |
|---|---|
| Brand Name | DP LASER |
| Certification | CE SGS FDA TUV ROHS |
| Model Number | Laser Cutting Machine |
| Minimum Order Quantity | 1 Set |
| Price | Please contact us |
| Packaging Details | Wooden boxes that meet international export standards |
| Delivery Time | 10-30 Work Days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 300 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Laser Source | Raycus MAX IPG NLIGHT Laser Source | Laser Power | 1000W-3000W |
|---|---|---|---|
| Power Supply | 380V/50HZ | Maximum Acceleration | 1.5G |
| Feature | SERVO-MOTOR | Cutting Speed | 150m/min |
| Cutting Thickness | 0-80mm | Weight (KG) | 2000 KG |
| Cutting Materials | Stainless Steel Carbon Steel Etc | After-sales Service Provided | Overseas Engineers Provide Door-to-door Service |
| High Light | 150m/min Fiber Cutting Machine,Raycus Fiber Cutting Machine,3000W Laser Metal Cut Machine |
||
Product Description
High Speed Automatic Feeding Metal Round Pipe Fiber Laser Cutting Machine
The laser cutting machine is to focus the laser emitted from the laser into a high power density laser beam through the optical path system. The laser beam is irradiated on the surface of the workpiece, making the workpiece reach the melting point or boiling point, while the high-pressure gas coaxial with the beam blows the molten or vaporized metal away. With the movement of the relative position of the beam and the workpiece, the material is finally formed into a slit, so as to achieve the purpose of cutting.
Features
1. The speed is fast, the incision is smooth and flat, and generally no follow-up processing is required:
2. The cutting heat-affected zone is small, the plate deformation is small, and the cutting seam is narrow;
3. The incision has no mechanical stress and no shearing burr;
4. High machining accuracy, good repeatability, and no damage to the surface of the material;
5. Numerical control programming, can process any plan, can cut the whole board with large format, no need to open mold, economical and time-saving.
Applicable Industries
Mainly used in sheet metal processing, advertising sign production, high and low voltage electrical cabinet production, mechanical parts, kitchen utensils, automobiles, machinery, metal handicrafts, saw blades, electrical parts, glasses industry, spring sheets, circuit boards, electric kettles, medical micro Electronics, hardware, knives and measuring tools and other industries.
| Apply to | Auto feeding round pipeφ≤89mm,Square pipe≤63*63mm |
| Cutting accuracy | ±0.3mm,Tube bend≤2mm/m |
| Feeding length | 4000mm-6200mm |
|
Primary filler weight
|
According to the size of the pipe, the storage space of the trough is limited, and the maximum load1.5t |
| Laser power | 1000W/1500W/2000W/3000W |
| Laser wavelength | 1070nm±5nm |
| laser mode | single mode |
| Photoelectric conversion efficiency | 30% |
| Working way | continuous |
| Power adjustment range | 5-95% |
| Power instability | ≤2% |
| Transmission fiber core diameter | 25um-50um |
| Fiber length | 10m |
| Cooling method | Water cooling |
| Chiller model | C1000/C1500/C2000/C3000 Double temperature double circulation chiller |
| Cooling water temperature | 20-25℃ |
| Power supply | AC380±10%,50/60Hz |
| Working temperature | 10~35℃ |
| Working environment humidity | ≤95% |
| Total weight | 2T |
