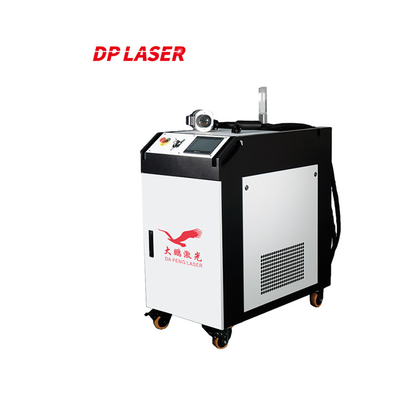

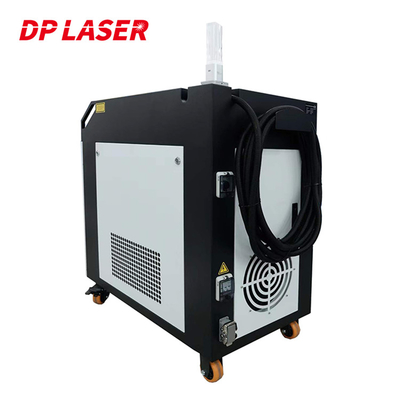

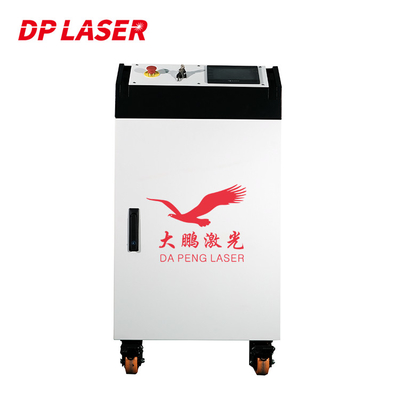

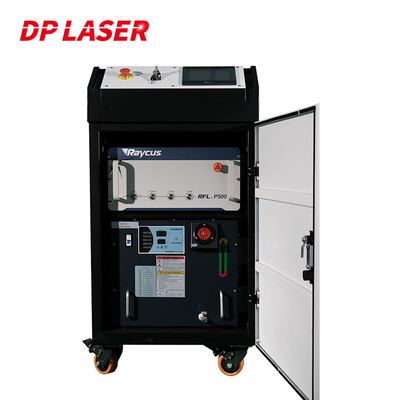

High Power Hybrid 300W Pulse Laser Source + 2000W Continuous Laser Source Fiber Laser Cleaning Machine

  • High Power Hybrid 300W Pulse Laser Source + 2000W Continuous Laser Source Fiber Laser Cleaning Machine
  • High Power Hybrid 300W Pulse Laser Source + 2000W Continuous Laser Source Fiber Laser Cleaning Machine
  • High Power Hybrid 300W Pulse Laser Source + 2000W Continuous Laser Source Fiber Laser Cleaning Machine
  • High Power Hybrid 300W Pulse Laser Source + 2000W Continuous Laser Source Fiber Laser Cleaning Machine
Place of Origin China
Brand Name DP LASER
Certification CE SGS FDA TUV ROHS
Model Number Laser Cleaning Machine
Minimum Order Quantity 1 Set
Price Please contact us
Packaging Details Wooden boxes that meet international export standards
Delivery Time 7-15 Work Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 300 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Laser Source Raycus Max IPG JPT Optional Laser Type Pulse Fiber Laser
Function Metal Rust Laser Power 300W+2000W Optional
Application Metal Stainless Steel Cleaning Clean Way NON-TOUCH CLEANING
Cleaning Process Handheld Laser Cleaner Scan Width 1-150mm
Power Supply 110V/220V 50HZ After-sales Service Provided Overseas Engineers Provide Door-to-door Service
Leave a Message
Product Description

High Power Hybrid 300W Pulse Laser Source + 2000W Continuous Laser Source Fiber Laser Cleaning Machine



Features

Nanosecond pulse laser cleaning technology can effectively remove the paint layer on the surface of the substrate, but the cleaning efficiency is low, and the cleaning speed of thick coatings and large areas of paint removal is slow and has great limitations. High-power composite cleaning technology is another new development direction of laser cleaning. It is a cleaning method with enhanced adaptability formed by the interaction of nanosecond pulsed laser and modulated pulsed laser. Laser composite cleaning technology avoids the shortcomings and deficiencies of single cleaning. , has the advantages of improving the cleaning quality, increasing the cleaning efficiency, and stabilizing the cleaning process.


High Power Hybrid 300W Pulse Laser Source + 2000W Continuous Laser Source Fiber Laser Cleaning Machine 0High Power Hybrid 300W Pulse Laser Source + 2000W Continuous Laser Source Fiber Laser Cleaning Machine 1

Cleaning Performance Parameters
Based material Surface Effective focal length Standard cleaning efficiency High cleaning efficiency Result
Cast iron Heavy rust 0.08mm >35mm 2000mm/m 3000mm/m Clean, no harm for base material
Mild steel Middle rust 0.5mm >45mm 1800mm/m 2400mm/m Clean, no harm for base material
Stainless steel Oil, light rust >50mm 2000mm/m 3000mm/m Clean, no harm for base material
Mould gear Middle oil with scrap iron >45mm 2000mm/m 2300mm/m Clean, no harm for base material
Aluminum oxide >35mm 2000mm/m 2300mm/m Clean, no harm for base material





Application industry

It is mainly used for laser cleaning and surface laser pretreatment of metal surfaces such as precision molds, metal products, ships, automobiles, medical equipment, sheet metal/spraying, etc.





Laser Power 300W Pulse + 2000W Continuous(≈1000W Pulse)
Laser Source Raycus
Central Wavelength 1070±5
Power Regulation Range 10-100
Outpit Power Instability ≤5
Pulse Length 60-160
Maximum Monopulse Energy 50
Fiber Length 15m
Laser Protection Class 4
Cooling Type Water Cooling
Dimensions 830*1270*1520mm



High Power Hybrid 300W Pulse Laser Source + 2000W Continuous Laser Source Fiber Laser Cleaning Machine 2
