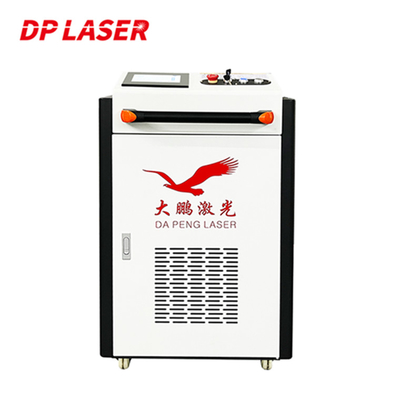

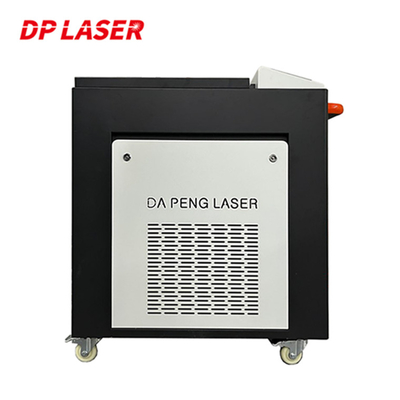

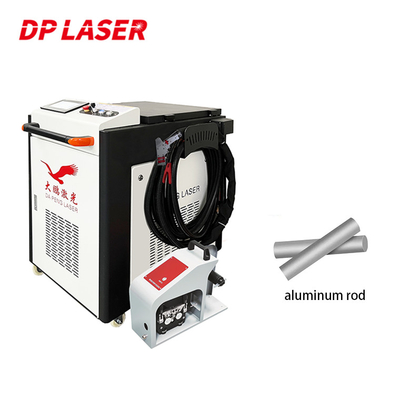

Welding And Cutting 3 In 1 Fiber Laser Cleaning Machine Multifunction Handheld 110V/220V
| Place of Origin | China |
|---|---|
| Brand Name | DP LASER |
| Certification | CE SGS FDA TUV ROHS |
| Model Number | Laser Cleaning Machine |
| Minimum Order Quantity | 1 Set |
| Price | Please contact us |
| Packaging Details | Wooden boxes that meet international export standards |
| Delivery Time | 7-15 Work Days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 300 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Laser Source | Raycus MAX IPG BWT Laser Source | Laser Type | Fiber Laser |
|---|---|---|---|
| Laser Power | 1000W/1500W/2000W/3000W Optional | Power Supply | 110V/220V 50Hz/60Hz |
| Function | Metal Rust Surface Laser Cleaning | Condition | New |
| Cleaning Process | Non-contact Laser Cleaning | Keywords | Fiber Laser Cleaning |
| Dimension(L*W*H) | 941*744*1030mm | After-sales Service Provided | Overseas Engineers Provide Door-to-door Service |
| Highlight | Fiber Laser Cleaning Machine 220 V,3In1 Fiber Laser Cleaning Machine,3In1 2000 watt laser cleaner |
||
Product Description
Cleaning, Welding And Cutting 3 In 1 Multifunction Handheld Fiber Laser Cleaning Machine
Basic introduction
Laser cleaning is a new technology based on the interaction effect between laser and matter. Unlike traditional mechanical cleaning method, chemical cleaning method and ultrasonic cleaning method (wet cleaning process), it does not require any CFC organic solvent that destroys the ozone layer. Pollution, no noise, harmless to human body and environment, it is a "green" cleaning technology.
Features
1. Non-contact cleaning, does not damage the parts matrix.
2. Precise cleaning, which can achieve selective cleaning of precise location and precise size.
3. No chemical cleaning solution, no consumables, safe and environmentally friendly.
4. The operation is simple, just power on, and it can be hand-held or cooperated with a manipulator to realize automatic cleaning.
5. The cleaning efficiency is very high, saving time.
6. The laser cleaning system is stable and requires almost no maintenance.
Application industry
It is mainly used for laser cleaning and surface laser pretreatment of metal surfaces such as precision molds, metal products, ships, automobiles, medical equipment, sheet metal/spraying, etc.
| Model | DP-HL-1000 | DP-HL-1500 | DP-HL-2000 | DP-HL-2000 |
| Laser Power | 1000W | 1500W | 2000W | 3000W |
| Laser Source | Raycus/Max/IPG | Raycus/Max/IPG | Raycus/Max/IPG | Raycus/Max/IPG |

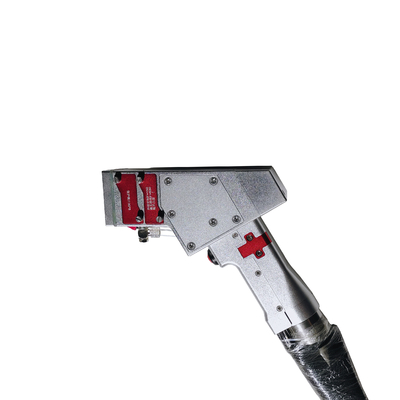

| Laser Head | 3 IN 1 | 3 IN 1 | 3 IN 1 | 3 IN 1 |
| Fiber Wire Length | 10 Meters | 10 Meters | 10 Meters | 10 Meters |
| Laser Wavelength | 1070nm | 1070nm | 1070nm | 1070nm |
| Operate Mode | Continuation/Modulate | Continuation/Modulate | Continuation/Modulate | Continuation/Modulate |
| Water Chiller | Hanli | Hanli | Hanli | Hanli |
| Spot Adjusting Range | 0.1-3mm | 0.1-3mm | 0.1-3mm | 0.1-3mm |
| Repeating Precision | ±0.01mm | ±0.01mm | ±0.01mm | ±0.01mm |
| Cabinet Size | 744*941*1030mm | 744*941*1030mm | 750*1260*1110mm | 750*1260*1110mm |
| Machine Weight | About 200KG | About 200KG | About 220KG | About 220KG |
| Voltage | 110V/220V/380V | 110V/220V/380V | 110V/220V/380V | 110V/220V/380V |
DP Laser cleaning machine has advanced technology, with humanized design, small size, flexible operation, low energy consumption, environmental protection and other characteristics, with certain practicability and operability. Customers can preset the cleaning mode through the software, and can directly switch the mode to operate without adjusting the parameters, and start cleaning without chemical reagents, media, dust and water. Through automatic focusing, cleaning the surface of the object, and removing resin, stains, corrosion, coatings, paints, etc. on the surface of the object, the cleanliness is high.
