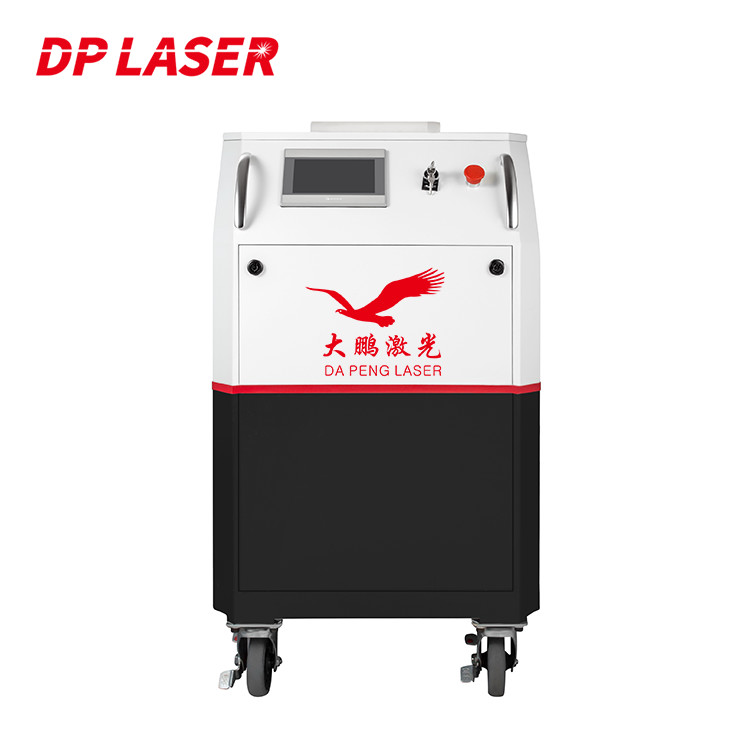

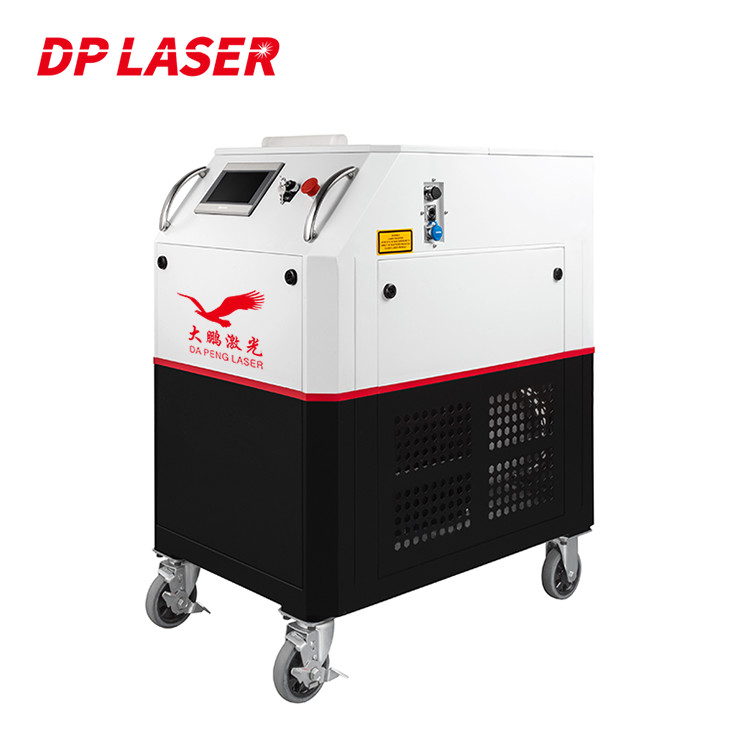

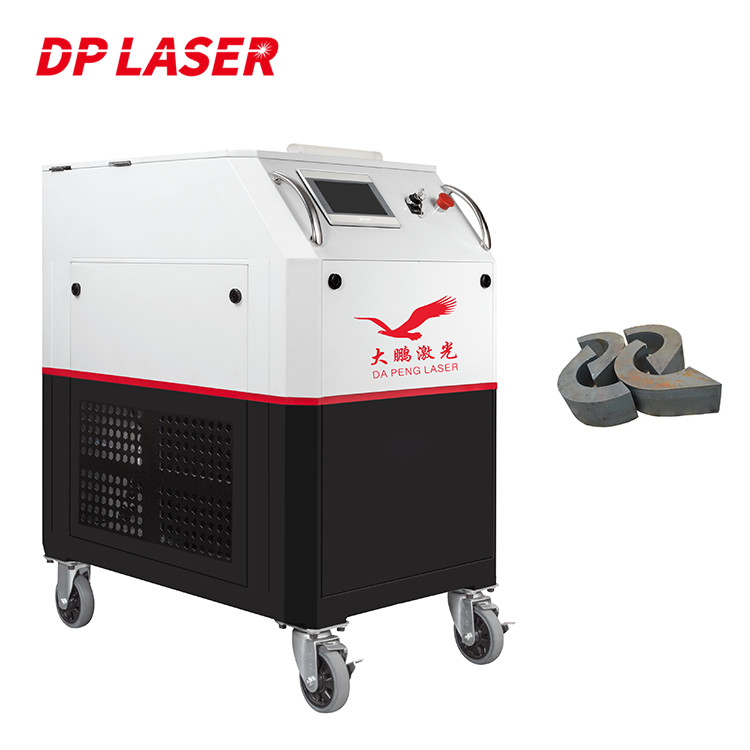

300W Pulse Handheld Fiber Laser Cleaning Machine Rust Removal IPG JPT Optional
Place of Origin | China |
---|---|
Brand Name | DP LASER |
Certification | CE SGS FDA TUV ROHS |
Model Number | Laser Cleaning Machine |
Minimum Order Quantity | 1 Set |
Price | Please contact us |
Packaging Details | Wooden boxes that meet international export standards |
Delivery Time | 7-15 Work Days |
Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability | 300 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xLaser Source | Raycus Max IPG JPT Optional | Laser Type | Pulse Fiber Laser |
---|---|---|---|
Function | Metal Rust | Laser Power | 300W |
Application | Metal Stainless Steel Cleaning | Clean Way | NON-TOUCH CLEANING |
Cleaning Process | Handheld Laser Cleaner | Scan Width | 1-150mm |
Power Supply | 110V/220V 50HZ | After-sales Service Provided | Overseas Engineers Provide Door-to-door Service |
High Light | 300W handheld fiber laser cleaning machine,JPT handheld fiber laser cleaning machine,300W fiber laser cleaner rust removal |
300W Laser Rust Removal Pulse Handheld Fiber Laser Cleaning Machine
Basic introduction
Laser cleaning is a brand-new non-contact surface cleaning technology. This technology mainly acts on the surface of the workpiece by a pulsed laser beam with low power and high energy density, so that the stains, oxides or coatings on the surface are instantly evaporated, vaporized or thermally expanded. , so as to achieve the effect of surface cleaning and purification. Compared with traditional methods, it has the advantages of environmental protection, no grinding and no thermal effect, and has unique advantages in cleaning precision workpieces.
Features
1. Non-contact processing, no consumables, no damage, no chemical pollution
2. Handheld laser cleaning head, light, convenient and easy to use
3. Right angles, corners and grooves can be cleaned
4. Derusting, decontamination, degreasing, deoxidation
Cleaning Performance Parameters | |||||
Based material | Surface | Effective focal length | Standard cleaning efficiency | High cleaning efficiency | Result |
Cast iron | Heavy rust 0.08mm | >35mm | 2000mm/m | 3000mm/m | Clean, no harm for base material |
Mild steel | Middle rust 0.5mm | >45mm | 1800mm/m | 2400mm/m | Clean, no harm for base material |
Stainless steel | Oil, light rust | >50mm | 2000mm/m | 3000mm/m | Clean, no harm for base material |
Mould gear | Middle oil with scrap iron | >45mm | 2000mm/m | 2300mm/m | Clean, no harm for base material |
Aluminum | oxide | >35mm | 2000mm/m | 2300mm/m | Clean, no harm for base material |
DP Laser cleaning machine has advanced technology, with humanized design, small size, flexible operation, low energy consumption, environmental protection and other characteristics, with certain practicability and operability. Customers can preset the cleaning mode through the software, and can directly switch the mode to operate without adjusting the parameters, and start cleaning without chemical reagents, media, dust and water. Through automatic focusing, cleaning the surface of the object, and removing resin, stains, corrosion, coatings, paints, etc. on the surface of the object, the cleanliness is high.
Application industry
It is mainly used for laser cleaning and surface laser pretreatment of metal surfaces such as precision molds, metal products, ships, automobiles, medical equipment, sheet metal/spraying, etc.
Laser Power | 200W | 300W |
Laser Source | Raycus/IPG | Raycus/IPG |
Central Wavelength | 1064±5 | 1064±5 |
Power Regulation Range | 10-100 | 10-100 |
Outpit Power Instability | ≤5 | ≤5 |
Output Power Instability | 10-50 | 20-50 |
Pulse Length | 90-130 | 130-140 |
Maximum Monopulse Energy | 10 | 12.5 |
Fiber Length | 5/10m | 5/10m |
Laser Protection Class | 4 | 4 |
Cooling Type | Water Cooling | Water Cooling |
Dimensions | 642*1056*1089mm | 642*1056*1089mm |
