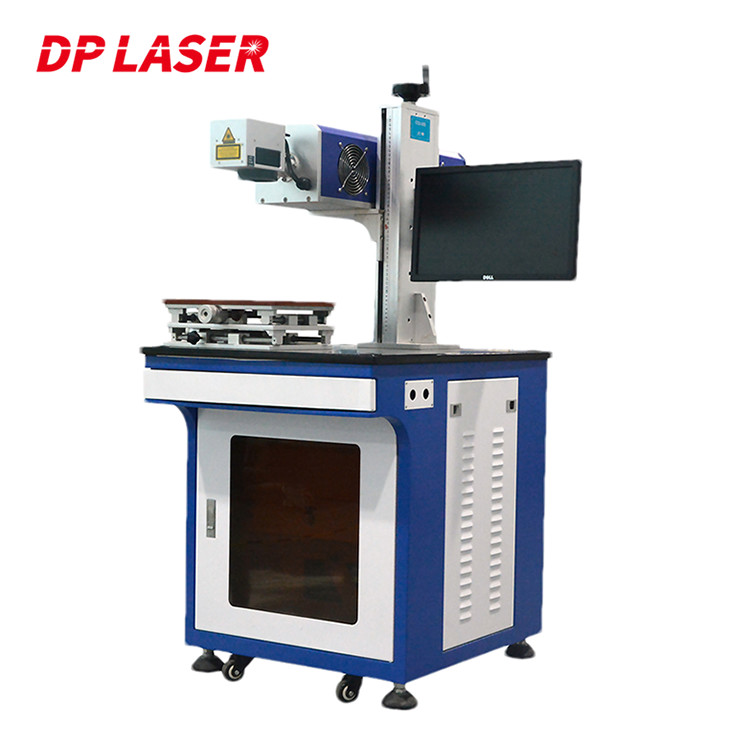

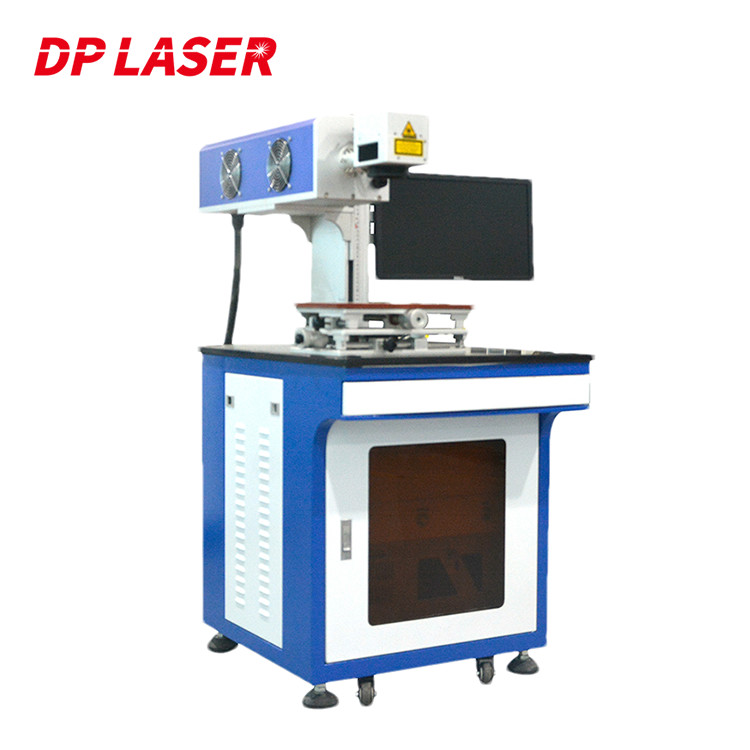

Plastic 100w Co2 Laser Marking Machine 30W 50W 100W 150W 200W 250W

  • Plastic 100w Co2 Laser Marking Machine 30W 50W 100W 150W 200W 250W
  • Plastic 100w Co2 Laser Marking Machine 30W 50W 100W 150W 200W 250W
Place of Origin China
Brand Name DP LASER
Certification CE SGS FDA TUV ROHS
Model Number Laser Marking Machine
Minimum Order Quantity 1 Set
Price Please contact us
Packaging Details Wooden boxes that meet international export standards
Delivery Time 7-15 Work Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 300 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Laser Source Synrad Access Coherent Rofin CRD Laser Source Laser Type CO2 Laser
Function Nonmetal Materials Engraving Marking Cutting Galvo Sino-Galvo
Laser Power 15W 30W 50W 100W 150W 200W 250W Optional Application Nonmetal Materials
Marking Speed 0-8000mm/s Marking Area 70mm-400mm Optional
Power Supply 110V/220V 50HZ After-sales Service Provided Overseas Engineers Provide Door-to-door Service
High Light

100w co2 laser marking machine

,

250W co2 laser marking machine

,

50w raycus fiber laser marking machine
Leave a Message
Product Description

20W 30W 50W 100W Raycus Max IPG JPT Mopa Metal Engraving Optical Fiber Laser Marking Machine



Basic introduction

Carbon dioxide laser marking machine is the latest new generation of laser marking system. The system adopts industrial standard module design, adopts imported full set of metal-encapsulated carbon dioxide RF laser, is equipped with high-speed scanning galvanometer and beam expander focusing system, anti-interference industrial computer intelligent control, high-precision lifting working platform, realizes 24-hour continuous stability Reliable operation, high marking accuracy and high speed.




Features
1. Floor-standing design
2. Fast speed and high precision
3.24 hours continuous operation


Plastic 100w Co2 Laser Marking Machine 30W 50W 100W 150W 200W 250W 0Plastic 100w Co2 Laser Marking Machine 30W 50W 100W 150W 200W 250W 1



Laser Power 15W 30W 50W 100W 150W 200W 250W Optional
Laser Source Synrad Access Coherent Rofin CRD Optional
Control Board BJJCZ
Control Software EZCAD
Galvo Head Sino-Galvo
F-theta Lens 70mm-400mm Optional
Laser Lifespan 20,000 Hours
Laser Wavelength 10640nm
Marking Speed 0-8000mm/s
Power Consumption ≤800W
Cooling Mode Water Cooling / Air Cooling
Supported characters Any fonts downloaded on computer
Supported format DWG,DFX,BMP,JPG,PNG,TIF,PCX, TAG, GIF, PLT etc..
Supported Bar code CODE39, EAN, CODE128, Data Matrix, PDF417 etc..
Cabinet Size 950*650*1500mm
Machine Weight About 130KG
Voltage 110V/220V Optional



Application industry

Co2 laser marking machine can mark a variety of non-metallic materials and some metal products, such as bamboo products, wood, paper, ABS, PVC, epoxy resin, acrylic, leather, glass, architectural ceramics, rubber, etc. It is widely used in leather, food, beverage, fabric, electronics, wood, instrument, communication equipment, packaging and other industries, and can be combined with the assembly line for online marking.



Plastic 100w Co2 Laser Marking Machine 30W 50W 100W 150W 200W 250W 2Plastic 100w Co2 Laser Marking Machine 30W 50W 100W 150W 200W 250W 3
