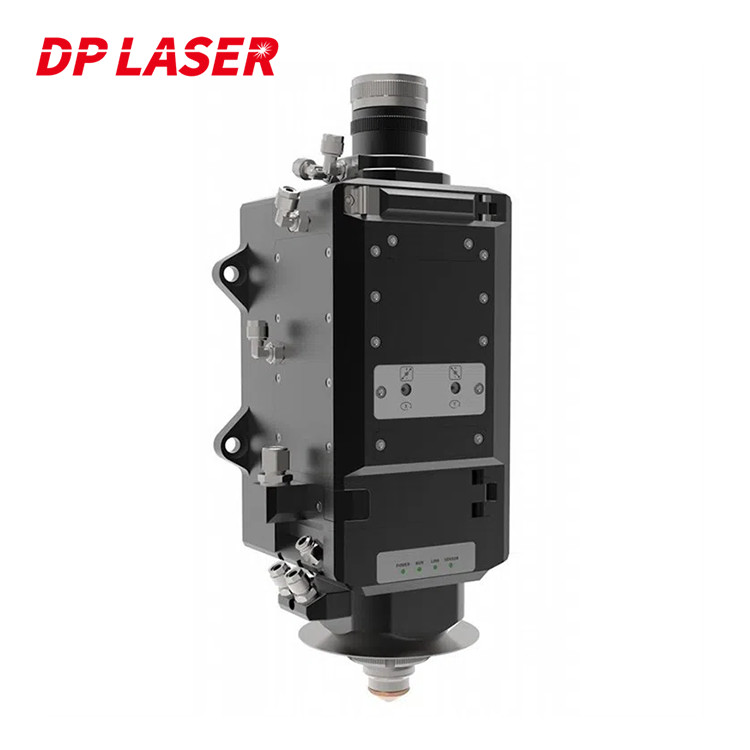

BOCI Cypcut BLT661H Best Optical Fiber Laser Cutting Head

  • BOCI Cypcut BLT661H Best Optical Fiber Laser Cutting Head
Place of Origin China
Brand Name DP LASER
Certification CE SGS FDA TUV ROHS
Model Number Laser Cutting Head
Minimum Order Quantity 1 Set
Price Please contact us
Packaging Details Wooden boxes that meet international export standards
Delivery Time 7-15 Work Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 300 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brand Name BOCI Laser Type Fiber Laser
Function Metal Material Cutting Keywords Laser Cutting Spare Parts
Feature High Efficiency Used For Fiber Laser Cutting Machine
Application Metals Cutting Key Selling Points Competitive Price
Weight 5 KG After-sales Service Overseas Engineers Provide Door-to-door Service
Leave a Message
Product Description

BOCI Cypcut BLT661H Best Optical Fiber Laser Cutting Head

Basic introduction

BLT series high-power intelligent laser cutting head is a full-featured bus-controlled cutting head specially designed for the sheet metal processing industry. It is easy to install, easy to debug, with excellent performance and complete sensors. It is one of the few intelligent cutting heads on the market.


Features
The components of the cutting head are: nozzle, focus lens and focus tracking system.

There are three main types of nozzles for laser cutting heads: parallel, convergent and conical.

The focusing lens uses the energy of the laser beam for cutting. The longer the focal length of the lens, the larger the focal spot, the lower the power density, but the larger the focal depth and the greater the operating tolerance.

The focus tracking system of a laser cutting machine is generally composed of a focus cutting head and a tracking sensor system.

The laser cutting head is easy to install, easy to debug, has excellent performance and complete sensors.

Specification
Adaptation software:HYPCUT8000 system
Control assembly:BCS200E
Interface Type:POE network cable
Optical scheme:Focus
Spot magnification factor:2.1 times
Highest power:15KW
Total measurement:427*152*137.6
Focus range:+50~-50

Application industry
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company.
BOCI Cypcut BLT661H Best Optical Fiber Laser Cutting Head 0BOCI Cypcut BLT661H Best Optical Fiber Laser Cutting Head 1
BOCI Cypcut BLT661H Best Optical Fiber Laser Cutting Head BOCI Cypcut BLT661H Best Optical Fiber Laser Cutting Head BOCI Cypcut BLT661H Best Optical Fiber Laser Cutting Head

BLT420

Laser Cutting Up To 8KW

BLT641

Laser Cutting Up To 15KW

BLT661H

Laser Cutting Up To 15KW

BOCI Cypcut BLT661H Best Optical Fiber Laser Cutting Head 5

BOCI Cypcut BLT661H Best Optical Fiber Laser Cutting Head 6

BOCI Cypcut BLT661H Best Optical Fiber Laser Cutting Head 7

BOCI Cypcut BLT661H Best Optical Fiber Laser Cutting Head 8

BOCI Cypcut BLT661H Best Optical Fiber Laser Cutting Head 9BOCI Cypcut BLT661H Best Optical Fiber Laser Cutting Head 10BOCI Cypcut BLT661H Best Optical Fiber Laser Cutting Head 11
