15KW 15000W Fiber Laser Cutting Head Precitec ProCutter 2.0
| Place of Origin | China |
|---|---|
| Brand Name | DP LASER |
| Certification | CE SGS FDA TUV ROHS |
| Model Number | Laser Cutting Head |
| Minimum Order Quantity | 1 Set |
| Price | Please contact us |
| Packaging Details | Wooden boxes that meet international export standards |
| Delivery Time | 7-15 Work Days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 300 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Brand | Precitec | Laser Type | Fiber Laser |
|---|---|---|---|
| Application | Metals Cutting | Condition | New |
| Feature | High Efficiency | Function | Metal Material Cutting |
| Used For | Fiber Laser Cutting Machine | Key Selling Points | Competitive Price |
| Weight (KG) | 4.9 KG | After-sales Service | Overseas Engineers Provide Door-to-door Service |
| High Light | 15KW Laser Cutting Head,15000W Laser Cutting Head,2.0 precitec laser cutting head |
||
Product Description

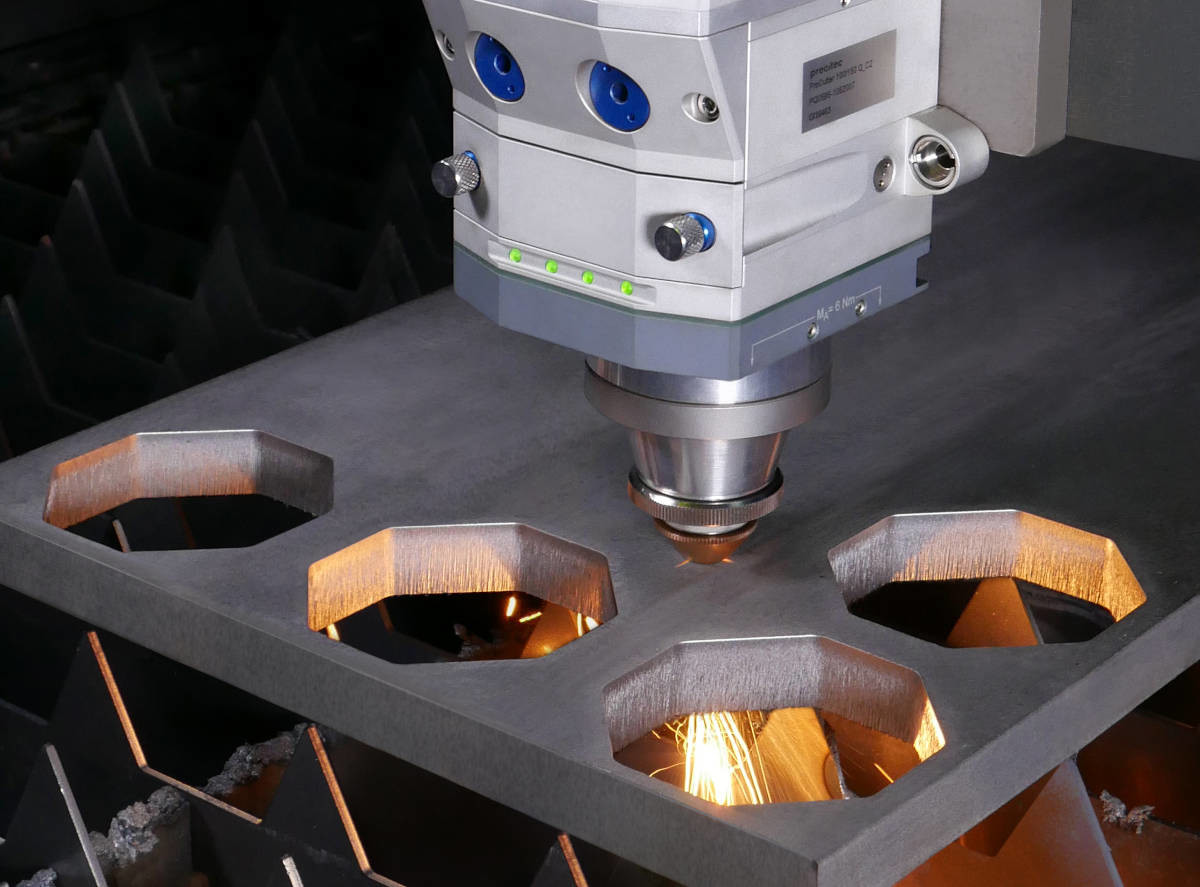

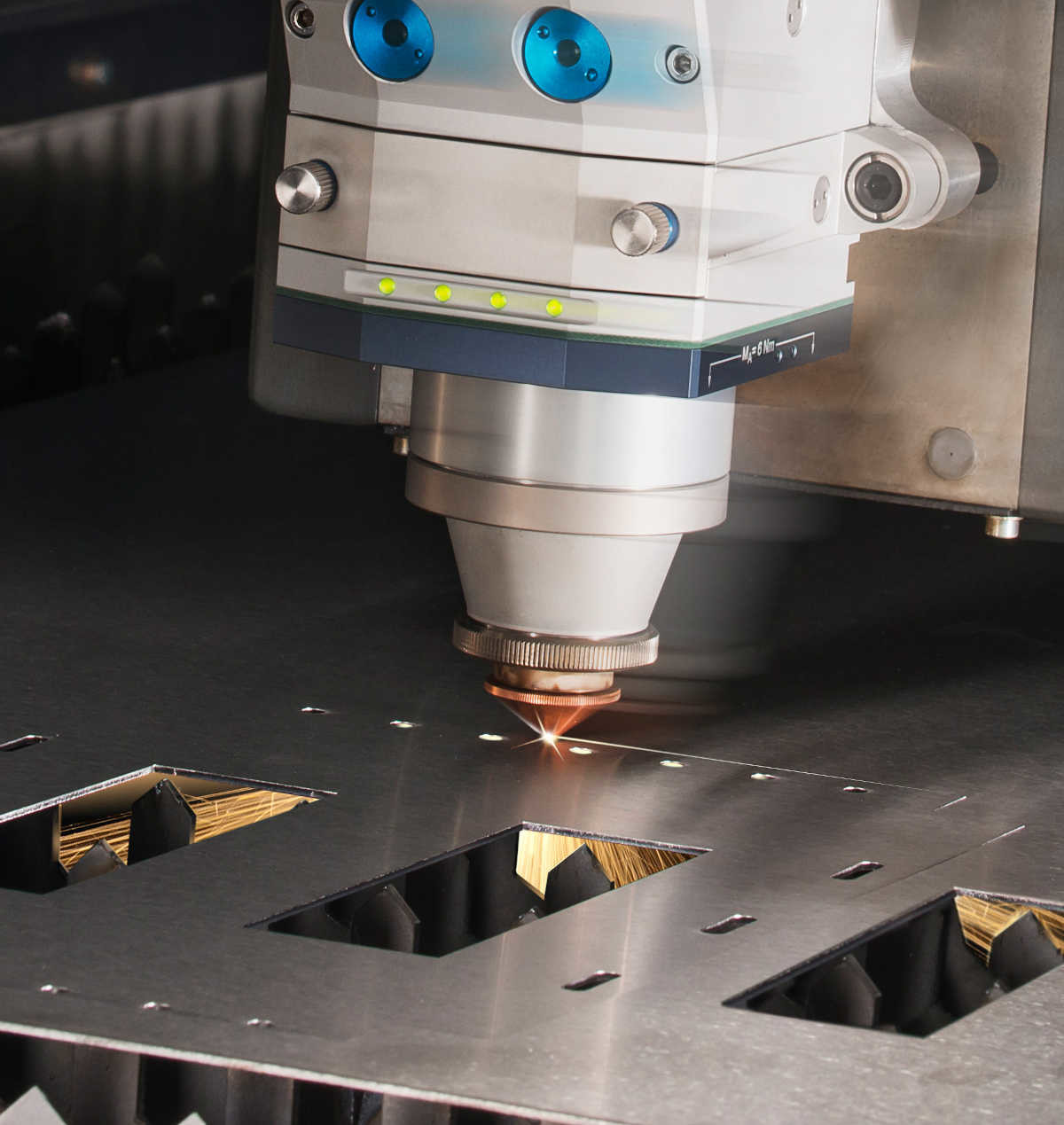

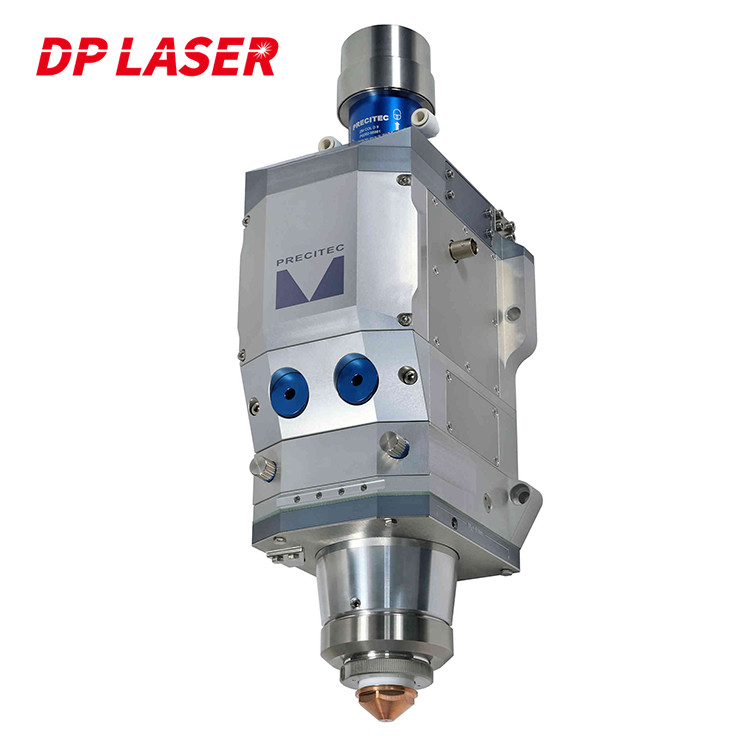

Precitec ProCutter 2.0 15KW 15000W Fiber Laser Cutting Head
Basic introduction
Laser cutting head is a new technology that has been applied to various industries, including metal cutting, glass cutting and engraving, etc.The components of the cutting head of the laser cutting machine are: nozzle, focusing lens and focus tracking system.
Feature
1. Maximum productivity thanks to superior technology
With the ProCutter 2.0, cutting processes that were previously hidden away can now be used in an industrially stable manner. It is not necessary anymore to choose between high quality and high speed. Now both are possible - increased machine utilization and a shorter payback period. The amount of rework is reduced to a minimum.
With the new ProCutter 2.0 generation, the highest cutting speeds can be achieved that were previously unthinkable. The cutting head works trouble-free up to 30 kW laser power thanks to its sophisticated cooling concept and the extended travel paths. If the full laser power is not required, the cutting speed can still be increased by up to 25% compared to the predecessor product due to the optimized design.
2. Intelligent sensors at its best
Component quality and process stability remain permanently constant: fluctuations in the process or in the quality of the material to be cut are compensated without the need for intervention by the machine operator. With PierceTec - automated piercing of the material - you achieve consistent hole and surface quality and can reduce the amount of rework required. PierceTec saves cycle time and operating costs.
Smart sensors integrated into the cutting head permanently monitor the condition of critical components or cutting process parameters. The sensors also provide the basis for planned maintenance and efficient utilization of spare parts. This ensures even safer operation and reduces follow-up costs.

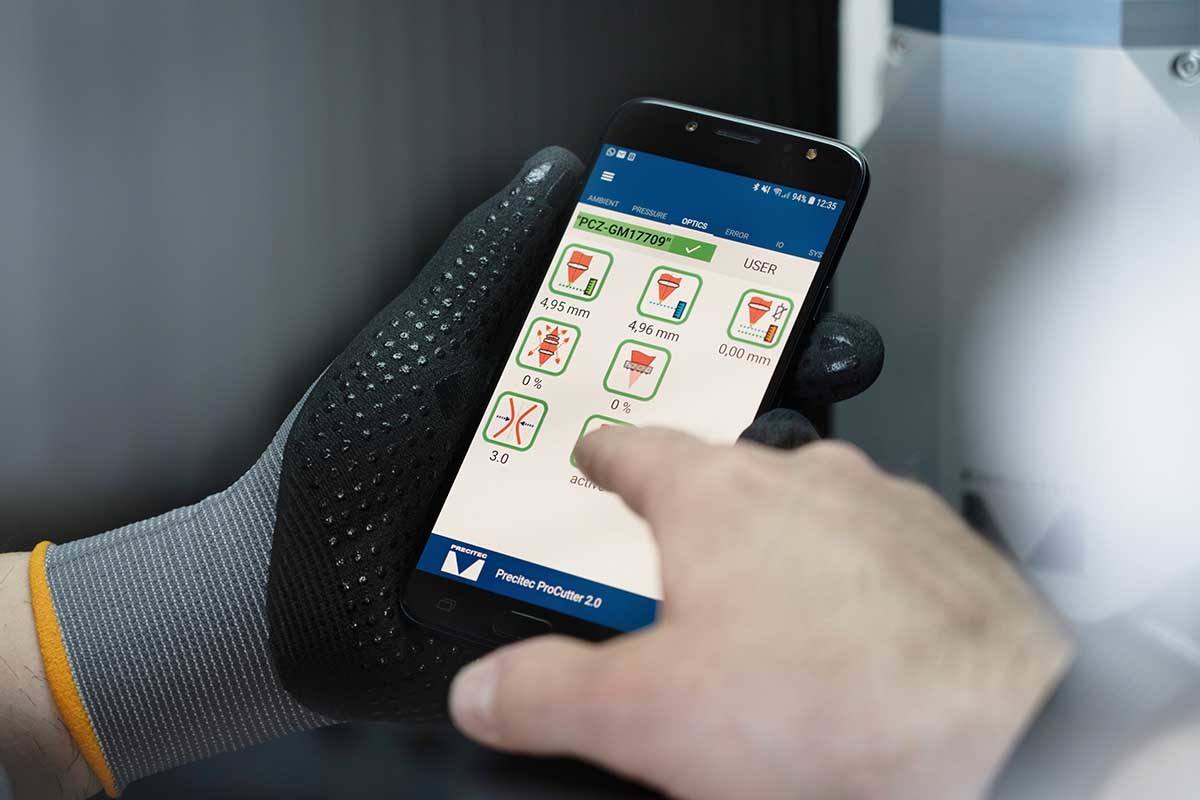

It is also possible to access the data via mobile devices and to visualize the current status in the ProCutter APP or to query error messages.
Application industry
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
|
|
ProCutter 2.0 Laser Cutting Up To 30KW |
ProCutter 2.0
1000-times reliability in use: the ProCutter 2.0 impresses worldwide with its high performance and automation. Its reliability and load capacity in flatbed and tube cutting systems has been perfected - up to a maximum laser power of 30 kW.
Technical data
| Max. laser power | 30 kW (with wave lengths of 1030 - 1090 nm) |
| Focal length collimation | 100 mm, Focus lengths: 150, 200 mm |
| NAmax | 0.18 (for 30 kW) |
| Dimensions (WXD) | 96 x 134 mm |
| Weight | 4.9 kg(FF150) |
