Cutter Plus Highly Productive Precitec Cutting Head 3D Robotic Fiber Laser

  • Cutter Plus Highly Productive Precitec Cutting Head 3D Robotic Fiber Laser
  • Cutter Plus Highly Productive Precitec Cutting Head 3D Robotic Fiber Laser
Place of Origin China
Brand Name DP LASER
Certification CE SGS FDA TUV ROHS
Model Number Laser Cutting Head
Minimum Order Quantity 1 Set
Price Please contact us
Packaging Details Wooden boxes that meet international export standards
Delivery Time 7-15 Work Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 300 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brand Name DP LASER Brand Precitec
Laser Type Fiber Laser Function Metal Material Cutting
Spare Parts Type Laser Cutting Head Warranty 1 Year
Condition New Application Metals Cutting
Weight (KG) 5 KG After-sales Service Overseas Engineers Provide Door-to-door Service
High Light

Highly Productive precitec cutting head

,

Fiber Laser precitec cutting head

,

Precitec fiber laser head
Leave a Message
Product Description

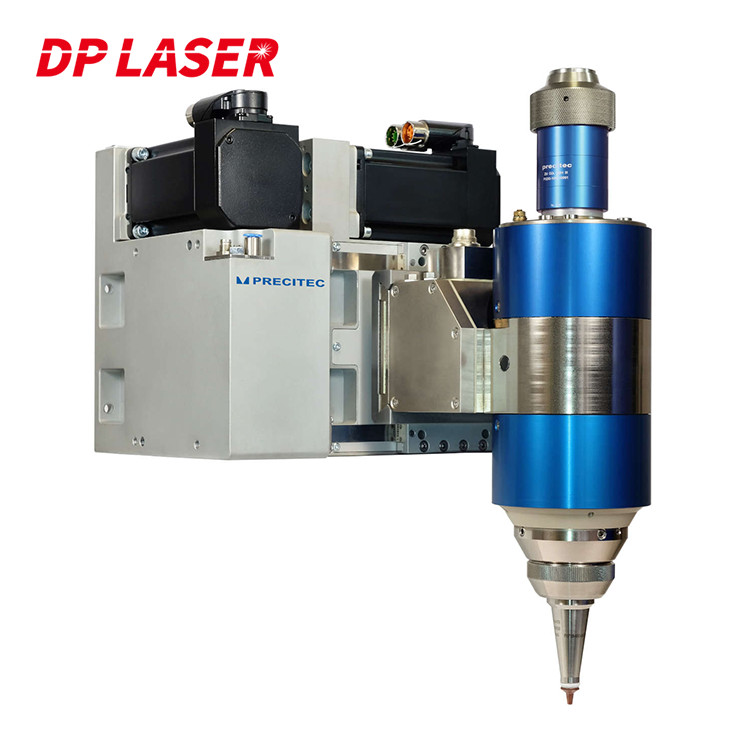

Precitec FormCutter Plus Highly Productive 3D Robotic Fiber Laser Cutting Head



Basic introduction

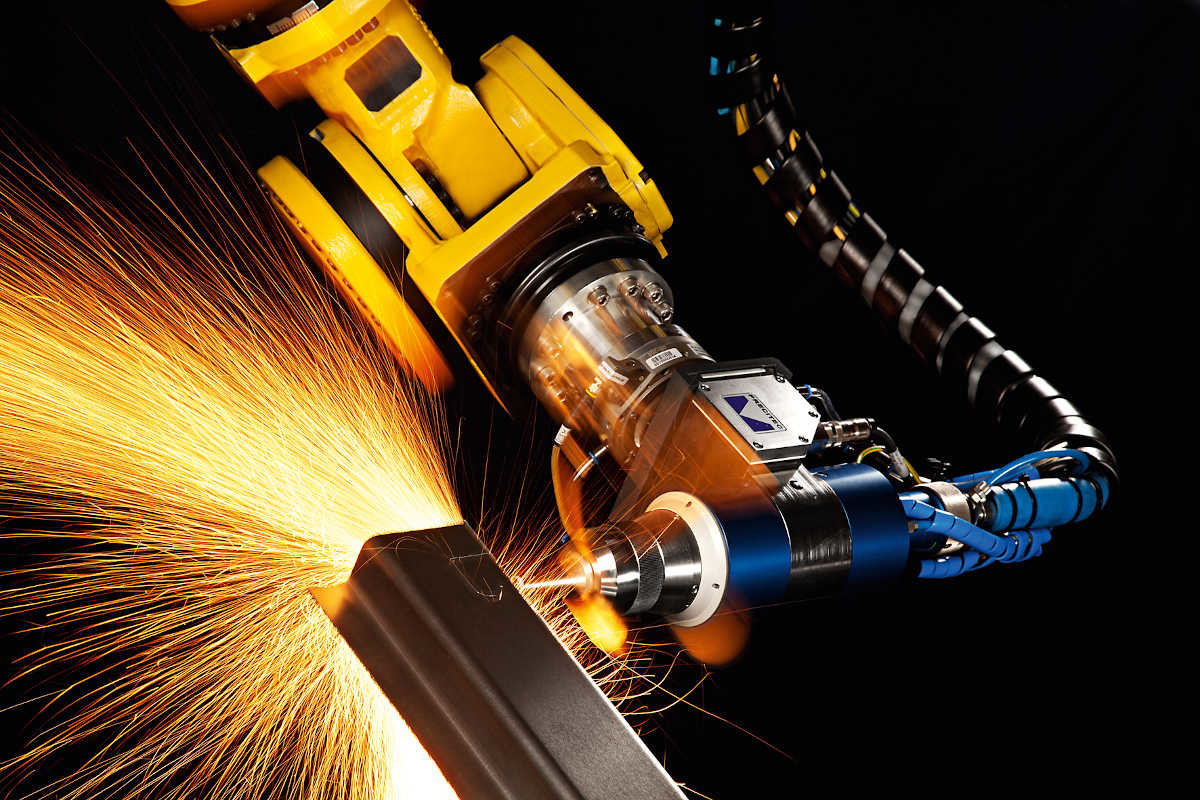

The FormCutter Plus is a tool system consisting of an X/Y-axis system and a cutting head with a Z-axis. It is usually attached to a robot arm. The robot positions the system above the machining point and then starts the cutting process. The FormCutter Plus system guides the cutting head through the programmed geometry and generates a high-precision cutout. The cutting movement is many times more precise and takes much less time than a robot could do it.
Classical applications in the automotive industry are the laser cutting of antenna holes or roof railing holes in the vehicle body. But also in truck production, there are a lot of design specific holes and recesses.

Features

Simple & robust & reliable

3D laser cutting systems are often integrated into complex production lines. They work under demanding environmental conditions. Plant operators place high demands on the stability and ease of operation of the cutting systems. A long service life of the FormCutter Plus, its slim design in the front area, and the easily accessible media connections in the upper system area are attractive features for integration into new or existing automated systems.



Application industry
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Cutter Plus Highly Productive Precitec Cutting Head 3D Robotic Fiber Laser 0Cutter Plus Highly Productive Precitec Cutting Head 3D Robotic Fiber Laser 1
Cutter Plus Highly Productive Precitec Cutting Head 3D Robotic Fiber Laser 2

FormCutter Plus

Highly Productive Robotic Cutting

The FormCutter Plus enables cut-outs of complex workpiece geometries with the highest precision. Especially for agile robot applications in the automotive industry, it convinces with best cutting quality.

Cutter Plus Highly Productive Precitec Cutting Head 3D Robotic Fiber Laser 3



Cutter Plus Highly Productive Precitec Cutting Head 3D Robotic Fiber Laser 4



Technical data

Working area 50 x 50 mm
Collimating focal length 75, 100 mm, Focus lengths: 75, 100, 150 mm
Axial length 560 mm (FF100)
Dimensions (WXD) 245 x 265 mm
Offline programming of the cutting contour by CAD CAM



Cutter Plus Highly Productive Precitec Cutting Head 3D Robotic Fiber Laser 5

Cutter Plus Highly Productive Precitec Cutting Head 3D Robotic Fiber Laser 6

Cutter Plus Highly Productive Precitec Cutting Head 3D Robotic Fiber Laser 7

Cutter Plus Highly Productive Precitec Cutting Head 3D Robotic Fiber Laser 8Cutter Plus Highly Productive Precitec Cutting Head 3D Robotic Fiber Laser 9Cutter Plus Highly Productive Precitec Cutting Head 3D Robotic Fiber Laser 10
