OSPRI 1KW-15KW Metal Fiber Laser Cutting Head 2D 3D QBH QD G5 Original

Place of Origin China
Brand Name DP LASER
Certification CE SGS FDA TUV ROHS
Model Number Laser Cutting Head
Minimum Order Quantity 1 Set
Price Please contact us
Packaging Details Wooden boxes that meet international export standards
Delivery Time 7-15 Work Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 300 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brand OSPRI Laser Type Fiber Laser
Function Metal Material Cutting Feature High Efficiency
Condition New Spare Parts Type Laser Cutting Head
Used For Fiber Laser Cutting Machine Application Metals Cutting
Weight (KG) 5 KG After-sales Service Overseas Engineers Provide Door-to-door Service
High Light

OSPRI Laser Cutting Head

,

1KW Laser Cutting Head

,

15KW fiber laser cutting head

Leave a Message
Product Description

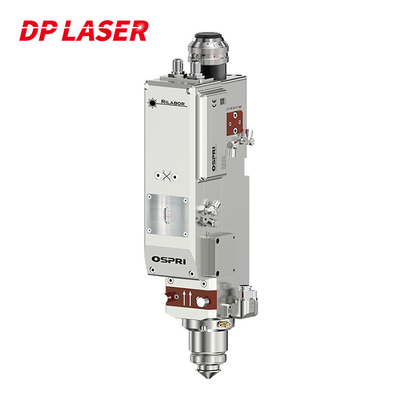

OSPRI 1KW-15KW 2D 3D QBH QD G5 Original Metal Fiber Laser Cutting Head



Basic introduction

Laser cutting head is a new technology, which has been applied to various industries, including metal cutting, glass cutting and engraving, etc.The components of the cutting head of the laser cutting machine are: nozzle, focusing lens and focus tracking system.

Application industry
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
OSPRI 1KW-15KW Metal Fiber Laser Cutting Head 2D 3D QBH QD G5 Original 0OSPRI 1KW-15KW Metal Fiber Laser Cutting Head 2D 3D QBH QD G5 Original 1
OSPRI 1KW-15KW Metal Fiber Laser Cutting Head 2D 3D QBH QD G5 Original 2 OSPRI 1KW-15KW Metal Fiber Laser Cutting Head 2D 3D QBH QD G5 Original 3 OSPRI 1KW-15KW Metal Fiber Laser Cutting Head 2D 3D QBH QD G5 Original 4

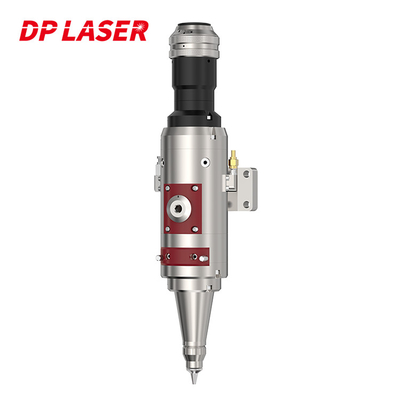

LC201

3D For Robot Cutting

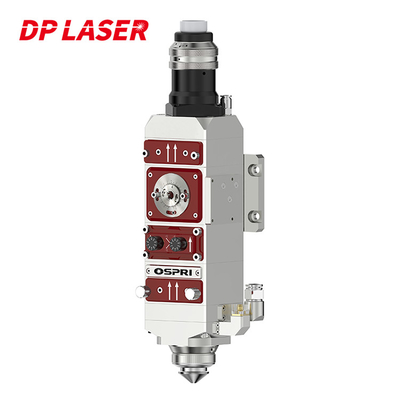

LC209

2KW Manual

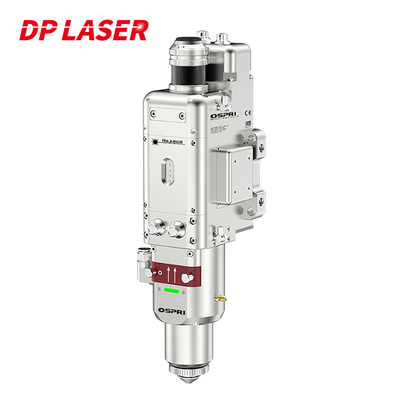

LC218

3D For Tube Cutting

OSPRI 1KW-15KW Metal Fiber Laser Cutting Head 2D 3D QBH QD G5 Original 5 OSPRI 1KW-15KW Metal Fiber Laser Cutting Head 2D 3D QBH QD G5 Original 6 OSPRI 1KW-15KW Metal Fiber Laser Cutting Head 2D 3D QBH QD G5 Original 7

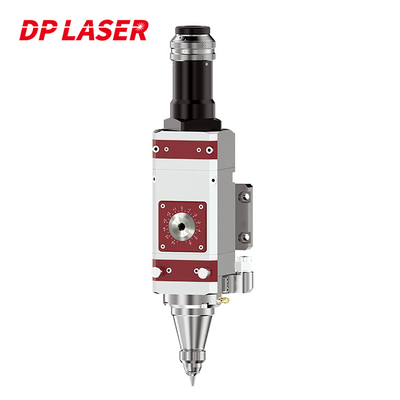

LC40

Laser Cutting Up To 4KW

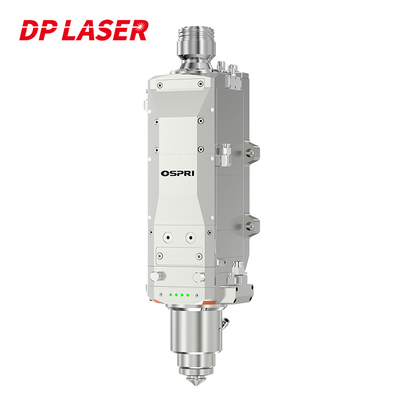

LC608M

Laser Cutting Up To 6KW

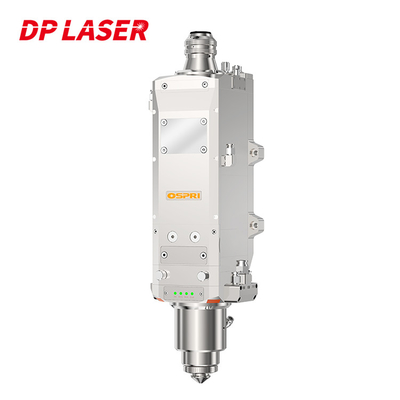

LC80PLUS

Laser Cutting Up To 8KW

OSPRI 1KW-15KW Metal Fiber Laser Cutting Head 2D 3D QBH QD G5 Original 8 OSPRI 1KW-15KW Metal Fiber Laser Cutting Head 2D 3D QBH QD G5 Original 9 OSPRI 1KW-15KW Metal Fiber Laser Cutting Head 2D 3D QBH QD G5 Original 10
LC808M

Laser Cutting Up To 8KW

LC1208

Laser Cutting Up To 12KW

LC1508

Laser Cutting Up To 15KW

LC201
3D Cutting Head

Rated Power:≤2000W

OSPRI 1KW-15KW Metal Fiber Laser Cutting Head 2D 3D QBH QD G5 Original 11

1.Focus change by focus lens movement.

2.Suits for QBH connector.

3.Provide with Z axis module assembly (optional).

4.Dust-proof design with three protection windows.

5.Light and compact structure is favorable for 3D/robot cutting.



Technical data

Focus Length 150mm
Collimation Length 75mm
Focusing Range -5mm-+5mm
Weight 1.5KG



LC209

Manual Focus Cutting Head

Rated Power:≤2000W

OSPRI 1KW-15KW Metal Fiber Laser Cutting Head 2D 3D QBH QD G5 Original 12



1.Focus change by collimation lens movement.

2.Suits for QBH connector.

3.Dust-proof design with three protection windows.

4.Modular catridge of focus protection widnow is convenient for maintenance.



Technical data

Focus Length 125mm/150mm
Collimation Length 100mm
Focusing Range -9mm-+7mm
Auxiliary Gas ≤2.5Mpa
Weight 2.7KG



LC218

Manual Focus Cutting Head

Rated Power:≤2000W

OSPRI 1KW-15KW Metal Fiber Laser Cutting Head 2D 3D QBH QD G5 Original 13



1.Compatible with standard QBH

2.Focus change by focus lens movement.

3.Three protective mirrors are strictly dust-proof

4.Small size, light weight, suitable for steel pipe cutting



Technical data

Applicable Wavelength 1064nm
Focus Length 150mm
Collimation Length 100mm
Focusing Range -7mm-+6mm
Auxiliary Gas ≤1Mpa
Weight 2.7KG



LC40

Auto Focus Cutting Head

Rated Power:≤4000W

OSPRI 1KW-15KW Metal Fiber Laser Cutting Head 2D 3D QBH QD G5 Original 14



1.Suits for QBH connector.

2.Water cooling for all optics and cavity of cutting head.

3.Dust-proof design with three protection windows.

4.Applicable laser power 2000W/4000W.

5.Light in weight and compact in size, cost-effective.



Technical data

Focus Length 125mm/150mm/200mm
Collimation Length 75mm/100mm
Focusing Range -10mm-+10mm
Focusing Speed ≤100mm/s
Auxiliary Gas ≤2.5Mpa
Weight 3.9KG



LC608M

Intelligent Auto Focus Cutting Head

Rated Power:≤6000W

OSPRI 1KW-15KW Metal Fiber Laser Cutting Head 2D 3D QBH QD G5 Original 15



1.High speed of auto focusing by collimation with servo motor.

2.Dust-proof design with three protection windows.

3.Suits for QBH, QD connector.

4.Modular catridge of focus protection widnow is convenient for maintenance.

5.Optics temperature monitor, air leakage monitor and protection window in place monitor.



Technical data

Focus Length 150mm/200mm
Collimation Length 100mm
Focusing Range -16mm-+12mm
Focusing Speed ≤200-400mm/s
Auxiliary Gas ≤3Mpa
Weight

7.5KG



LC80PLUS

Auto Focus Cutting Head

Rated Power:6000W/8000W

OSPRI 1KW-15KW Metal Fiber Laser Cutting Head 2D 3D QBH QD G5 Original 16



1.High speed of auto focusing by collimation with servo motor.

2.Dust-proof design with three protection windows.

3.Suits for QBH,QD Connector

4.Modular catridge of focus protection widnow is convenient for maintenance.



Technical data

Focus Length 150mm/200mm
Collimation Length 100mm
Focusing Range

-16mm-+12mm

-25mm-+20mm

Focusing Speed ≤200-400mm/s
Auxiliary Gas ≤3Mpa
Weight 5.5KG



LC808M

Intelligent Auto Focus Cutting Head

Rated Power:≤8000W

OSPRI 1KW-15KW Metal Fiber Laser Cutting Head 2D 3D QBH QD G5 Original 17



1.High speed of auto focusing by collimation with servo motor.

2.Dust-proof design with three protection windows.

3.Suits for QBH, QD connector.

4.Modular catridge of focus protection widnow is convenient for maintenance.

5.Optics temperature monitor, air leakage monitor and protection window in place monitor.



Technical data

Focus Length 150mm/200mm
Collimation Length 100mm
Focusing Range

-25mm-+20mm

Focusing Speed ≤200-400mm/s
Auxiliary Gas ≤3Mpa
Weight 7.5KG



LC1208

Intelligent Auto Focus Cutting Head

Rated Power:12000W

OSPRI 1KW-15KW Metal Fiber Laser Cutting Head 2D 3D QBH QD G5 Original 18

1.High speed of auto focusing by collimation with servo motor.

2.Dust-proof design with three protection windows.

3.Suits for QBH, QD connector.

4.Modular catridge of focus protection widnow is convenient for maintenance.

5.Optics temperature monitor, air leakage monitor and protection window in place monitor.



Technical data

Focus Length 200mm
Collimation Length 100mm
Focusing Range -25mm-+20mm
Focusing Speed 400mm/s
Auxiliary Gas ≤3Mpa
Weight 7.5KG



LC1508

Intelligent Auto Focus Cutting Head

Rated Power:15000W

OSPRI 1KW-15KW Metal Fiber Laser Cutting Head 2D 3D QBH QD G5 Original 19



1.High speed of auto focusing by collimation with servo motor.

2.Dust-proof design with three protection windows.

3.Suits for QBH, QD connector.

4.Modular catridge of focus protection widnow is convenient for maintenance.

5.Optics temperature monitor, air leakage monitor and protection window in place monitor.



Technical data

Focus Length 200mm
Collimation Length 100mm
Focusing Range -25mm-+20mm
Focusing Speed 400mm/s
Auxiliary Gas ≤3Mpa
Weight 7.5KG
