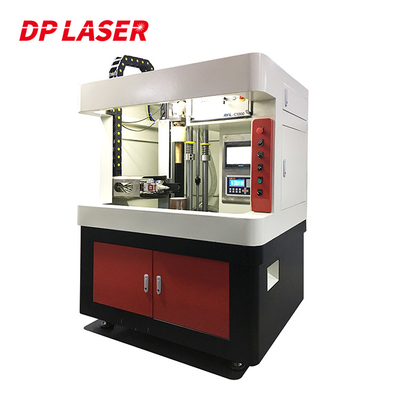

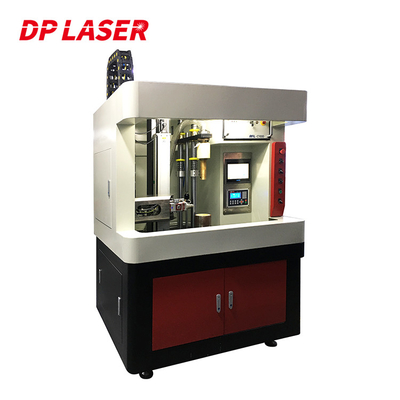

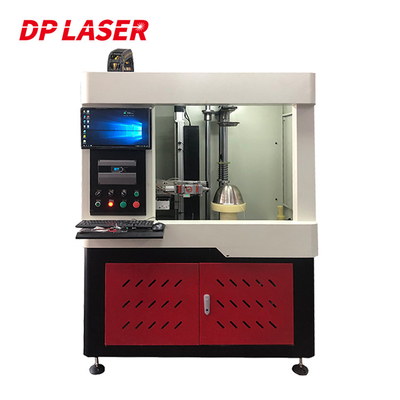

Contiunous 3d Laser Cutting Machine Metal Kettle Thermos Cup Bottle Cut Edge Optical 80m/min
| Place of Origin | China |
|---|---|
| Brand Name | DP LASER |
| Certification | CE SGS FDA TUV ROHS |
| Model Number | Laser Cutting Machine |
| Minimum Order Quantity | 1 Set |
| Price | Please contact us |
| Packaging Details | Wooden boxes that meet international export standards |
| Delivery Time | 10-30 Work Days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 300 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Laser Source | Raycus MAX IPG NLIGHT Laser Source | Laser Power | 1000W/1500W/2000W |
|---|---|---|---|
| Power Supply | 380V/50HZ | Cooling Mode | WATER COOLING |
| Cutting Speed | 80m/min | Cutting Thickness | 0-10mm |
| Application | LASER CUTTING, Metal Materials | Keyword | Kettle Laser Cutting Machine |
| Control System | Cypcut | After-sales Service Provided | Overseas Engineers Provide Door-to-door Service |
| High Light | Contiunous 3d laser cutting machine,3d laser cutting machine 80m/min |
||
Product Description
Metal Kettle Thermos Cup Bottle Cut Edge Optical Fiber Contiunous 3D Laser Cutting And Flatting Machine
3D laser cutting uses the flexible and fast action performance of industrial robots. According to the size of the workpiece to be cut and processed by the user, you can choose to install the robot or flip the robot to teach programming or offline programming for different products and different trajectories. The six-axis loading fiber laser cutting head performs three-dimensional cutting of irregular workpieces; the fiber laser cutting head is equipped with a follow-up device and an optical path transmission device, and the fiber is used to transmit the laser to the cutting head, and then the focusing system is used for focusing. Sheet Metal has developed multiple sets of focusing systems to perform multi-directional cutting of various three-dimensional metal sheets to meet customer needs.
Features
1. The laser output power is stable and the processing format is large.
2. It can precisely cut metal materials of different thicknesses such as sheet metal and stainless steel.
3. Equipped with a five-inch LCD screen and an offline numerical control system, the operation is more convenient.
Applicable Industries
Widely used in aerospace, automobile and ship, machinery manufacturing, elevator manufacturing, advertising production, household appliance manufacturing, medical equipment, hardware, decoration, metal external processing services and other manufacturing industries.
Machine Parameters
| Cutting thickness | 0.21-2mm/0.21-3.5mm |
| Cutting diameter | 8-200mm |
| Cutting height | 500mm |
Technical Parameters
| Model | BT-CW1000C/1500C |
| Laser power | 1000W/1500W |
| Laser wave length | 1070nm±5nm |
| Laser model | Single model |
| Photoelectric conversion efficiency | 30% |
| Working model | Continuous |
| Power adjustable range | 5-95% |
| Power instabilty | ≤2% |
| Core diameter of Transmission optical fiber | 20um -50um |
| Smallest light spot | 0.1mm |
| Optical fiber length | 10m |
| cooling type | Water cooling |
| Cooling type |
C1000/C2000 C1000/C2000 double Temperature and double circulation |
| Cooling water temperature | 20-25℃ |
| Voltage | AC 220V±10% AC380±10%,50/60Hz |
| Working environment temperature | 10~35℃ |
| Working environment Humidity | ≤95% |
