3D Metal Pipe Industrial Laser Solutions Auto Feeding Round Tube Square Tube 150m/min

Place of Origin China
Brand Name DP LASER
Certification CE SGS FDA TUV ROHS
Model Number Laser Cutting Machine
Minimum Order Quantity 1 Set
Price Please contact us
Packaging Details Wooden boxes that meet international export standards
Delivery Time 10-30 Work Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 300 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Laser Source Raycus MAX IPG NLIGHT Laser Source Laser Power 1000W-3000W
Power Supply 380V/50HZ Cutting Speed 150m/min
Cutting Thickness 0-80mm Keyword Kettle Laser Cutting Machine
Cooling Mode WATER COOLING Maximum Acceleration 1.5G
Weight (KG) 2000 KG After-sales Service Provided Overseas Engineers Provide Door-to-door Service
High Light

Industrial Laser Solutions 3000W

,

Industrial Laser Solutions 150m/min

,

150m/min laser pipe cutting machine

Leave a Message
Product Description

Metal Kettle Thermos Cup Bottle Cut Edge Optical Fiber Contiunous 3D Laser Cutting And Flatting Machine



The 3D laser pipe cutting machine is mainly used for laser cutting of standard metal pipes (round pipes, rectangular pipes, elliptical pipes, etc.), profiles (engine steel, channel steel, angle steel, etc.) and some special-shaped pipes.



Features

1. High cutting precision, fast speed, contour precision can reach ±0.1mm.



2. The incision is smooth, without burrs, the slit is thin, and the material loss is small.



3. Non-contact processing, and the heat affected zone of laser cutting is very small, and there is almost no deformation.



4. High cutting efficiency, mass production can be realized.



5. Good flexibility, using professional CNC system and kit programming software, the product can be changed or replaced at any time.



Applicable Industries

Widely used in sheet metal processing, kitchen utensils, lamps, automobiles, medical equipment, hardware, fitness equipment and other industries.

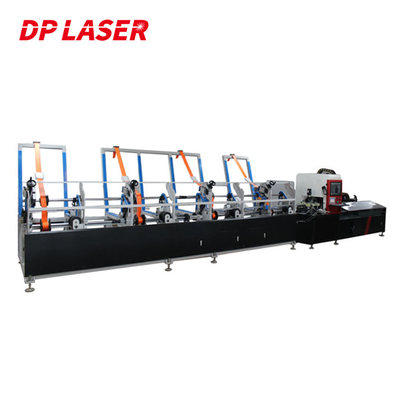

3D Metal Pipe Industrial Laser Solutions Auto Feeding Round Tube Square Tube 150m/min 0

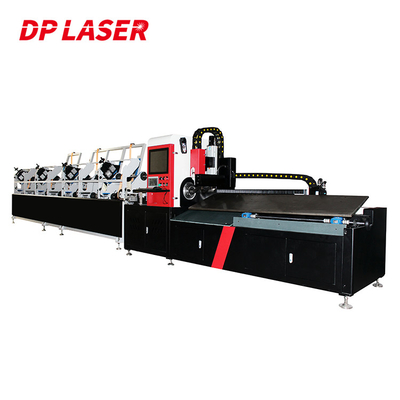

3D Metal Pipe Industrial Laser Solutions Auto Feeding Round Tube Square Tube 150m/min 1

3D Metal Pipe Industrial Laser Solutions Auto Feeding Round Tube Square Tube 150m/min 2

Apply to Auto feeding round pipeφ≤89mm,Square pipe≤63*63mm
Cutting accuracy ±0.3mm,Tube bend≤2mm/m
Feeding length 4000mm-6200mm

Primary filler weight



According to the size of the pipe, the storage space of the trough is limited, and the maximum load1.5t
Laser power 1000W/1500W/2000W/3000W
Laser wavelength 1070nm±5nm
laser mode single mode
Photoelectric conversion efficiency 30%
Working way continuous
Power adjustment range 5-95%
Power instability ≤2%
Transmission fiber core diameter 25um-50um
Fiber length 10m
Cooling method Water cooling
Chiller model C1000/C1500/C2000/C3000 Double temperature double circulation chiller
Cooling water temperature 20-25℃
Power supply AC380±10%,50/60Hz
Working temperature 10~35℃
Working environment humidity ≤95%
Total weight 2T
