DP LASER Automatic Fixture Industrial Laser Solutions Stainless Steel Metal Kettle Bottle Cylinder Straight Seam

Place of Origin China
Brand Name DP LASER
Certification CE SGS FDA TUV ROHS
Model Number Laser Welding Machine
Minimum Order Quantity 1 Set
Price Please contact us
Packaging Details Wooden boxes that meet international export standards
Delivery Time 10-30 Work Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 300 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Laser Source Raycus Laser Power 1000W
Power Supply 380V Pulse Width 0.5~20ms
Focal Spot Diameter 0.3-1.5mm Dimensions 80*95*140cm
Laser Wavelength 1070nm Application Metal Stainless Steel Laser Welder
Weight (KG) 500 KG After-sales Service Provided Overseas Engineers Provide Door-to-door Service
High Light

1070nm Industrial Laser Solutions

,

380V Industrial Laser Solutions

Leave a Message
Product Description

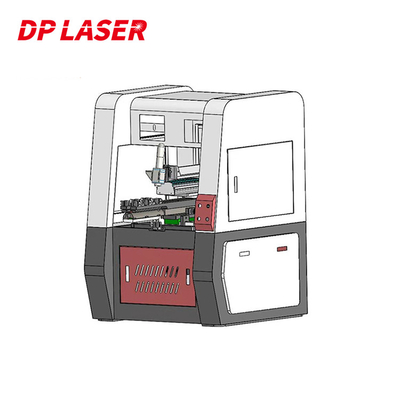

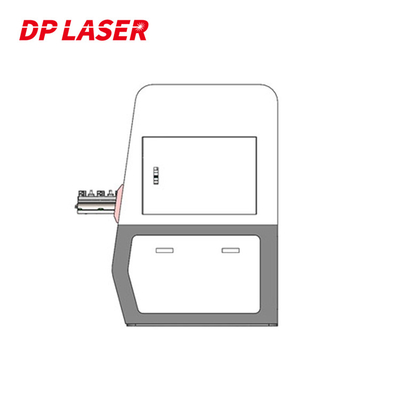

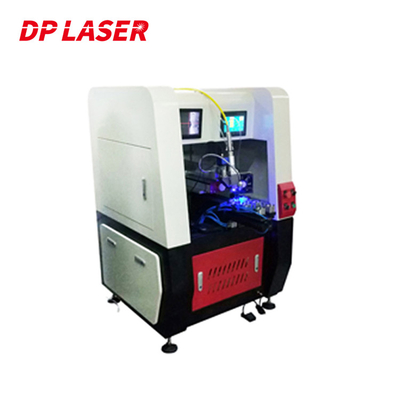

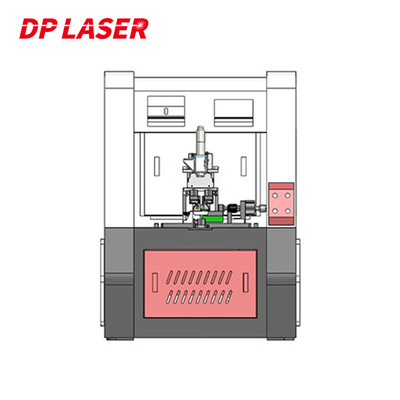

DP LASER Stainless Steel Metal Kettle Bottle Cylinder Straight Seam Automatic Fixture Laser Welding Machine



Laser welding is the use of high-energy laser pulses to locally heat the material in a small area. The energy of the laser radiation diffuses into the interior of the material through heat conduction, and the material is melted to form a specific molten pool. It is a new type of welding method, mainly for the welding of thin-walled materials and precision parts, and can realize spot welding, butt welding, stitch welding, sealing welding, etc. Small deformation, fast welding speed, smooth and beautiful welding seam, no need or simple treatment after welding, high welding seam quality, no pores, precise control, small focusing spot, high positioning accuracy, and easy automation.



Features

1. High degree of automationsimple welding process.


2. The non-contact operation method can meet the requirements of cleanliness and environmental protection.


3. The use of laser welding machine to process the workpiece can improve the work efficiency, the finished workpiece has beautiful appearance, small welding seam, large welding depth and high welding quality.



Applicable Industries

It is widely used in the processing of dental dentures, keyboard welding, silicon steel sheet welding, sensor welding, battery sealing cover welding and so on.

DP LASER Automatic Fixture Industrial Laser Solutions Stainless Steel Metal Kettle Bottle Cylinder Straight Seam 0

DP LASER Automatic Fixture Industrial Laser Solutions Stainless Steel Metal Kettle Bottle Cylinder Straight Seam 1

DP LASER Automatic Fixture Industrial Laser Solutions Stainless Steel Metal Kettle Bottle Cylinder Straight Seam 2

Laser Power 1000W
Laser Source Raycus/Max/IPG/nLIGHT
Laser Head OSPRI
Laser Wavelength 1070nm
Maximum Thickness 0.25-0.7mm
Welding Straight Seam Length
25-250mm (Customizable)
Supported Materials Stainless Steel
Fixture Support Customization
Repeating Precision ±0.01mm
Machine Weight About 500KG
Voltage 380V/3-Phase

DP LASER Automatic Fixture Industrial Laser Solutions Stainless Steel Metal Kettle Bottle Cylinder Straight Seam 3

DP LASER Automatic Fixture Industrial Laser Solutions Stainless Steel Metal Kettle Bottle Cylinder Straight Seam 4

DP LASER Automatic Fixture Industrial Laser Solutions Stainless Steel Metal Kettle Bottle Cylinder Straight Seam 5

DP LASER Automatic Fixture Industrial Laser Solutions Stainless Steel Metal Kettle Bottle Cylinder Straight Seam 6

DP LASER Automatic Fixture Industrial Laser Solutions Stainless Steel Metal Kettle Bottle Cylinder Straight Seam 7

DP LASER Automatic Fixture Industrial Laser Solutions Stainless Steel Metal Kettle Bottle Cylinder Straight Seam 8
