4KW Laser Cutting Machine Head Precitec SolidCutter Complex 3D Robot

Place of Origin China
Brand Name DP LASER
Certification CE SGS FDA TUV ROHS
Model Number Laser Cutting Head
Minimum Order Quantity 1 Set
Price Please contact us
Packaging Details Wooden boxes that meet international export standards
Delivery Time 7-15 Work Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 300 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brand Precitec Brand Name DP LASER
Laser Type Fiber Laser Marketing Type Ordinary Product
Condition New Feature High Efficiency
Used For Fiber Laser Cutting Machine Application Metals Cutting
Weight (KG) 5 KG After-sales Service Overseas Engineers Provide Door-to-door Service
High Light

4KW Laser Cutting Machine Head

,

SolidCutter Laser Cutting Machine Head

Leave a Message
Product Description

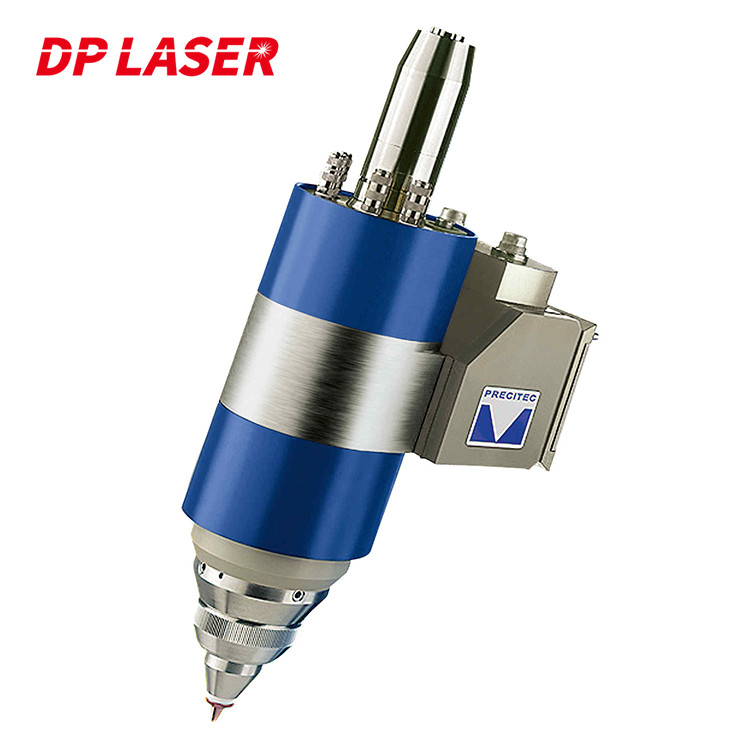

Precitec SolidCutter Complex 3D Robot 4KW 4000W Fiber Laser Cutting Head



Basic introduction

High productivity and flexibility in 24/7 operation:

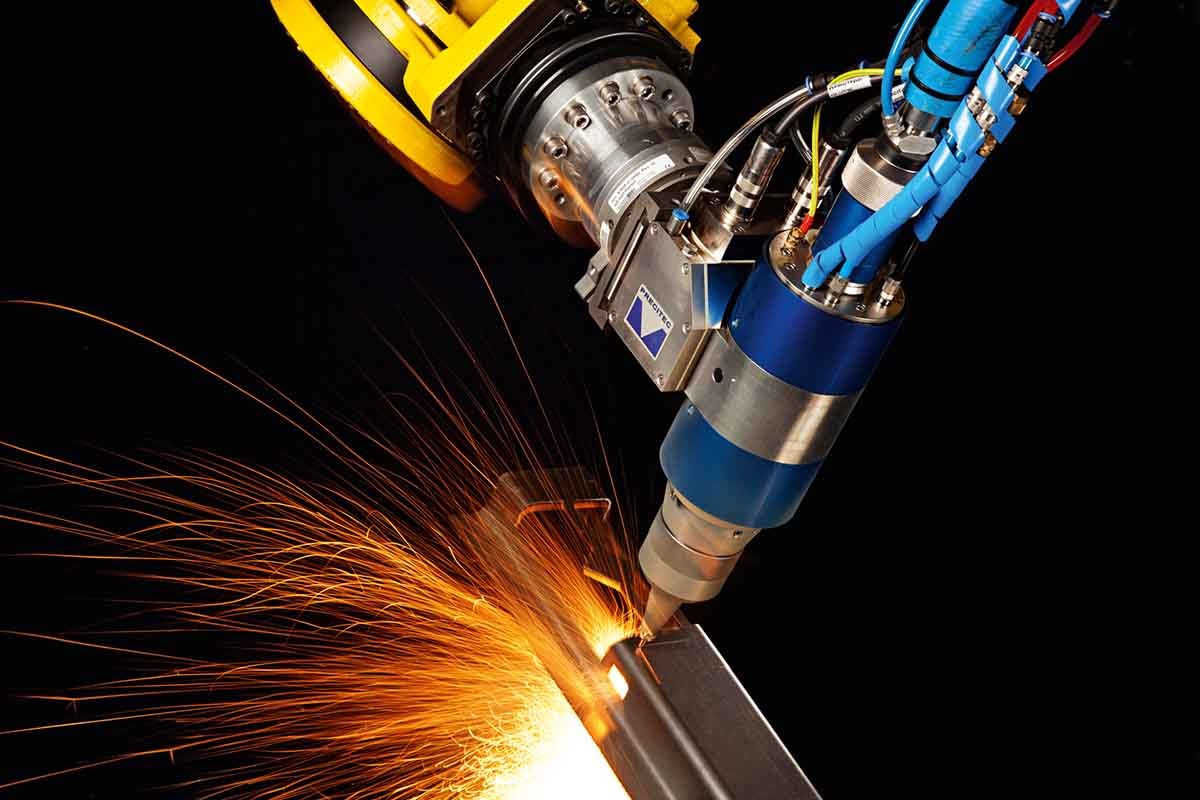

The SolidCutter is mainly used in 3D laser cutting systems for the automobile industry. Robot guided laser cutting is the flexible and highly productive method for the processing of high-strength body components and profiles - for example, for making openings for roof rails and contours in vehicle doors. The compact and weight-optimized design of the laser cutting head results in high dynamics and great freedom of movement. The integrated fine adjustment of the working distance ensures that any inaccurate web guidance is reliably compensated. This allows you to achieve a consistently high cutting quality even at high feed rates.


Features

Simple, robust and reliable:
Complex production lines are often equipped with 3D laser cutting systems. They work under difficult environmental conditions and must meet high requirements. The long service life of the SolidCutter, its slim design and the easily accessible media connections in the upper head area are attractive features for cost-effective integration into automated systems.
The technology is proven and tested and guarantees a high degree of economic efficiency as reworking is minimized and set-up costs are eliminated.



Application industry
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
4KW Laser Cutting Machine Head Precitec SolidCutter Complex 3D Robot 04KW Laser Cutting Machine Head Precitec SolidCutter Complex 3D Robot 1
4KW Laser Cutting Machine Head Precitec SolidCutter Complex 3D Robot 2

SolidCutter

Complex 3D laser cutting



The SolidCutter enables the machining of spatial geometries with highest accuracy. It convinces in the 3D machining of complex individual contours on metallic materials.

4KW Laser Cutting Machine Head Precitec SolidCutter Complex 3D Robot 3

4KW Laser Cutting Machine Head Precitec SolidCutter Complex 3D Robot 4



Technical data

Max. laser power 4 kW (with wave lengths of 1030 - 1090 nm)
Focal length collimation 75, 100 mm, Focus lengths: 75, 100, 125 mm
NAmax 0.16 at FC75, NAmax: 0.12 at FC100
Dimensions (WXD) 163 x 132 mm
Stroke ± 15 mm
Weight 5.0 kg



4KW Laser Cutting Machine Head Precitec SolidCutter Complex 3D Robot 5

4KW Laser Cutting Machine Head Precitec SolidCutter Complex 3D Robot 6

4KW Laser Cutting Machine Head Precitec SolidCutter Complex 3D Robot 7
