Dust Proof 15KW Fiber Laser Cutting Head Precitec ProCutter Thor For Cutting Machine
| Place of Origin | China |
|---|---|
| Brand Name | DP LASER |
| Certification | CE SGS FDA TUV ROHS |
| Model Number | Laser Cutting Head |
| Minimum Order Quantity | 1 Set |
| Price | Please contact us |
| Packaging Details | Wooden boxes that meet international export standards |
| Delivery Time | 7-15 Work Days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 300 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Brand | Precitec | Product Name | Fiber Laser Cutting Head |
|---|---|---|---|
| Laser Type | Fiber Laser | Marketing Type | Ordinary Product |
| Condition | New | Feature | High Efficiency |
| Key Selling Points | Competitive Price | Function | Metal Material Cutting |
| Weight (KG) | 10 KG | After-sales Service | Overseas Engineers Provide Door-to-door Service |
| High Light | DustProof Laser Cutting Head,15 KW Laser Cutting Head,15 KW Fiber Laser Cutting Head |
||
Product Description

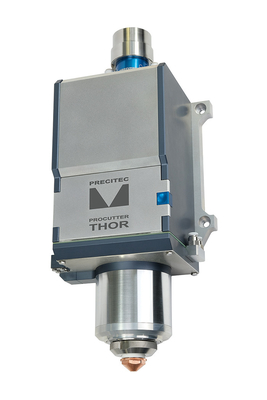

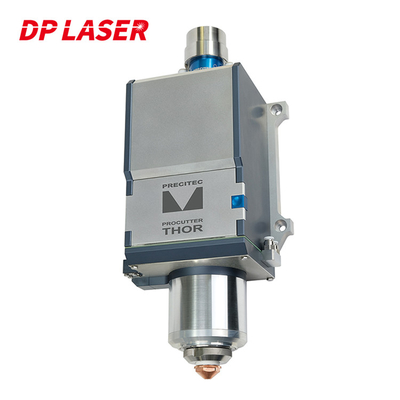

Precitec ProCutter Thor Dust-Proof 15KW 15000W Fiber Laser Cutting Head For Fiber Laser Cutting Machine
Basic introduction
Laser cutting head is a new technology that has been applied to various industries, including metal cutting, glass cutting and engraving, etc.
Features
1.Permanently excellent cutting quality and flexibility
The basis for smooth and right-angled cutting edges with minimal burr is provided by the ultra-stable distance sensor system. It is a guarantee even at very high acceleration values. The adjustment of the focus position with the proven drive technology ensures low process non-productive times. Different thicknesses and materials can thus be cut very flexibly and with high precision at any time. With higher travels of the focus position, it convinces as the best in its class and also makes process-stable processing of thick materials possible.
2.Low service costs and less downtime
If the cutting head needs to be serviced, the design allows quick and easy access to the optics. A necessary change of these requires only half the time. Built-in protective glasses safeguard the valuable optics from the direction of the process zone and the fiber bush, thus significantly extending the service life.
Application industry
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
|
|
ProCutter Thor Laser Cutting Up To 15KW |
ProCutter Thor
The one-piece housing of the ProCutter Thor is absolutely dust-tight and the best prerequisite for long-term use. The cutting head even accepts laser cutting of medium to thick sheet thicknesses without compromise. The patented, innovative „Clean Back“ design places service-relevant access to the optics and protective glasses at the rear of the head - the cleanest area of the entire cutting system.
Technical data
| Max. laser power | 15 kW (with wave lengths of 1030 - 1090 nm) |
| Focal length collimation | 100mm |
| Focal lengths focusing | 200mm |
| NAmax | 0.13 |
| Dimensions (WXD) | 137 x 185 mm |
| Vertical focus adjustment range | +20mm to -35mm |
