Sheet And Integration Tube Laser Cutter Machine 8025 1000W-20000W

Place of Origin China
Brand Name DP LASER
Certification CE SGS FDA TUV ROHS
Model Number Laser Cutting Machine
Minimum Order Quantity 1 Set
Price Please contact us
Packaging Details Wooden boxes that meet international export standards
Delivery Time 10-30 Work Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 300 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Laser Source Raycus Max IPG NLIGHT Optional Laser Power 1000W-20000W
Laser Type Fiber Laser Power Supply 380V/50HZ
Function Cutting Metal Materials Condition New
Laser Head Raytools Precitec WSX OSPRI Optional Control System Cypcut Hypcut Beckhoff Optional
Configuration 4-axis After-sales Service Provided Overseas Engineers Provide Door-to-door Service
High Light

tube laser cutter machine 20000W

,

tube laser cutter machine 8025

,

metal tube laser cutter 8025

Leave a Message
Product Description

8025 1000W-20000W Metal Sheet And Tube Integration Fiber Laser Cutting Machine



Basic introduction
The on-board automatic focusing function of the integrated fiber laser cutting of the interactive plate and tube makes the perforation time greatly shortened compared with the ordinary cutting head, especially suitable for high-speed cutting of thicker plates.



Features

The machine tool adopts gantry type double rack and pinion, double servo motor transmission, high torque and high inertia output, which effectively improves the production efficiency of the equipment;

The equipment has power failure memory function; fallback cutting function; fault automatic alarm, emergency shutdown function; fault content automatic display function;

The laser cutting head is equipped with automatic focusing function, which greatly shortens the perforation time compared with ordinary cutting heads, especially suitable for high-speed cutting of thicker plates;

Equipped with a pneumatic self-centering chuck, it can realize symmetrical independent double-action clamping, and the clamping process does not require manual intervention and adjustment;

The surrounding outer protection design is adopted to effectively protect the safety of the staff;

The professional laser cutting system is compatible with the cutting process of plates and pipes, and has the functions of graphic intelligent layout, automatic edge finding and positioning of the pipe center and sharp corner smoothing;

The machine bed is precision machined by a large gantry machining center; it is annealed in a large gas-fired trolley-type heat treatment furnace to eliminate the internal stress of the welding bed to the greatest extent, so that the equipment can achieve higher precision and higher stability.



Application industry

Widely used in kitchen appliances, sheet metal chassis cabinets, mechanical equipment, electrical equipment, lighting hardware, advertising signs, auto parts, display equipment, various metal products, sheet metal cutting and other industries. It can cut various metal plates and pipes, mainly used for rapid cutting of stainless steel, carbon steel, manganese steel, galvanized sheet, various alloy sheets, rare metals and other materials.

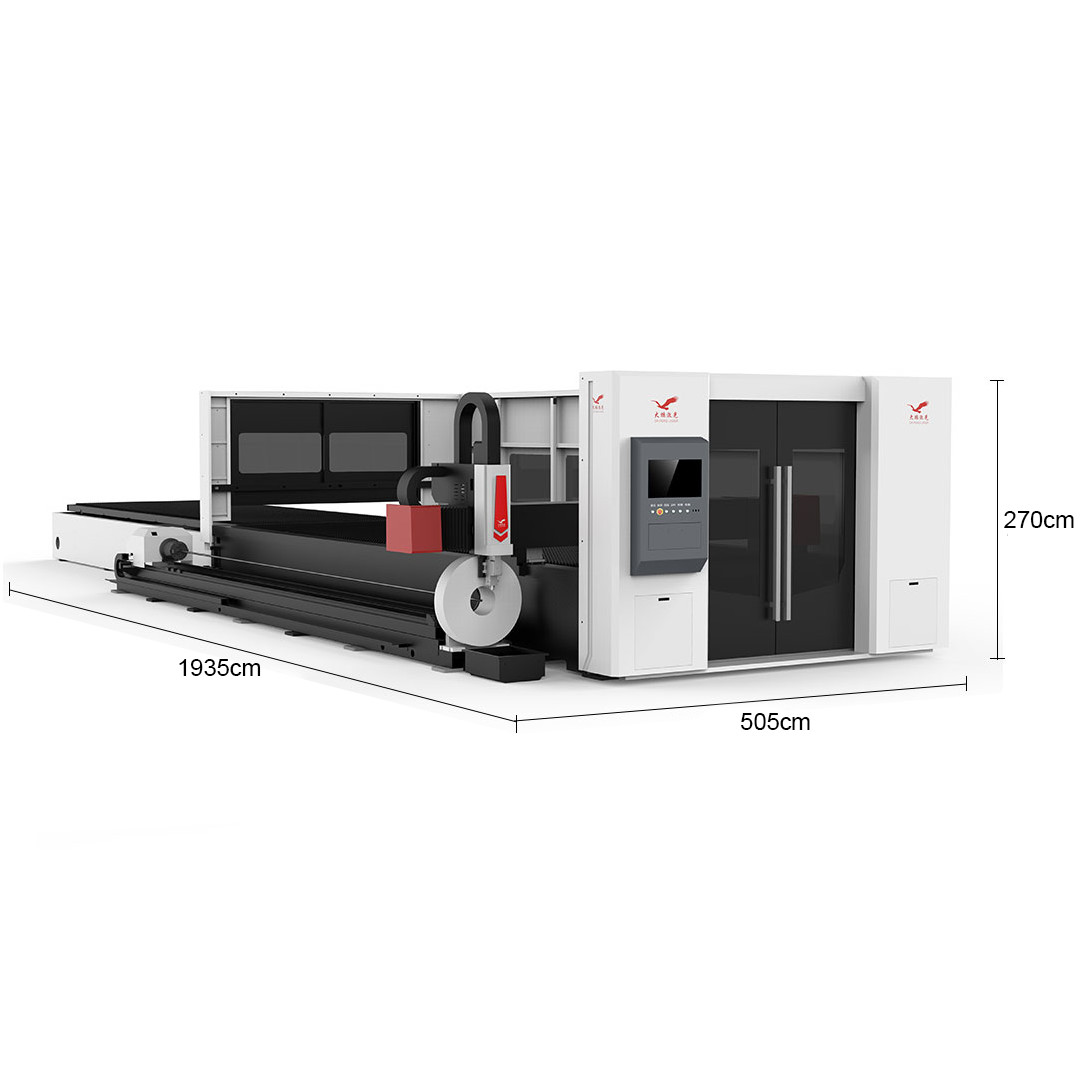

Sheet And Integration Tube Laser Cutter Machine 8025 1000W-20000W 0



Features of our Laser Cutting Machines
1. Integrated casting machine body with higher stability for higher precision.
Application of gantry structure and integrated cast cross-girder to achieve higher rigidity, stability, shock resistance.
2. High-performance laser source and stable operating system which make the best cutting effect.
3. The machine owns perfect cooling system, lubrication system and dust removal system, to ensure that it can operate stably, efficiently and durably.
4. The machine is capable of automatic height adjustment to maintain constant focal length and stable cutting quality.
5. The machine is used for cutting a variety of metals with excellent and stable cutting quality.
6. The specialized CAD / CAM automatic programming software and automatic nesting software aim to maximally save raw materials.
7. Access to the CNC system through Ethernet interface makes communication and remote monitoring possible during the laser cutting process. owns perfect cooling system, lubrication system and dust removal syst.

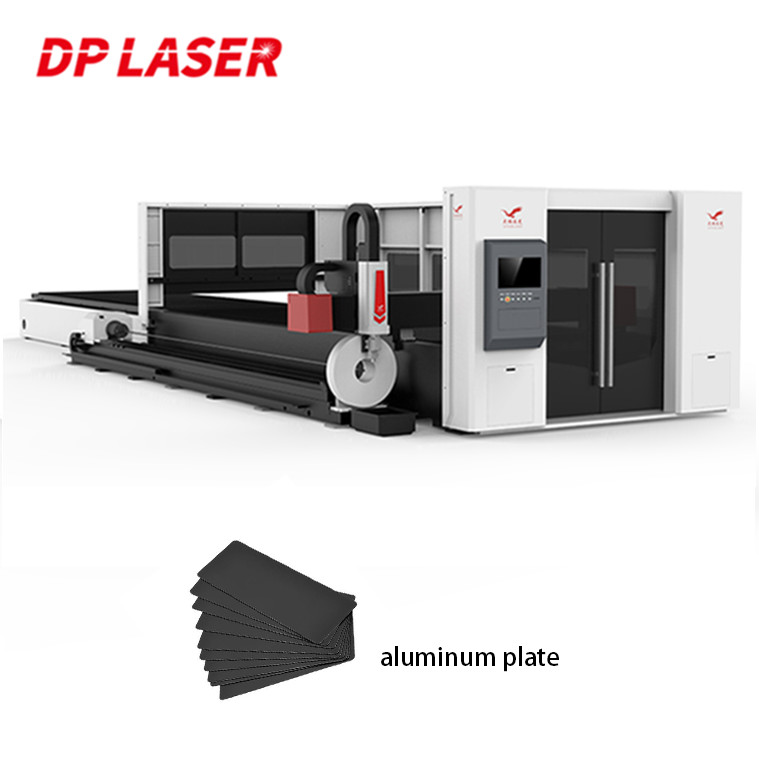

Sheet And Integration Tube Laser Cutter Machine 8025 1000W-20000W 1

Cutting Sheet Metal Parameters
Working Area 2500*1300 3000*1500 4000*1500 4000*2000 6000*1500
X/Y Axis Positioning Accuracy ±0.03mm ±0.03mm ±0.03mm ±0.03mm ±0.03mm
X/Y Axis Repositioning Accuracy ±0.02mm ±0.02mm ±0.02mm ±0.02mm ±0.02mm
Max. Moving Speed 150m/min 150m/min 150m/min 150m/min 150m/min
Max.Acc Speec 1.5G 1.5G 1.5G 1.5G 1.5G
Laser Power 1000W-1500W 1000W-6000W 1500W-6000W 1500W-6000W 1500W-6000W
Laser Source RAYCUS IPG nLIGHT MAX (Optional)
Laser Cutting Head PRECITEC RAYTOOL WSX OSPRI (Optional)

Working Area 6000*2000 6000*2500 8000*2500 10000*2500 12000*2500
X/Y Axis Positioning Accuracy ±0.03mm ±0.03mm ±0.03mm ±0.03mm ±0.03mm
X/Y Axis Repositioning Accuracy ±0.02mm ±0.02mm ±0.02mm ±0.02mm ±0.02mm
Max. Moving Speed 300m/min 300m/min 300m/min 300m/min 300m/min
Max.Acc Speec 5.0G 5.0G 5.0G 5.0G 5.0G
Laser Power 3000W-12000W 3000W-20000W 6000W-20000W 6000W-20000W 6000W-20000W
Laser Source RAYCUS IPG nLIGHT MAX (Optional)
Laser Cutting Head PRECITEC RAYTOOL WSX OSPRI (Optional)
Cutting Metal Tube Parameters
Model 6012 6016 6022 6032 6035 6040 6052
Outer Diameter Φ430 Φ590 Φ600 Φ760 Φ844 Φ950 Φ1140
Through Hole Diameter Φ130 Φ170 Φ225 Φ325 Φ365 Φ400 Φ520
Processing Range 10-120 10-160 15-218 15-320 20-350 20-400 20-508
Repositioning Accuracy ≤0.05 ≤0.05 ≤0.05 ≤0.05 ≤0.05 ≤0.10 ≤0.10
Rotation Accuracy ≤0.05 ≤0.05 ≤0.05 ≤0.05 ≤0.05 ≤0.10 ≤0.10
Minimum Clamping Wall Thickness ≥1 ≥1 ≥1 ≥1 ≥2 ≥3 ≥5
Rated Speed 150rmp 100rmp 150rmp 100rmp 50rmp 50rmp 50rmp

The metal laser cutting machine adopts a reinforced welding bed, which undergoes tempering treatment and vibration aging treatment to eliminate stress, and then performs fine milling processing on a large-scale gantry milling machine to ensure long-term stability and no deformation of the machine tool. It is equipped with high-performance original packaged fiber lasers with stable performance. , The service life can reach 100,000 hours. It adopts imported guide drive and servo motor, and can use auxiliary gas (oxygen, argon, nitrogen) to cut various metal sheets, easy to operate, high precision, high speed and high efficiency.
