Trolley Case Raycus 200w Laser Cleaning Machine Portable Rust Removal Cleaner

Place of Origin China
Brand Name DP LASER
Certification CE SGS FDA TUV ROHS
Model Number Laser Cleaning Machine
Minimum Order Quantity 1 Set
Price Please contact us
Packaging Details Wooden boxes that meet international export standards
Delivery Time 7-15 Work Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 300 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Laser Source Raycus Laser Power 200W
Power Supply 110V/220V 50HZ Application Metal Stainless Steel Cleaning
Laser Type Fiber Laser Feature NON-TOUCH CLEANING
Key Selling Points Easy To Operate Product Name Trolley Case Laser Cleaning Machine
Weight (KG) 30 KG After-sales Service Provided Overseas Engineers Provide Door-to-door Service
High Light

Trolley 200w laser cleaning machine

,

Raycus 200w laser cleaning machine

,

Trolley 200w laser rust removal

Leave a Message
Product Description

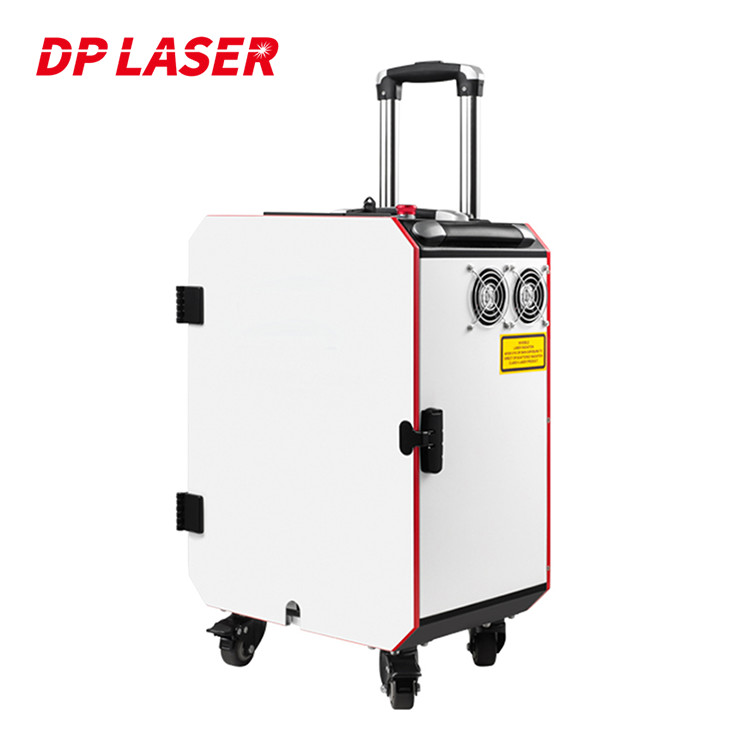

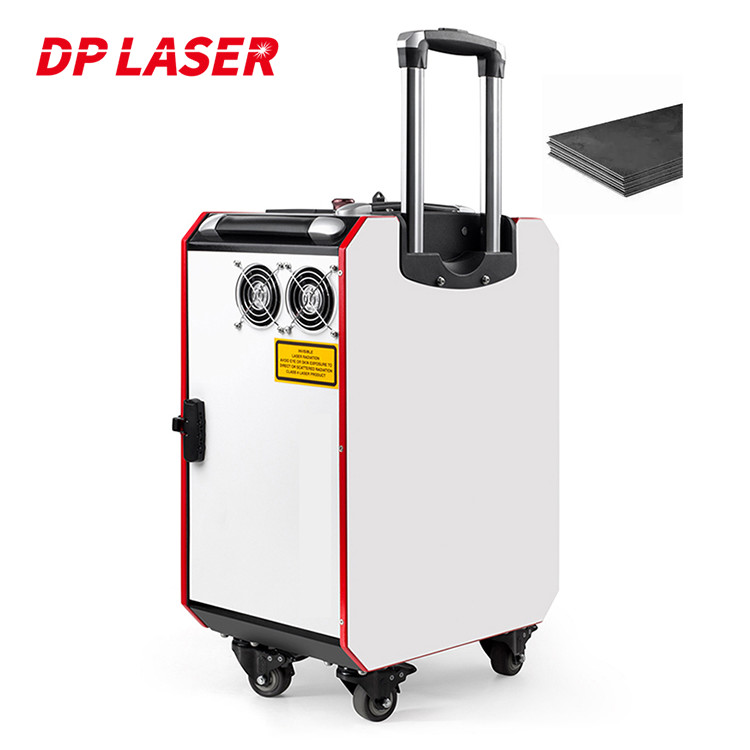

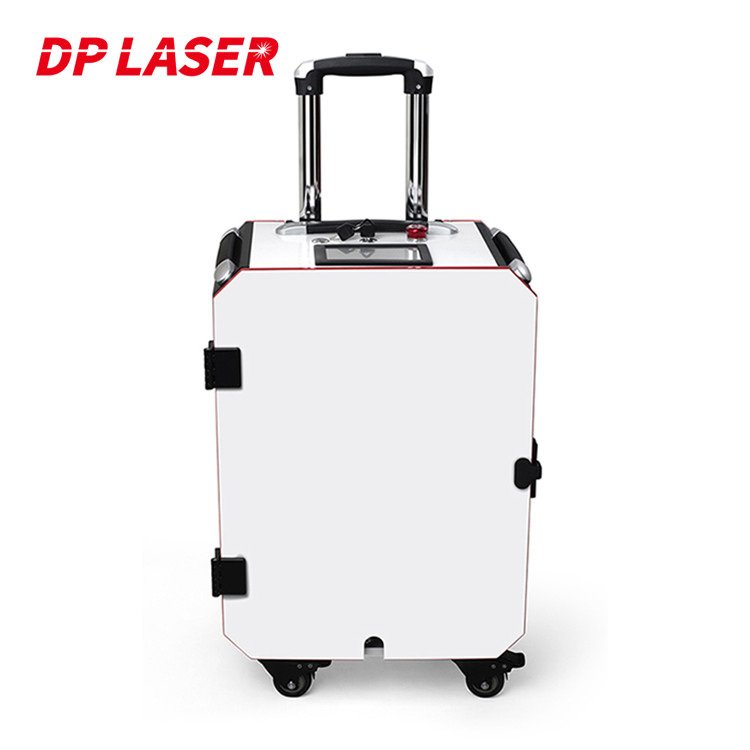

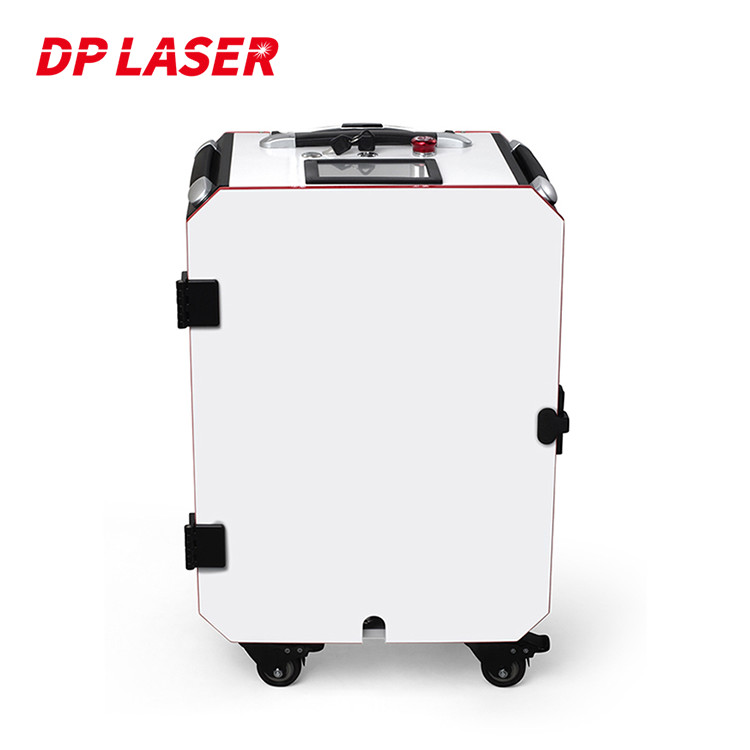

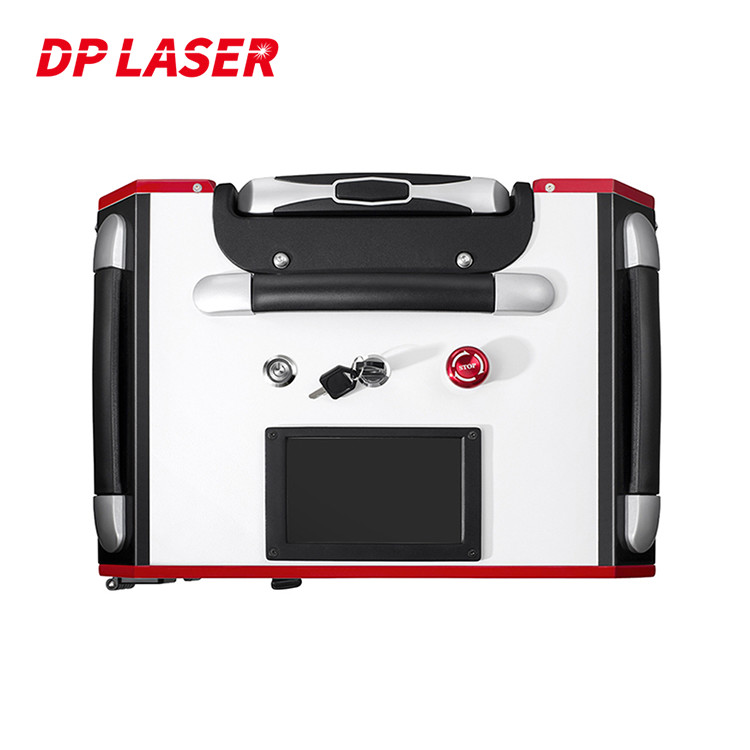

Trolley Case Handheld 200W Fiber Laser Cleaning Machine Portable Laser Rust Removal Cleaner



Basic introduction

Laser cleaning has the characteristics of no grinding, non-contact, no thermal effect and suitable for objects of various materials, and is considered to be the most reliable and effective solution. At the same time, laser cleaning can solve problems that cannot be solved by traditional cleaning methods.


Features

1.Non-contact cleaning, no damage to the workpiece substrate,no pollution



2.Precise size selective cleaning



3.No chemical reagents required, no other consumables except to protect the lens, safe and environmentally friendly



4.The system is stable and basically maintenance-free operation



5.Simple operation, automatic operation can be realized by hand or with a manipulator



6.High cleaning efficiency and high stability



Applicable Material

Stainless Steel, Carbon steel, Aluminum, Wood, Stone, Metal, Rubber



Application industry

This model has a wide range of applications and is highly targeted. It is suitable for derusting, peeling paint or removing wrapping layer of metal molds, pretreatment before parts coating, cleaning of aviation parts, restoration and protection of historical relics, etc.
Trolley Case Raycus 200w Laser Cleaning Machine Portable Rust Removal Cleaner 0

Cleaning Performance Parameters
Based material Surface Effective focal length Standard cleaning efficiency High cleaning efficiency Result
Cast iron Heavy rust 0.08mm >35mm 2000mm/m 3000mm/m Clean, no harm for base material
Mild steel Middle rust 0.5mm >45mm 1800mm/m 2400mm/m Clean, no harm for base material
Stainless steel Oil, light rust >50mm 2000mm/m 3000mm/m Clean, no harm for base material
Mould gear Middle oil with scrap iron >45mm 2000mm/m 2300mm/m Clean, no harm for base material
Aluminum oxide >35mm 2000mm/m 2300mm/m Clean, no harm for base material

Trolley Case Raycus 200w Laser Cleaning Machine Portable Rust Removal Cleaner 1

Laser Power 100W 200W
Laser Source Raycus Raycus
Fiber Length 3m 3/5m
Cooling Type Air Cooling Air Cooling
Input Power 220V 220V
Power <500W <1300W
Dimensions 575*408*270mm 685*538*411mm
Total Weight 30KG 65KG
Scan Head Weight 2KG 2KG

Trolley Case Raycus 200w Laser Cleaning Machine Portable Rust Removal Cleaner 2Trolley Case Raycus 200w Laser Cleaning Machine Portable Rust Removal Cleaner 3

DP Laser cleaning machine has advanced technology, with humanized design, small size, flexible operation, low energy consumption, environmental protection and other characteristics, with certain practicability and operability. Customers can preset the cleaning mode through the software, and can directly switch the mode to operate without adjusting the parameters, and start cleaning without chemical reagents, media, dust and water. Through automatic focusing, cleaning the surface of the object, and removing resin, stains, corrosion, coatings, paints, etc. on the surface of the object, the cleanliness is high.

Trolley Case Raycus 200w Laser Cleaning Machine Portable Rust Removal Cleaner 4

Trolley Case Raycus 200w Laser Cleaning Machine Portable Rust Removal Cleaner 5

Trolley Case Raycus 200w Laser Cleaning Machine Portable Rust Removal Cleaner 6

Trolley Case Raycus 200w Laser Cleaning Machine Portable Rust Removal Cleaner 7
