Precision Fiber Laser Cutting Head Precitec FineCutter Burr-Free 1.4 KG

  • Precision Fiber Laser Cutting Head Precitec FineCutter Burr-Free 1.4 KG
  • Precision Fiber Laser Cutting Head Precitec FineCutter Burr-Free 1.4 KG
Place of Origin China
Brand Name DP LASER
Certification CE SGS FDA TUV ROHS
Model Number Laser Cutting Head
Minimum Order Quantity 1 Set
Price Please contact us
Packaging Details Wooden boxes that meet international export standards
Delivery Time 7-15 Work Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 300 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brand Name DP LASER Brand Precitec
Laser Type Fiber Laser Function Metal Material Cutting
Feature High Efficiency Condition New
Warranty 1 Year Spare Parts Type Laser Cutting Head
Weight (KG) 1.4 KG After-sales Service Overseas Engineers Provide Door-to-door Service
High Light

Precision Laser Cutting Head 1.4KG

,

Laser Cutting Head Burr-Free
Leave a Message
Product Description

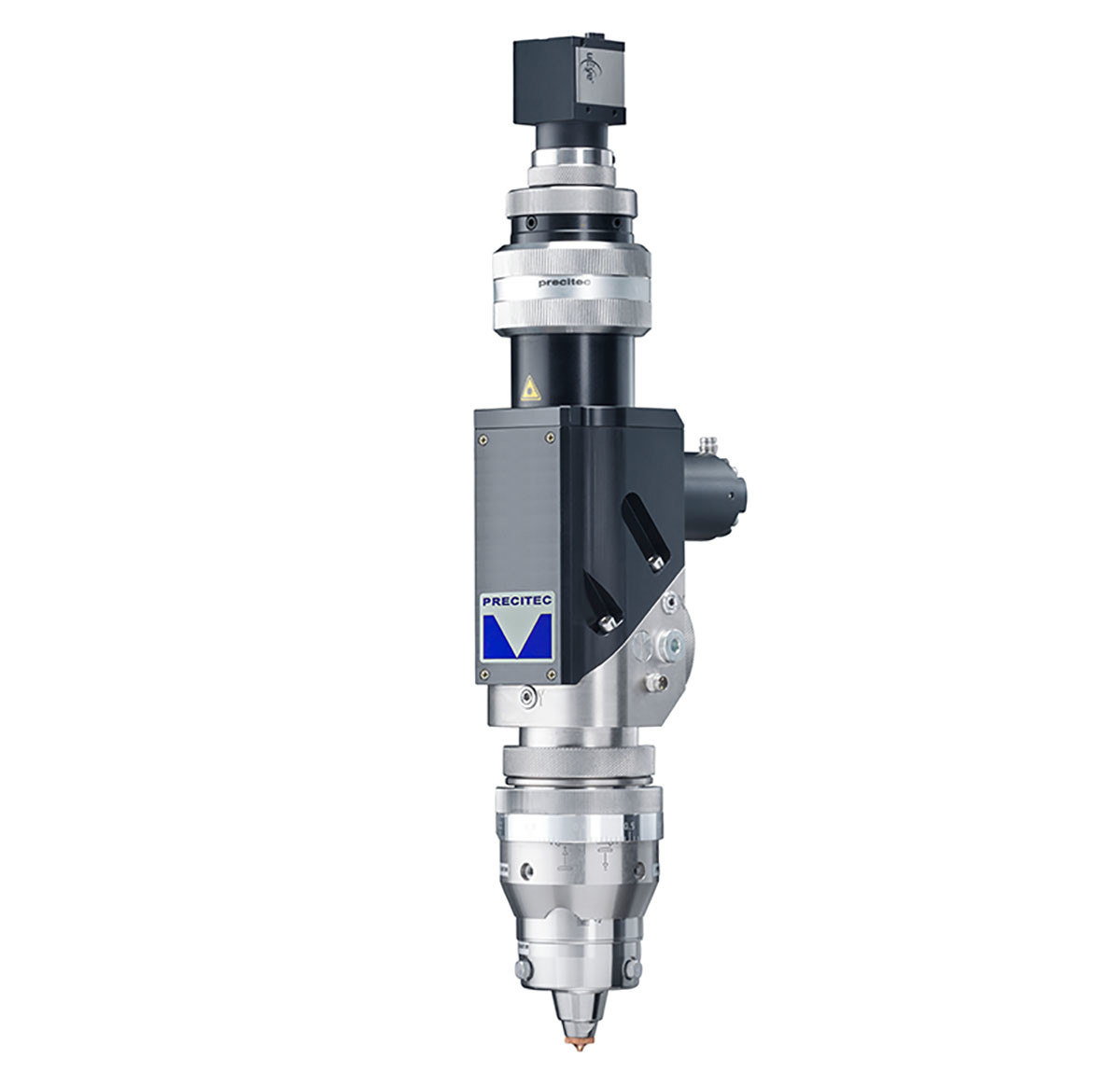

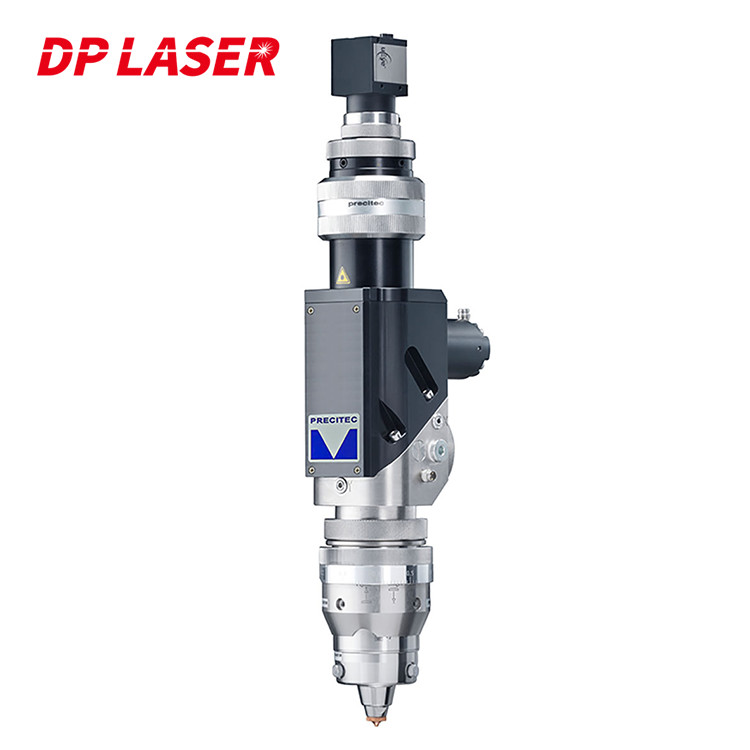

Precitec FineCutter Burr-Free Precision Fiber Laser Cutting Head



Basic introduction

The FineCutter offers you a versatile solution for the wide range of applications (e.g.: Micromachining) of laser cutting in precision machining. It is specially designed for the use of solid-state lasers with highly brilliant and pulsed beam sources. This enables you to achieve the finest contours and smooth, burr-free cut surfaces, both in 2D laser cutting systems and in robot applications. Thanks to the integrated camera, setup is completed in the shortest possible time and you always have a good view of the cutting process.

Features

High imaging quality:
With a high imaging quality of the optics, ever smaller parts, and more complex geometries with the smallest cutting gap widths are produced in the μ range.



Procesing of different materials:
As a very compact solution for flatbed systems, the FineCutter also processes different materials such as brass, silver, or platinum in the thin sheet metal sector. Prototypes and small series are produced quickly and with high precision, without long set-up times.



Proven sensor technology:
The basis for permanently clean cut edges and perfect gap widths is provided by the proven sensor technology for a constant distance between component and optics.

Application industry
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Precision Fiber Laser Cutting Head Precitec FineCutter Burr-Free 1.4 KG 0Precision Fiber Laser Cutting Head Precitec FineCutter Burr-Free 1.4 KG 1
Precision Fiber Laser Cutting Head Precitec FineCutter Burr-Free 1.4 KG 2

FineCutter

Burr-free Laser Fine Cutting

Precision Fiber Laser Cutting Head Precitec FineCutter Burr-Free 1.4 KG 3



Technical data

Max laser power 500W
Wave length 1,064 nm
Focal lengths 50, 80, 125 mm
max. free aperture 16 mm
Vertical adjustment +0.5 / -2.5 mm



Precision Fiber Laser Cutting Head Precitec FineCutter Burr-Free 1.4 KG 4

Precision Fiber Laser Cutting Head Precitec FineCutter Burr-Free 1.4 KG 5

Precision Fiber Laser Cutting Head Precitec FineCutter Burr-Free 1.4 KG 6

Precision Fiber Laser Cutting Head Precitec FineCutter Burr-Free 1.4 KG 7Precision Fiber Laser Cutting Head Precitec FineCutter Burr-Free 1.4 KG 8Precision Fiber Laser Cutting Head Precitec FineCutter Burr-Free 1.4 KG 9
