ECO 6KW 25MM Fiber Laser Head For Cnc Machine Precitec LightCutter

Place of Origin China
Brand Name DP LASER
Certification CE SGS FDA TUV ROHS
Model Number Laser Cutting Head
Minimum Order Quantity 1 Set
Price Please contact us
Packaging Details Wooden boxes that meet international export standards
Delivery Time 7-15 Work Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 300 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brand Precitec Laser Power 6KW
Condition New Laser Type Fiber Laser
Feature High Efficiency Warranty 1 Year
Machinery Test Report Provided Video Outgoing-inspection Provided
Weight (KG) 4 KG After-sales Service Overseas Engineers Provide Door-to-door Service
High Light

6KW laser head for cnc machine

,

25MM fiber laser head

,

6KW fiber laser head

Leave a Message
Product Description

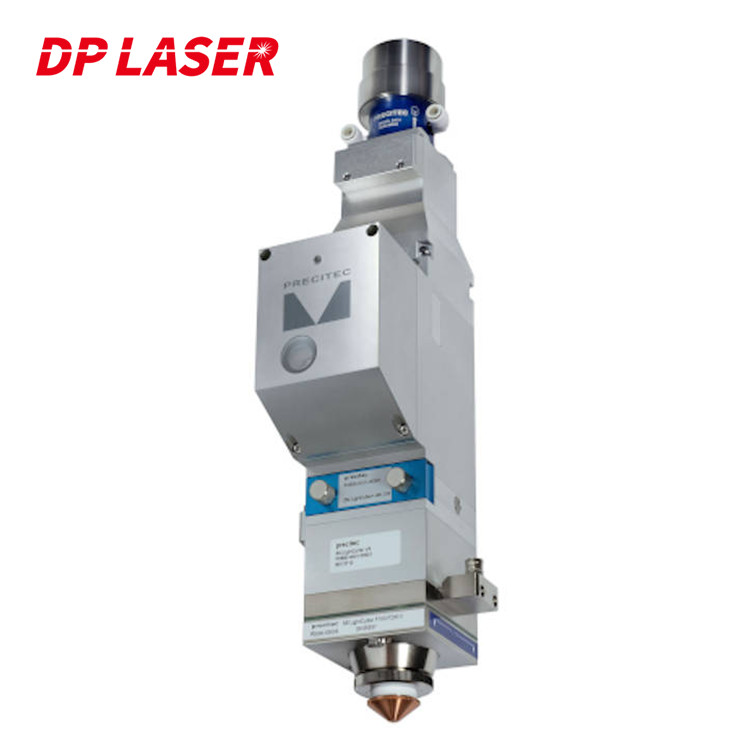

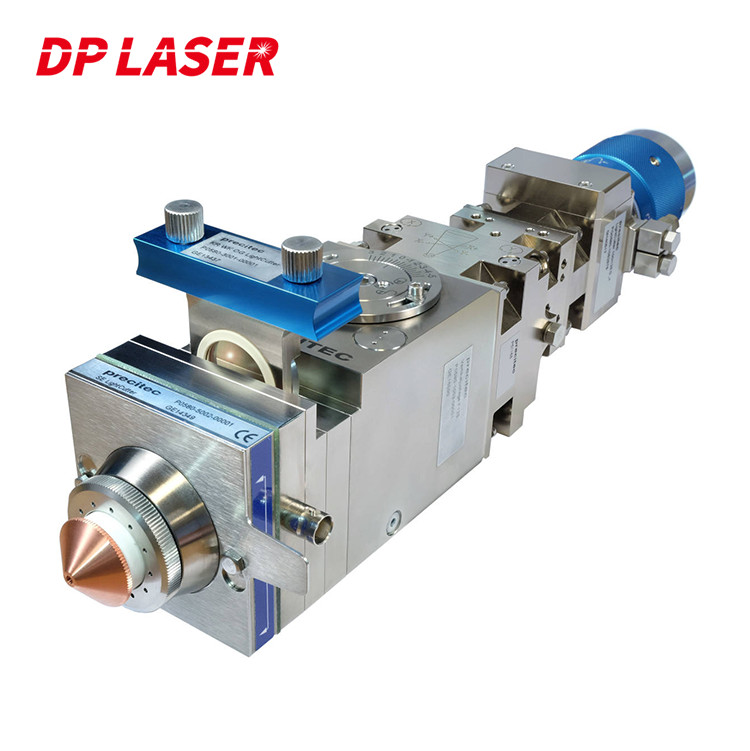

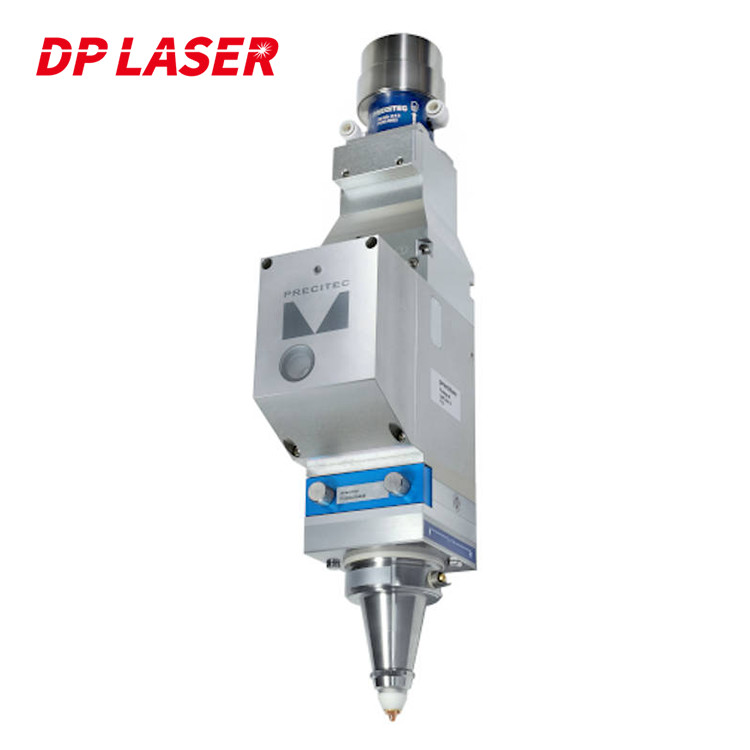

Precitec LightCutter ECO 6KW 25MM Fiber Laser Cutting Machine Head



Basic introduction

Laser cutting head is a new technology that has been applied to various industries, including metal cutting, glass cutting and engraving, etc.


Features

1.Flexible material thickness processing through a high degree of automation

The LightCutter 2.0 offers outstanding cutting and product quality without compromise: optimized for continuous permanent operation, it scores points with high cutting speeds and smooth, rectangular edges with minimal burr. It has a very robust design, is lightweight and convinces even after long cutting cycles. No other head generates comparable stable results in this class.



With frequent material changes, the motorized focus position adjustment leads to reduced intervention times for the machine operator. Different thicknesses and materials can be cut very flexibly. Thanks to this automated adjustment, the cutting head always works with high precision and stability, even at high accelerations of up to 3 g. It is also the best in class in all other performance features. The display of the set focus position on the front panel makes commissioning much easier.



2.Failsafe & modular
The LightCutter 2.0 is designed for high laser power. It is completely dust-tight, which guarantees a continuous, clean operation. The basis for clean cut edges is provided by the ultra-stable and drift-free sensor technology for a constant distance between component and optics.



Complex cutting contours are approached quickly and precisely with the LightCutter 2.0 3D. The slim design in the front area allows contact-free immersion in areas that are very difficult to access.



Application industry
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
ECO 6KW 25MM Fiber Laser Head For Cnc Machine Precitec LightCutter 0ECO 6KW 25MM Fiber Laser Head For Cnc Machine Precitec LightCutter 1
ECO 6KW 25MM Fiber Laser Head For Cnc Machine Precitec LightCutter 2

LightCutter 2.0

Laser Cutting Up To 6KW



LightCutter

The LightCutter 2.0 is the ideal solution for all laser cutting applications in the medium power range up to 6 kW. Whether 2D, 2.5D or 3D - thanks to its wide range of variants you will always find the most efficient and economical configuration. It is characterized by high cutting qualities for all metals up to 25 mm sheet thickness - especially for laser cutting of mild steel, stainless steel, and aluminum.

ECO 6KW 25MM Fiber Laser Head For Cnc Machine Precitec LightCutter 3

ECO 6KW 25MM Fiber Laser Head For Cnc Machine Precitec LightCutter 4

ECO 6KW 25MM Fiber Laser Head For Cnc Machine Precitec LightCutter 5

ECO 6KW 25MM Fiber Laser Head For Cnc Machine Precitec LightCutter 6

ECO 6KW 25MM Fiber Laser Head For Cnc Machine Precitec LightCutter 7



Technical data

Max. laser power 6 kW (2D version only)
Collimating focal length 100 mm, Focus lengths: 125, 150, 200 mm
Dimensions (WXD) 130 x 69 mm
Weight 4.0 kg



ECO 6KW 25MM Fiber Laser Head For Cnc Machine Precitec LightCutter 8

ECO 6KW 25MM Fiber Laser Head For Cnc Machine Precitec LightCutter 9

ECO 6KW 25MM Fiber Laser Head For Cnc Machine Precitec LightCutter 10

ECO 6KW 25MM Fiber Laser Head For Cnc Machine Precitec LightCutter 11ECO 6KW 25MM Fiber Laser Head For Cnc Machine Precitec LightCutter 12ECO 6KW 25MM Fiber Laser Head For Cnc Machine Precitec LightCutter 13
