Manual Focus Laser Cutter Head For Cnc WSX SW20A 3D 10 KG

  • Manual Focus Laser Cutter Head For Cnc WSX SW20A 3D 10 KG
  • Manual Focus Laser Cutter Head For Cnc WSX SW20A 3D 10 KG
Place of Origin China
Brand Name DP LASER
Certification CE SGS FDA TUV ROHS
Model Number Laser Cutting Head
Minimum Order Quantity 1 Set
Price Please contact us
Packaging Details Wooden boxes that meet international export standards
Delivery Time 7-15 Work Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 300 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brand WSX Laser Type Fiber Laser
Spare Parts Type Laser Cutting Head Condition New
Function Metal Material Cutting Feature High Efficiency
Control System Wooden Case Key Selling Points Competitive Price
Weight (KG) 10 KG After-sales Service Overseas Engineers Provide Door-to-door Service
High Light

SW20A laser cutter head for cnc

,

WSX laser cutter head for cnc

,

WSX laser cutter head
Leave a Message
Product Description

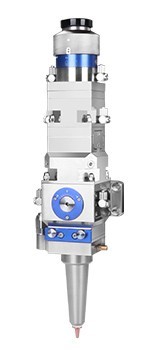

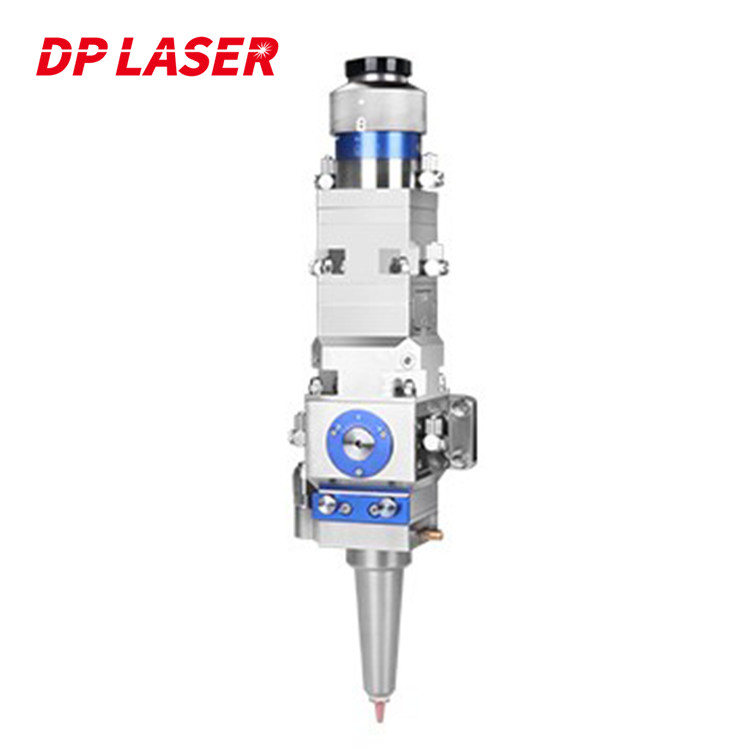

WSX SW20A 3D Manual Focus CNC Fiber Laser Cutting Head



Basic introduction

Laser cutting head is a new technology that has been applied to various industries, including metal cutting, glass cutting and engraving, etc.


Features

1.This cutting head has a strong advantage in the application of medium power large format fiber laser cutting.



2.The internal structure of the laser head is completely sealed to avoid dust contamination on the optical part.



3.This laser head adopts two-point alignment, and the focusing is adjusted by cam structure accurately and conveniently.



4.The protective window is installed in cartridge, and is convenient to replace.



5.Can be equipped with various kinds of laser source with QBH connector.



Application industry
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Manual Focus Laser Cutter Head For Cnc WSX SW20A 3D 10 KG 0Manual Focus Laser Cutter Head For Cnc WSX SW20A 3D 10 KG 1
Manual Focus Laser Cutter Head For Cnc WSX SW20A 3D 10 KG 2

SW20A

Manual Focus Laser Cutter Head For Cnc WSX SW20A 3D 10 KG 3



Technical data

Maximum air pressure 25Bar
Collimated focal length 75mm/100mm
Focus focal length 125mm/150mm
Horizontal adjustment range -1.5mm-+1.5mm
Vertical focus range -4mm-+4mm
Applicable power ≤2000W
Effective clear aperture 25mm
Weight 2.1KG



Manual Focus Laser Cutter Head For Cnc WSX SW20A 3D 10 KG 4

Manual Focus Laser Cutter Head For Cnc WSX SW20A 3D 10 KG 5

Manual Focus Laser Cutter Head For Cnc WSX SW20A 3D 10 KG 6

Manual Focus Laser Cutter Head For Cnc WSX SW20A 3D 10 KG 7Manual Focus Laser Cutter Head For Cnc WSX SW20A 3D 10 KG 8Manual Focus Laser Cutter Head For Cnc WSX SW20A 3D 10 KG 9
