WSX NC62A High Power Laser Cutting Head QBH Automatic Focus

Place of Origin China
Brand Name DP LASER
Certification CE SGS FDA TUV ROHS
Model Number Laser Cutting Head
Minimum Order Quantity 1 Set
Price Please contact us
Packaging Details Wooden boxes that meet international export standards
Delivery Time 7-15 Work Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 300 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brand WSX Laser Type Fiber Laser
Application Metals Cutting Keywords Laser Cutting Spare Parts
Feature High Efficiency Condition New
Control System Wooden Case Used For Fiber Laser Cutting Machine
Weight (KG) 10 KG After-sales Service Overseas Engineers Provide Door-to-door Service
High Light

WSX NC62A Laser Cutting Head

,

Laser Cutting Head QBH

,

QBH wsx laser cutting head

Leave a Message
Product Description

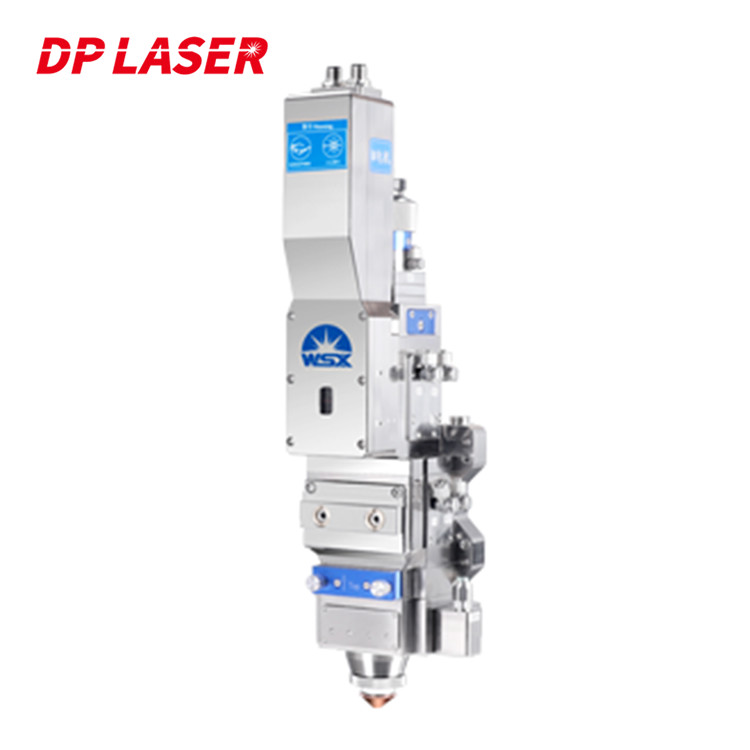

WSX NC62A High Power QBH Automatic Focus Fiber Laser Cutting Head



Basic introduction

Laser cutting head is a new technology that has been applied to various industries, including metal cutting, glass cutting and engraving, etc.



Application industry
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
WSX NC62A High Power Laser Cutting Head QBH Automatic Focus 0WSX NC62A High Power Laser Cutting Head QBH Automatic Focus 1
WSX NC62A High Power Laser Cutting Head QBH Automatic Focus 2

NC62A

WSX NC62A High Power Laser Cutting Head QBH Automatic Focus 3

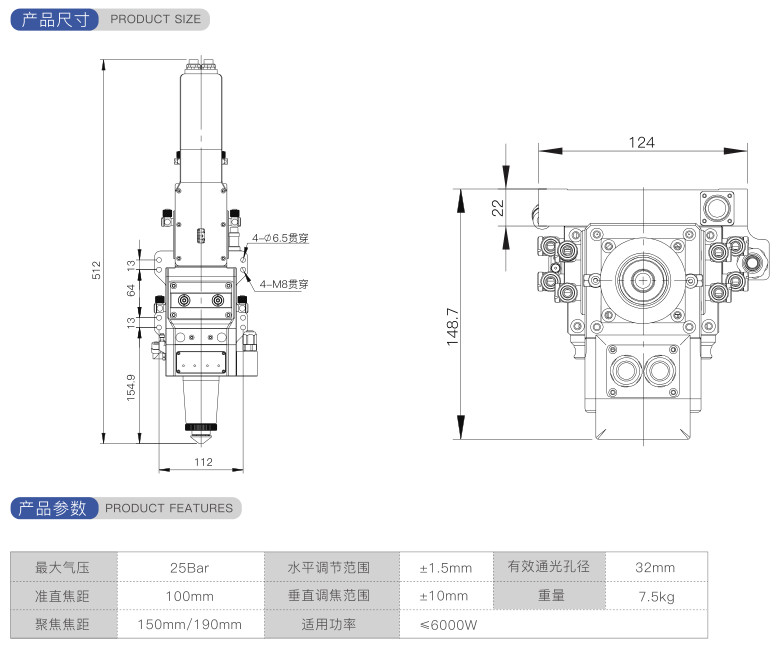

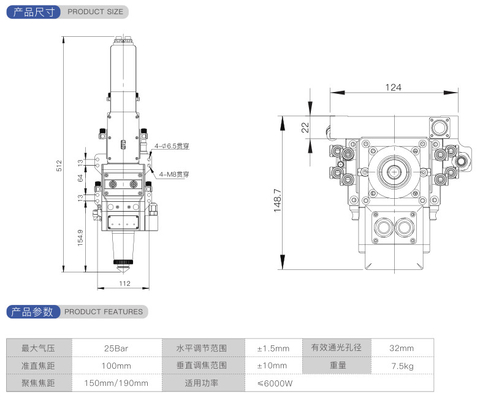

Technical data

Maximum air pressure 25Bar
Collimated focal length 100mm
Focus focal length 150mm/190mm
Horizontal adjustment range -1.5mm-+1.5mm
Vertical focus range -10mm-+10mm
Applicable power ≤6000W
Effective clear aperture 32mm
Weight 7.5KG



WSX NC62A High Power Laser Cutting Head QBH Automatic Focus 4

WSX NC62A High Power Laser Cutting Head QBH Automatic Focus 5

WSX NC62A High Power Laser Cutting Head QBH Automatic Focus 6

WSX NC62A High Power Laser Cutting Head QBH Automatic Focus 7WSX NC62A High Power Laser Cutting Head QBH Automatic Focus 8WSX NC62A High Power Laser Cutting Head QBH Automatic Focus 9
