Precitec ProCutter 2.0 30KW Laser Head For Metal Cutting High Power APP Control

Place of Origin China
Brand Name DP LASER
Certification CE SGS FDA TUV ROHS
Model Number Laser Cutting Head
Minimum Order Quantity 1 Set
Price Please contact us
Packaging Details Wooden boxes that meet international export standards
Delivery Time 7-15 Work Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 300 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brand Precitec Laser Power 30KW
Laser Type Fiber Laser Feature High Efficiency
Condition New Function Metal Material Cutting
Spare Parts Type Laser Cutting Head Key Selling Points Competitive Price
Weight (KG) 4.5 KG After-sales Service Overseas Engineers Provide Door-to-door Service
High Light

Precitec laser head for metal cutting

,

30KW laser head for metal cutting

,

30KW fiber laser head

Leave a Message
Product Description

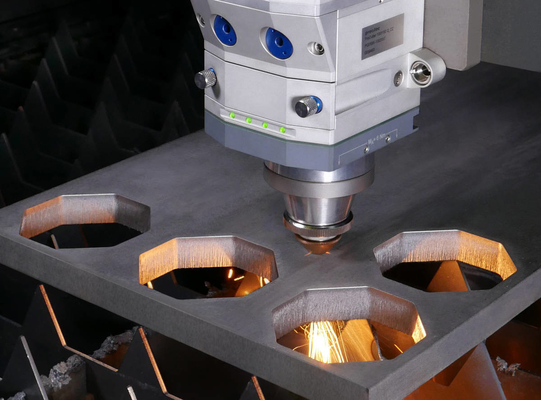

Precitec ProCutter 2.0 30KW 30000W High Power APP Control Fiber Laser Cutting Head



Basic introduction

Laser cutting head is a new technology that has been applied to various industries, including metal cutting, glass cutting and engraving, etc.The components of the cutting head of the laser cutting machine are: nozzle, focusing lens and focus tracking system.



Feature

1.Maximum productivity thanks to superior technology

With the ProCutter 2.0, cutting processes that were previously hidden away can now be used in an industrially stable manner. It is not necessary anymore to choose between high quality and high speed. Now both are possible - increased machine utilization and a shorter payback period. The amount of rework is reduced to a minimum.



With the new ProCutter 2.0 generation, the highest cutting speeds can be achieved that were previously unthinkable. The cutting head works trouble-free up to 30 kW laser power thanks to its sophisticated cooling concept and the extended travel paths. If the full laser power is not required, the cutting speed can still be increased by up to 25% compared to the predecessor product due to the optimized design.



2.Intelligent sensors at its best

Component quality and process stability remain permanently constant: fluctuations in the process or in the quality of the material to be cut are compensated without the need for intervention by the machine operator. With PierceTec - automated piercing of the material - you achieve consistent hole and surface quality and can reduce the amount of rework required. PierceTec saves cycle time and operating costs.



Smart sensors integrated into the cutting head permanently monitor the condition of critical components or cutting process parameters. The sensors also provide the basis for planned maintenance and efficient utilization of spare parts. This ensures even safer operation and reduces follow-up costs.

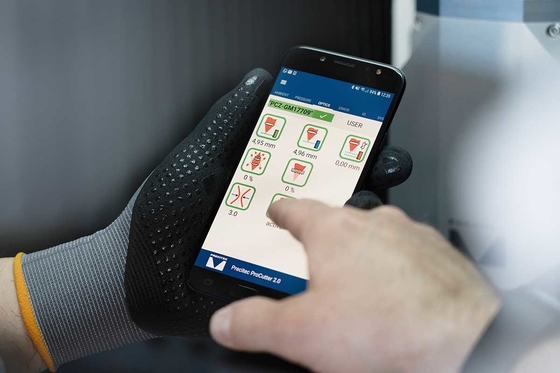

It is also possible to access the data via mobile devices and to visualize the current status in the ProCutter APP or to query error messages.



Application industry
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Precitec ProCutter 2.0 30KW Laser Head For Metal Cutting High Power APP Control 0Precitec ProCutter 2.0 30KW Laser Head For Metal Cutting High Power APP Control 1
Precitec ProCutter 2.0 30KW Laser Head For Metal Cutting High Power APP Control 2

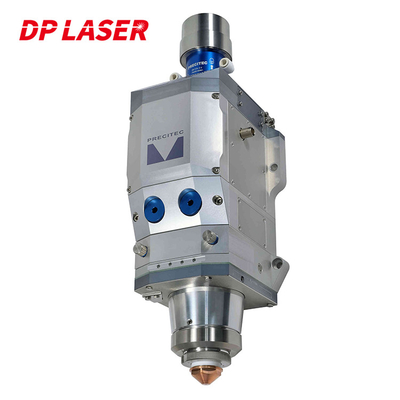

ProCutter 2.0

Laser Cutting Up To 30KW



ProCutter 2.0

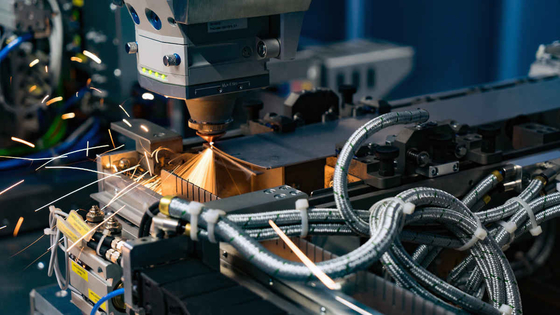

1000-times reliability in use: the ProCutter 2.0 impresses worldwide with its high performance and automation. Its reliability and load capacity in flatbed and tube cutting systems has been perfected - up to a maximum laser power of 30 kW.

Precitec ProCutter 2.0 30KW Laser Head For Metal Cutting High Power APP Control 3

Precitec ProCutter 2.0 30KW Laser Head For Metal Cutting High Power APP Control 4

Precitec ProCutter 2.0 30KW Laser Head For Metal Cutting High Power APP Control 5

Precitec ProCutter 2.0 30KW Laser Head For Metal Cutting High Power APP Control 6

Precitec ProCutter 2.0 30KW Laser Head For Metal Cutting High Power APP Control 7



Technical data



Max. laser power 30 kW (with wave lengths of 1030 - 1090 nm)
Focal length collimation 100 mm, Focus lengths: 150, 200 mm
NAmax 0.18 (for 30 kW)
Dimensions (WXD) 96 x 134 mm
Weight 4.5 kg(FF150)


Precitec ProCutter 2.0 30KW Laser Head For Metal Cutting High Power APP Control 8

Precitec ProCutter 2.0 30KW Laser Head For Metal Cutting High Power APP Control 9

Precitec ProCutter 2.0 30KW Laser Head For Metal Cutting High Power APP Control 10

Precitec ProCutter 2.0 30KW Laser Head For Metal Cutting High Power APP Control 11Precitec ProCutter 2.0 30KW Laser Head For Metal Cutting High Power APP Control 12Precitec ProCutter 2.0 30KW Laser Head For Metal Cutting High Power APP Control 13
