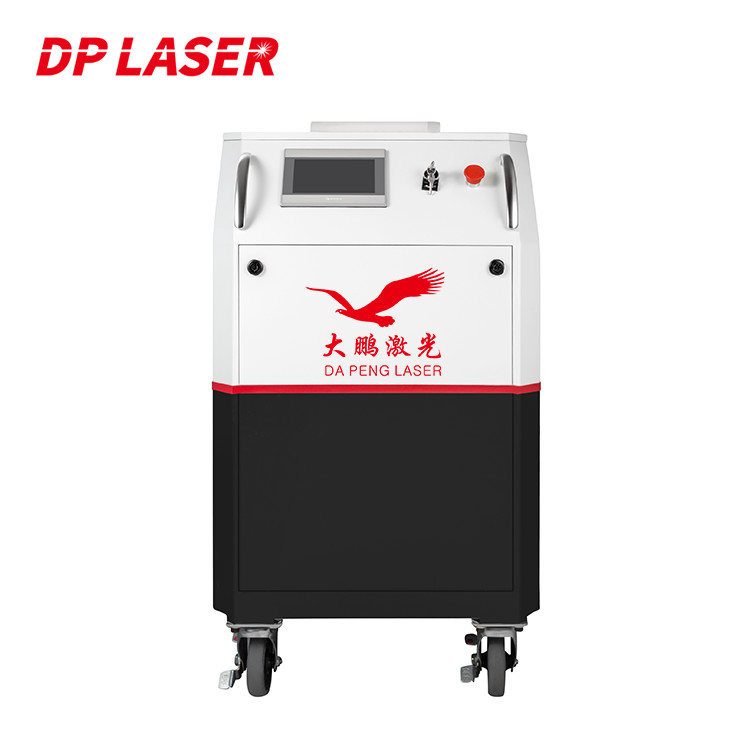

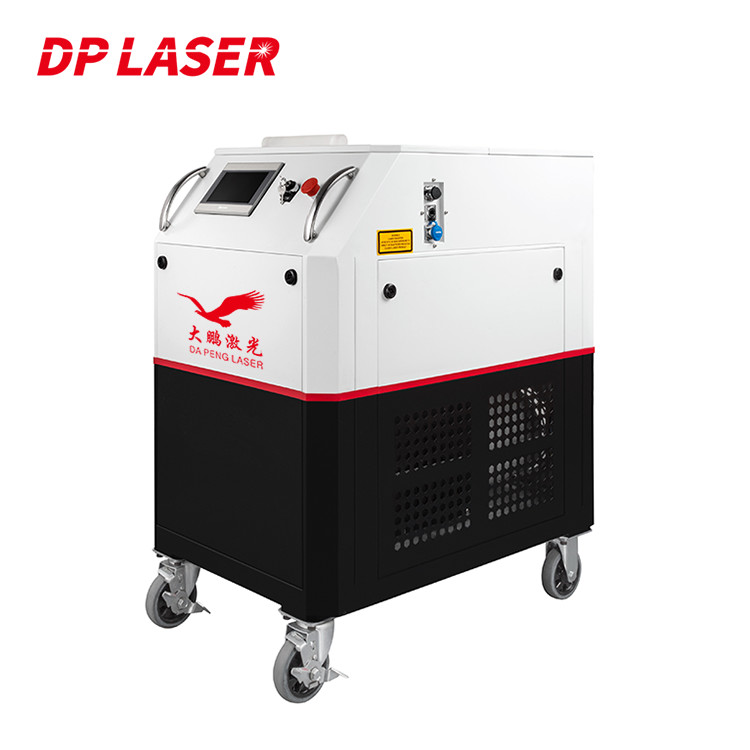

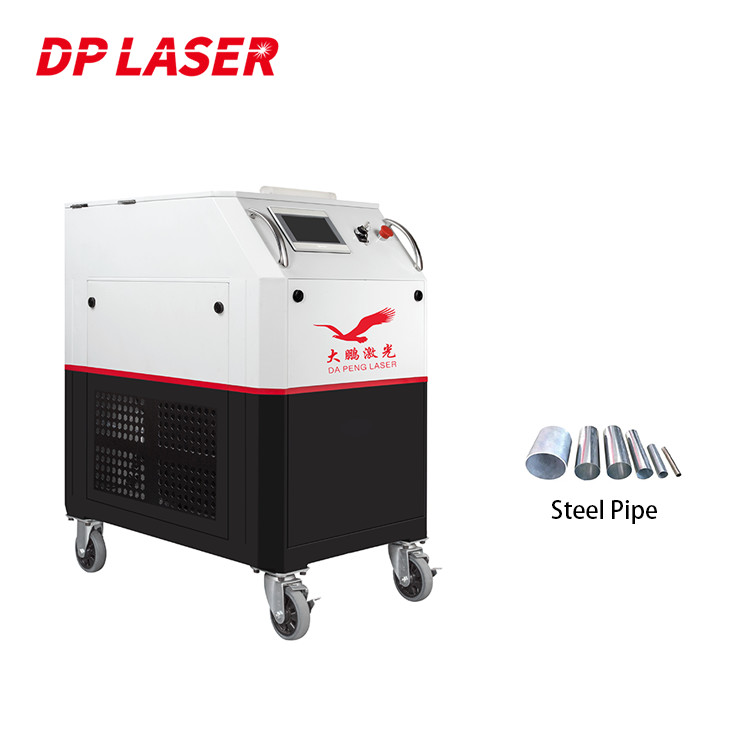

Metal Derusting And Degreasing Pulse Fiber Laser Cleaning Machine Handheld 200W 300W

Place of Origin China
Brand Name DP LASER
Certification CE SGS FDA TUV ROHS
Model Number Laser Cleaning Machine
Minimum Order Quantity 1 Set
Price Please contact us
Packaging Details Wooden boxes that meet international export standards
Delivery Time 7-15 Work Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 300 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Laser Source Raycus IPG Laser Source Laser Type Fiber Laser
Laser Power 200W 300W Optional Power Supply 220V
Function Metal Rust Surface Laser Cleaning Application Metal Stainless Steel Cleaning
Condition New Dimension(L*W*H) 642*1056*1089mm
Weight (KG) 200 KG After-sales Service Provided Overseas Engineers Provide Door-to-door Service
High Light

Fiber Laser Cleaning Machine 300W

,

Fiber Laser Cleaning Machine 200W

,

Raycus IPG 200w laser cleaning machine

Leave a Message
Product Description

200W 300W Laser Metal Derusting And Degreasing Pulse Handheld Fiber Laser Cleaning Machine



Basic introduction

Laser cleaning is a brand-new non-contact surface cleaning technology. This technology mainly acts on the surface of the workpiece by a pulsed laser beam with low power and high energy density, so that the stains, oxides or coatings on the surface are instantly evaporated, vaporized or thermally expanded , so as to achieve the effect of surface cleaning and purification. Compared with traditional methods, it has the advantages of environmental protection, no grinding and no thermal effect, and has unique advantages in cleaning precision workpieces.


Features
1. Non-contact processing, no consumables, no damage, no chemical pollution.


2. Handheld laser cleaning head, light, convenient and easy to use.


3. Right angles, corners and grooves can be cleaned.


4. Derusting, decontamination, degreasing, deoxidation.


Applicable Industries

Printing Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Hotels, Home Use, Garment Shops, Food & Beverage Shops, Construction works , Restaurant, Machinery Repair Shops, Advertising Company, Food Shop, Energy & Mining, Retail, Building Material Shops

Metal Derusting And Degreasing Pulse Fiber Laser Cleaning Machine Handheld 200W 300W 0Metal Derusting And Degreasing Pulse Fiber Laser Cleaning Machine Handheld 200W 300W 1Metal Derusting And Degreasing Pulse Fiber Laser Cleaning Machine Handheld 200W 300W 2Metal Derusting And Degreasing Pulse Fiber Laser Cleaning Machine Handheld 200W 300W 3

Laser Power 200W 300W
Laser Source Raycus/IPG Raycus/IPG
Central Wavelength 1064±5 1064±5
Power Regulation Range 10-100 10-100
Outpit Power Instability ≤5 ≤5
Output Power Instability 10-50 20-50
Pulse Length 90-130 130-140
Maximum Monopulse Energy 10 12.5
Fiber Length 5/10m 5/10m
Laser Protection Class 4 4
Cooling Type Water Cooling Water Cooling
Dimensions 642*1056*1089mm 642*1056*1089mm

Metal Derusting And Degreasing Pulse Fiber Laser Cleaning Machine Handheld 200W 300W 4Metal Derusting And Degreasing Pulse Fiber Laser Cleaning Machine Handheld 200W 300W 5Metal Derusting And Degreasing Pulse Fiber Laser Cleaning Machine Handheld 200W 300W 6

Cleaning Performance Parameters
Based material Surface Effective focal length Standard cleaning efficiency High cleaning efficiency Result
Cast iron Heavy rust 0.08mm >35mm 2000mm/m 3000mm/m Clean, no harm for base material
Mild steel Middle rust 0.5mm >45mm 1800mm/m 2400mm/m Clean, no harm for base material
Stainless steel Oil, light rust >50mm 2000mm/m 3000mm/m Clean, no harm for base material
Mould gear Middle oil with scrap iron >45mm 2000mm/m 2300mm/m Clean, no harm for base material
Aluminum oxide >35mm 2000mm/m 2300mm/m Clean, no harm for base material



DP Laser cleaning machine has advanced technology, with humanized design, small size, flexible operation, low energy consumption, environmental protection and other characteristics, with certain practicability and operability. Customers can preset the cleaning mode through the software, and can directly switch the mode to operate without adjusting the parameters, and start cleaning without chemical reagents, media, dust and water. Through automatic focusing, cleaning the surface of the object, and removing resin, stains, corrosion, coatings, paints, etc. on the surface of the object, the cleanliness is high.

Metal Derusting And Degreasing Pulse Fiber Laser Cleaning Machine Handheld 200W 300W 7

Metal Derusting And Degreasing Pulse Fiber Laser Cleaning Machine Handheld 200W 300W 8

Metal Derusting And Degreasing Pulse Fiber Laser Cleaning Machine Handheld 200W 300W 9

Metal Derusting And Degreasing Pulse Fiber Laser Cleaning Machine Handheld 200W 300W 10
