Raycus IPG Pulse Rust Removal Laser Cleaning Machine 500W 1000W Handheld
| Place of Origin | China |
|---|---|
| Brand Name | DP LASER |
| Certification | CE SGS FDA TUV ROHS |
| Model Number | Laser Cleaning Machine |
| Minimum Order Quantity | 1 Set |
| Price | Please contact us |
| Packaging Details | Wooden boxes that meet international export standards |
| Delivery Time | 7-15 Work Days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 300 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Laser Source | Raycus IPG Laser Source | Laser Power | 500W 1000W Optional |
|---|---|---|---|
| Laser Type | 220V | Condition | New |
| Application | Metal Stainless Steel Cleaning | Feature | NON-TOUCH CLEANING |
| Warranty | 2 Years | Dimension(L*W*H) | 830*1270*1520mm |
| Weight (KG) | 200 KG | After-sales Service Provided | Overseas Engineers Provide Door-to-door Service |
| High Light | Raycus IPG rust removal laser cleaning machine,rust removal laser cleaning machine,Raycus IPG laser cleaning machine 1000w |
||
Product Description

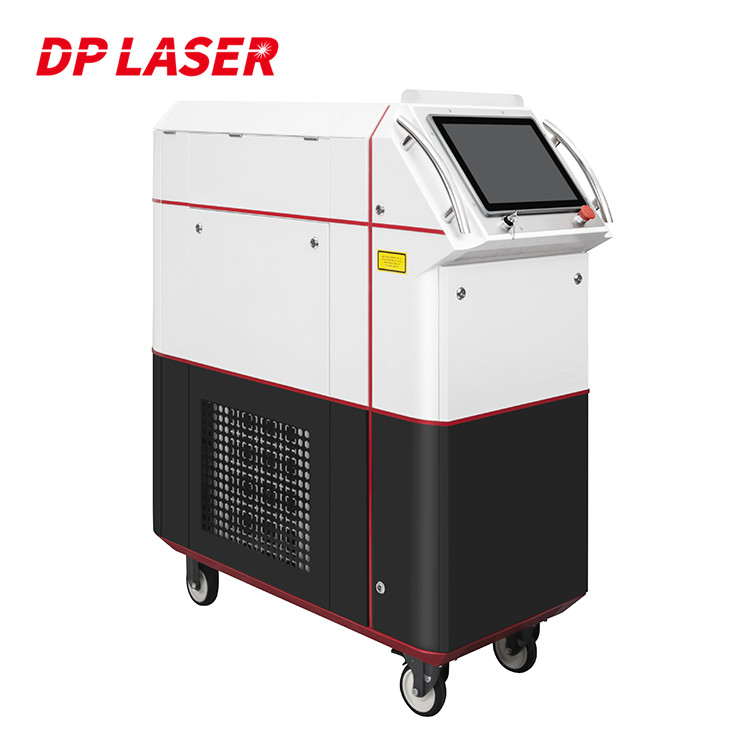

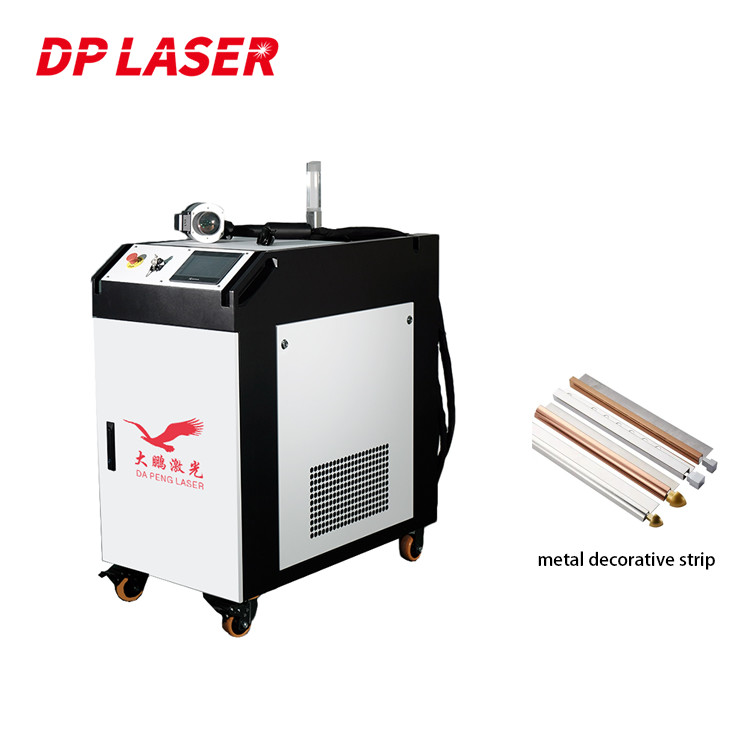

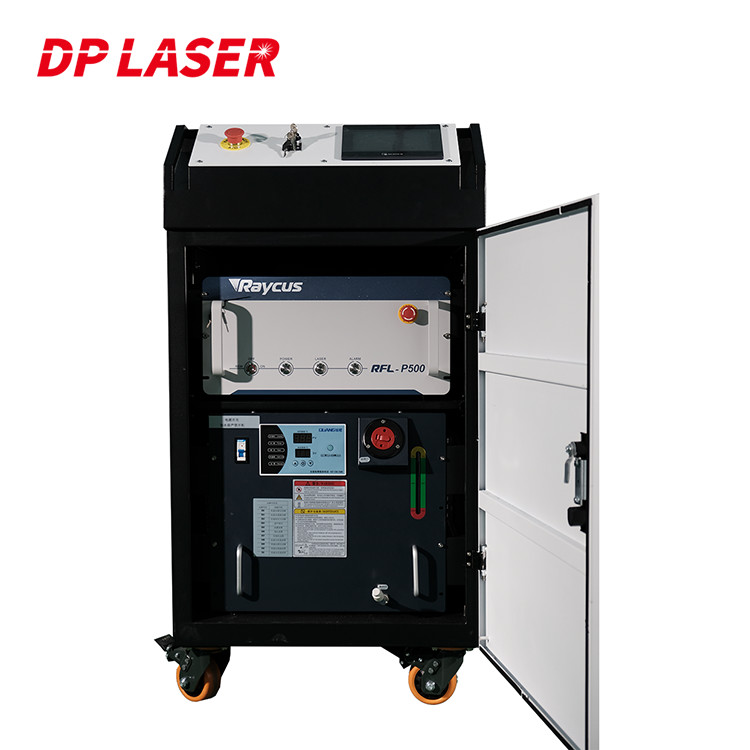

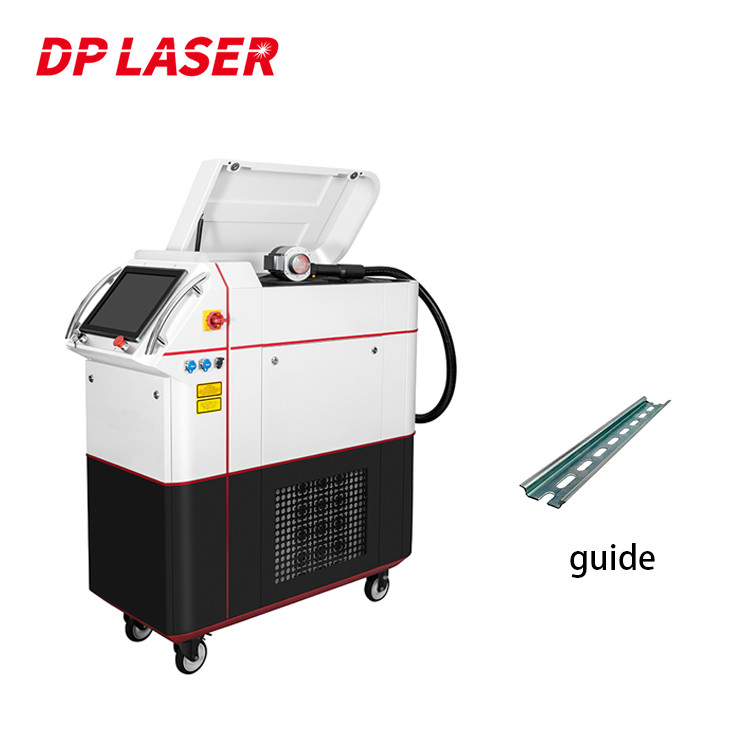

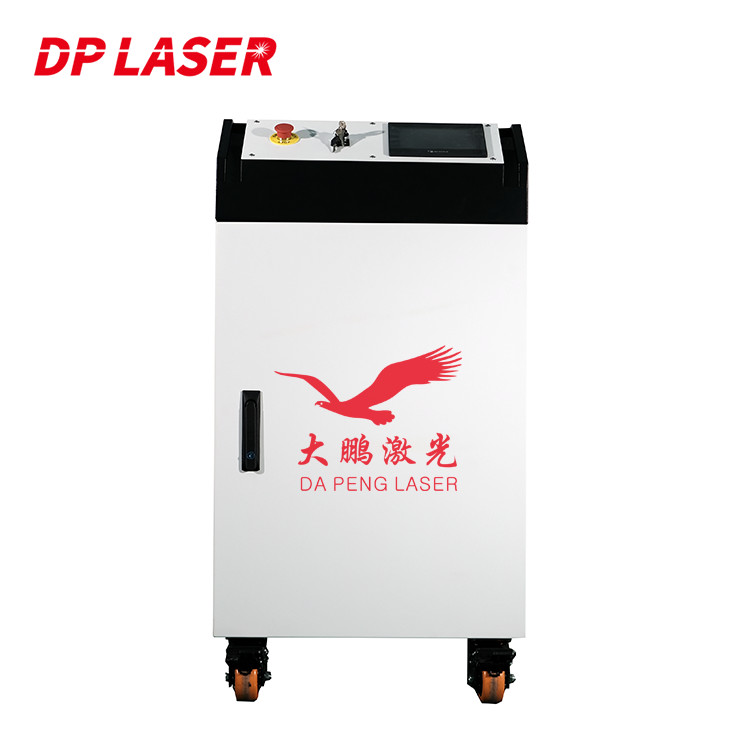

Raycus IPG Pulse Laser Source 500W 1000W Handheld Fiber Laser Cleaning Machine
Basic introduction
Laser cleaning equipment is a new generation of high-tech products for surface cleaning. Easy to install, operate and automate. Simple operation, turn on the power and turn on the equipment, you can clean without chemical reagents, medium, and water. It has the advantages of manually adjusting the focus, cleaning with curved surfaces, and cleaning the surface with high cleanliness. Stains, dirt, rust, coatings, plating, paint, etc.
Features
1. Non-contact cleaning, does not damage the parts matrix.
2. Precise cleaning, which can achieve selective cleaning of precise location and precise size.
3. No chemical cleaning solution, no consumables, safe and environmentally friendly.
4. The operation is simple, just power on, and it can be hand-held or cooperated with a manipulator to realize automatic cleaning.
5. The cleaning efficiency is very high, saving time.
6. The laser cleaning system is stable and requires almost no maintenance.
Application industry
It is mainly used for laser cleaning and surface laser pretreatment of metal surfaces such as precision molds, metal products, ships, automobiles, medical equipment, sheet metal/spraying, etc.
| Laser Power | 500W | 1000W |
| Laser Source | Raycus/IPG | Raycus/IPG |
| Central Wavelength | 1064±5 | 1064±5 |
| Power Regulation Range | 10-100 | 10-100 |
| Outpit Power Instability | ≤5 | ≤5 |
| Pulse Length | 60-160 | 60-160 |
| Maximum Monopulse Energy | 30 | 50 |
| Fiber Length | 10m | 15m |
| Laser Protection Class | 4 | 4 |
| Cooling Type | Water Cooling | Water Cooling |
| Dimensions | 830*1270*1520mm | 830*1270*1520mm |
| Cleaning Performance Parameters | |||||
| Based material | Surface | Effective focal length | Standard cleaning efficiency | High cleaning efficiency | Result |
| Cast iron | Heavy rust 0.08mm | >35mm | 2000mm/m | 3000mm/m | Clean, no harm for base material |
| Mild steel | Middle rust 0.5mm | >45mm | 1800mm/m | 2400mm/m | Clean, no harm for base material |
| Stainless steel | Oil, light rust | >50mm | 2000mm/m | 3000mm/m | Clean, no harm for base material |
| Mould gear | Middle oil with scrap iron | >45mm | 2000mm/m | 2300mm/m | Clean, no harm for base material |
| Aluminum | oxide | >35mm | 2000mm/m | 2300mm/m | Clean, no harm for base material |
DP Laser cleaning machine has advanced technology, with humanized design, small size, flexible operation, low energy consumption, environmental protection and other characteristics, with certain practicability and operability. Customers can preset the cleaning mode through the software, and can directly switch the mode to operate without adjusting the parameters, and start cleaning without chemical reagents, media, dust and water. Through automatic focusing, cleaning the surface of the object, and removing resin, stains, corrosion, coatings, paints, etc. on the surface of the object, the cleanliness is high.
