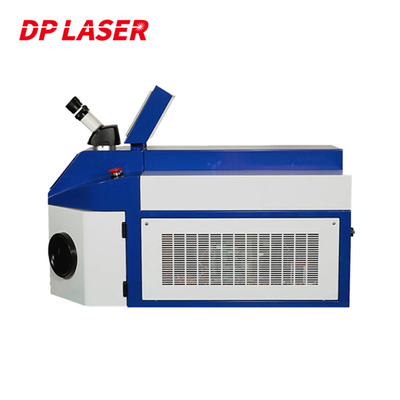

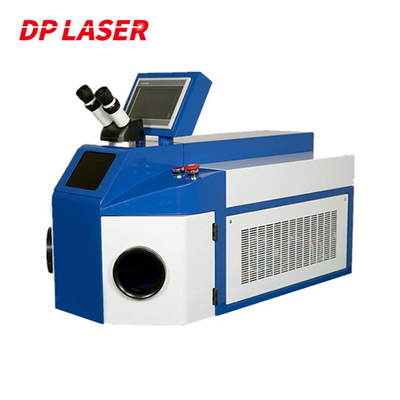

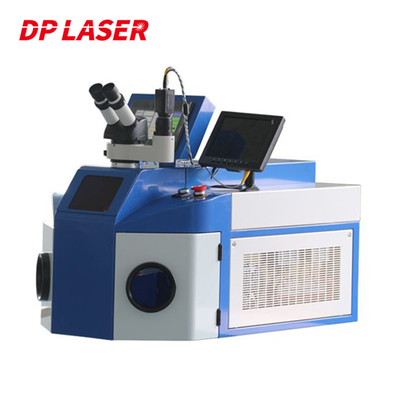

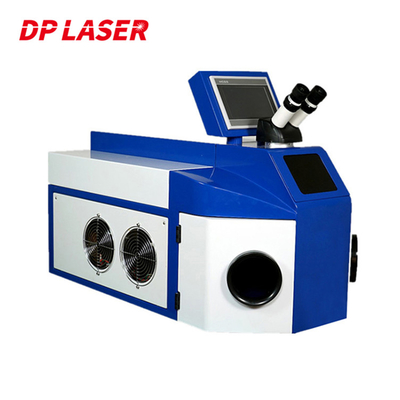

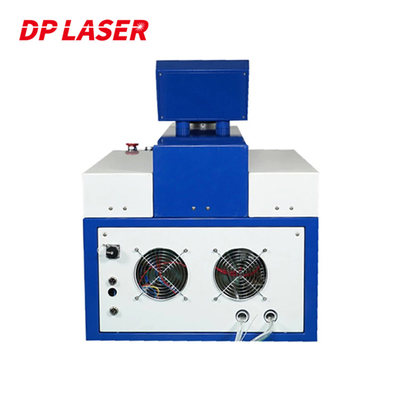

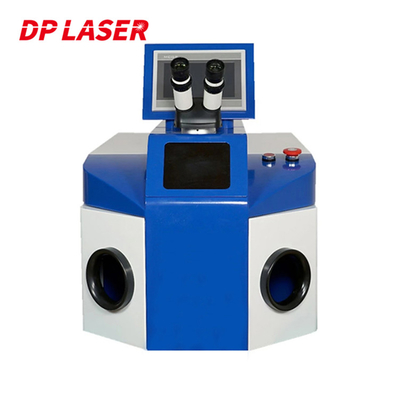

100W YAG Jewelry Laser Welding Machine Desktop Portable Mini Type

  • 100W YAG Jewelry Laser Welding Machine Desktop Portable Mini Type
  • 100W YAG Jewelry Laser Welding Machine Desktop Portable Mini Type
  • 100W YAG Jewelry Laser Welding Machine Desktop Portable Mini Type
  • 100W YAG Jewelry Laser Welding Machine Desktop Portable Mini Type
  • 100W YAG Jewelry Laser Welding Machine Desktop Portable Mini Type
  • 100W YAG Jewelry Laser Welding Machine Desktop Portable Mini Type
Place of Origin China
Brand Name DP LASER
Certification CE SGS FDA TUV ROHS
Model Number Laser Welding Machine
Minimum Order Quantity 1 Set
Price Please contact us
Packaging Details Wooden boxes that meet international export standards
Delivery Time 7-15 Work Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 300 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Laser Power 100W Laser Type Nd:YAG
Power Supply 110V/220V Single Pulse Energy 80J
Pulse Width 0.1-20ms Laser Wavelength 1064nm
Application Material Gold Silver Platinum Copper Weight (KG) 100 KG
After-sales Service Provided Overseas Engineers Provide Door-to-door Service
High Light

100W Jewelry Laser Welding Machine

,

YAG Jewelry Laser Welding Machine

,

Jewelry Point Laser Welding Machine
Leave a Message
Product Description

100W YAG Jewelry Point Laser Welding Machine Desktop Portable Mini Type



Basic introduction

Laser jewelry spot welding machine, using laser deposition welding, with laser high heat energy and centralized fixed-point welding technology, the surface heat diffuses to the inside through conduction, and the workpiece is melted by controlling parameters such as the width, energy, peak power and repetition frequency of the laser pulse. , forming a specific molten pool. Due to its unique advantages, it is widely used in gold and silver jewelry processing and welding of tiny and small parts.



Features

High speed, high efficiency, large depth, small deformation, small heat affected zone, high welding quality, no pollution of solder joints, high efficiency and environmental protection.



Applicable Industries

Commonly used for welding and repairing gold and silver jewelry, golf heads, electronic components, spot welding trachoma, welding inlays, stainless steel, titanium alloy decorations, and precision casting products. It is widely used in jewelry, electronics, clocks and other industries. 100W YAG Jewelry Laser Welding Machine Desktop Portable Mini Type 0

100W YAG Jewelry Laser Welding Machine Desktop Portable Mini Type 1

100W YAG Jewelry Laser Welding Machine Desktop Portable Mini Type 2

Model DPH-100SS-YAG-W
Laser wavelength 1064nm
Condenser reflector Imported ceramic condensing cavity
Maximum laser power 100W
Voltage 220V single-phase (Voltage transformer is needed if for 110v)
Pulse width 0.1-15ms
Laser frequency 0-50Hz
Spot adjustment range 0.2-2mm
Cooling system Air cooling
Rated power 4KW
Packaging size(mm) 550*860*1100mm
Gross weight(kg) 100
Usage environment temperature 10-30℃

100W YAG Jewelry Laser Welding Machine Desktop Portable Mini Type 3

100W YAG Jewelry Laser Welding Machine Desktop Portable Mini Type 4

100W YAG Jewelry Laser Welding Machine Desktop Portable Mini Type 5
